Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork SunTour XCR 34
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061, 120mm Travel
Suspension Fork
SR-Suntour XCR-34 AIR, 130mm Travel
Rear Shock
X-Fusion 02 Pro R, 120mm Travel
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle 12 speed
Cassette
SRAM PG-1210 Eagle, 11-50T
Crank
SRAM SX Eagle 30T
Bottom Bracket
Truvativ PowerSpline
Chain
SRAM SX Eagle
Pedals
VP Flat Nylon
Wheels
Front Hub
Alloy 15x110mm Boost
Rear Hub
Alloy,12x148mm Boost, 32H
Rims
WTB STP i29 TCS
Tires
Goodyear Escape 2.6"
Brakes
Brakes
Tektro HD-M275, Hydraulic, 180mm
Cockpit
Stem
6061 Alloy, 50mm, 35mm bore
Handlebar
TranzX 6061 DB, 780mm
Grips
VP lock on
Headset
Sealed Cartridge Bearing
Seat
Saddle
Norco XC
Seatpost
TranzX YSP18 130mm dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Front Center | 671 mm | 705 mm | 739 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 114 mm | 114 mm | 114 mm |
| Stack | 572 mm | 581 mm | 591 mm |
| Reach | 384 mm | 414 mm | 444 mm |
| Top Tube Length | 526 mm | 558 mm | 590 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 390 mm | 420 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1105 mm | 1139 mm | 1173 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm |
| Standover Height | 644 mm | 658 mm | 668 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |

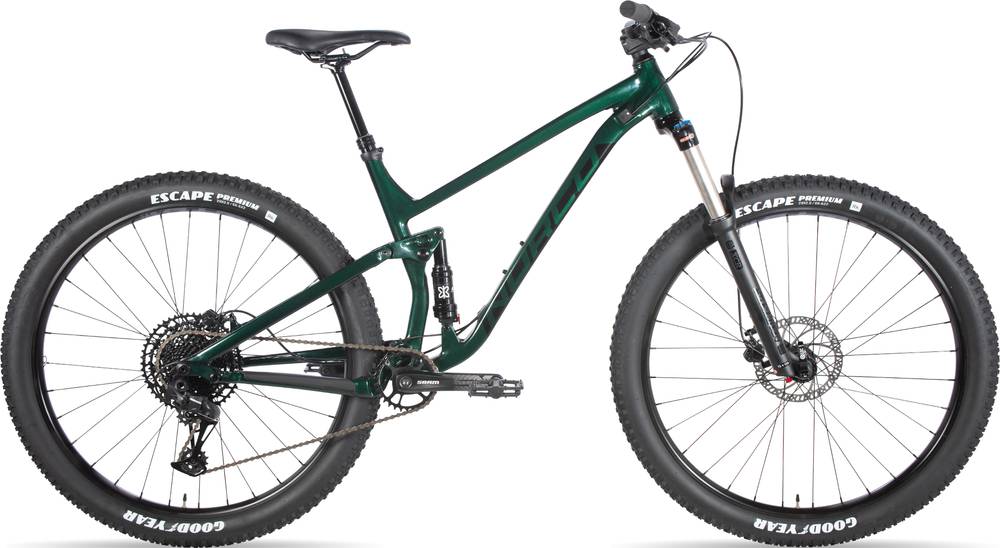

About this model
Fluid FS 3 27.5 belongs to the Norco Fluid Fs model. Norco released 111 bikes variations of this model so far. You can easily view all of the Norco Fluid Fs bikes models from 2020, here.
Model range prices
The most economical model, the Norco Fluid FS 2 20 2020 has a starting price of 1599$. Norco Fluid FS 1 27.5 2020 on the other hand is the most expensive at 2799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 1799$. Comparing this to the average Trail bike price, we see that the price is 53.53% smaller.
Overview of components
Fork
The fork installed on this bike is the SunTour XCR 34 model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the X-Fusion 02 Pro R rear shock model, which has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Fluid FS 3 27.5 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Fluid FS 3 27.5 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Norco Fluid FS 3 27.5 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
