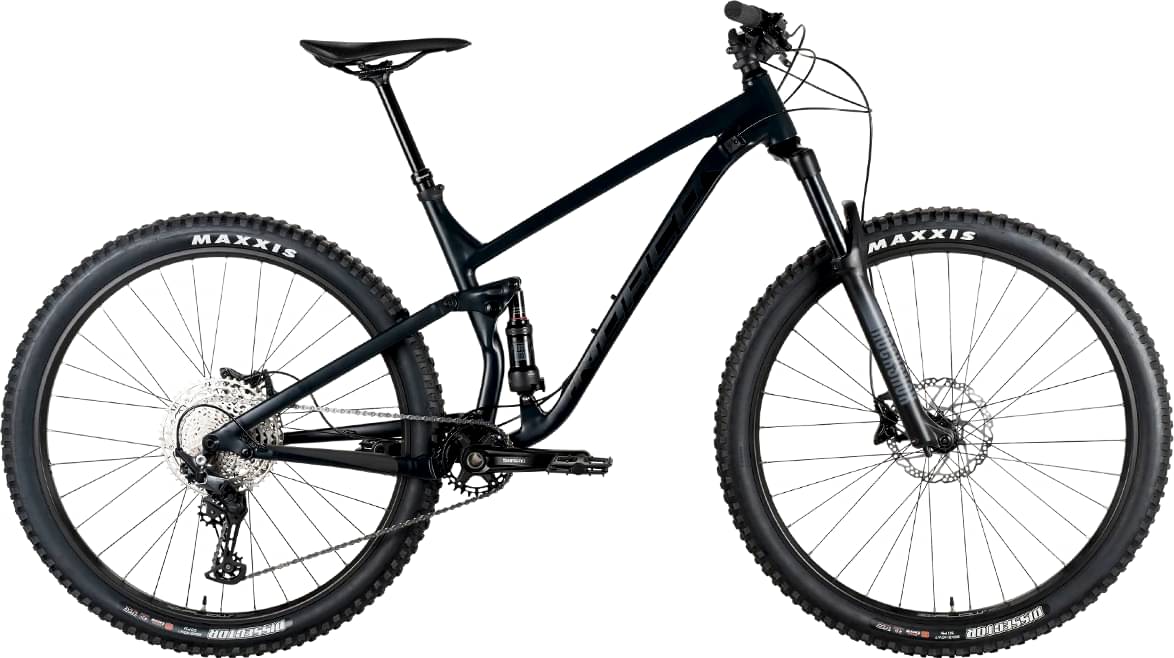

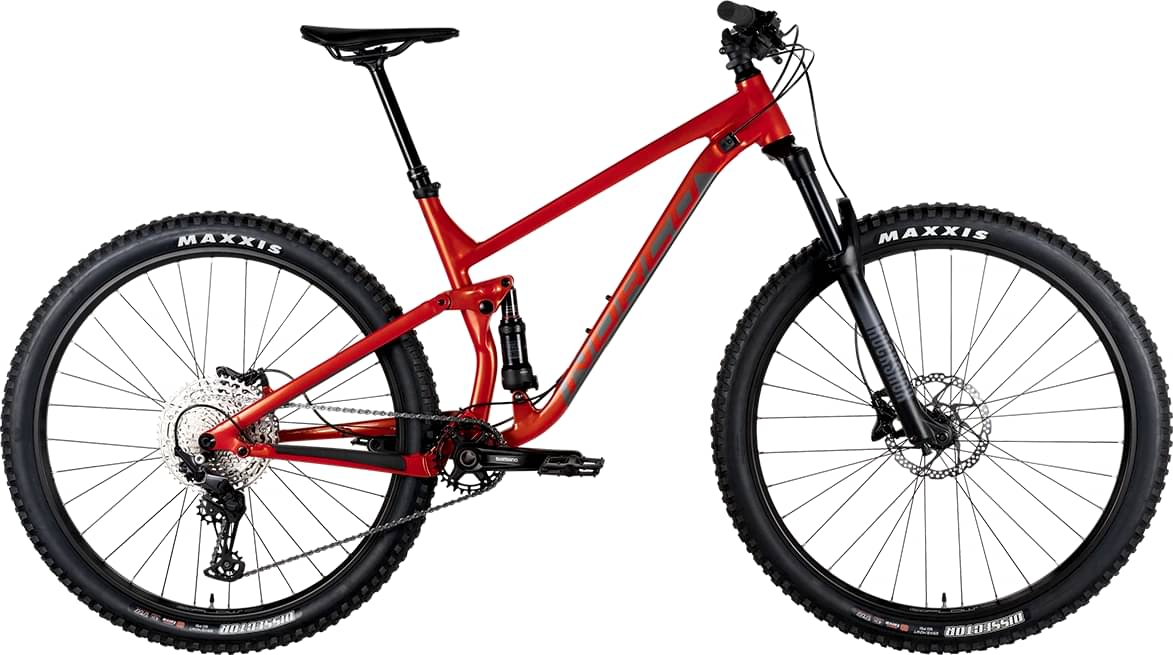

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
146cm - 157cm
SM
154cm - 166cm
MD
163cm - 174cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Trail, 120mm Travel, 27.5" and 29" Options, UDH
Suspension Fork
RockShox 35 Silver R, 130mm Travel, 46mm Offset (27.5), 51mm Offset (29)
Rear Shock
Rockshox Deluxe Select, 190x42.5mm (27.5), 190x45mm (29)
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100
Shift Levers
Shimano Deore SL-M6100-R I-Spec EV
Cassette
Shimano Deore CS-M6100-12, 10-51T, 12 Speed
Crank
Shimano Deore FC-MT510-1, 32T, 170mm (XXS - S), 175mm (M - XL)
Bottom Bracket
Shimano Cartridge Bearing, BSA Threaded
Chain
Shimano Deore CN-M6100
Pedals
VP Nylon Flat
Wheels
Front Hub
Shimano HB-MT400-B, 15x110mm Boost, Center Lock
Rear Hub
Shimano FH-MT510-B, 12x148mm Boost, Micro Spline, Center Lock
Rims
Stan's Flow D, 32H
Tires
Maxxis Dissector 2.4" 3C/EXO/TR
Brakes
Brakes
Front: Shimano BR-MT420, 4 Piston, Organic Pads, Rear: Shimano BR-MT420, 4 Piston, Organic Pads
Brake Levers
Shimano BR-MT420
Cockpit
Stem
6061 Alloy, 50mm Length, 35mm Clamp
Handlebar
TranzX 6061 Butted Alloy, 780mm, 20mm Rise
Grips
VP Lock-On
Headset
Sealed Bearing, Tapered
Seat
Saddle
Norco XC
Seatpost
X-Fusion Manic Dropper, 31.6mm, 125mm (s), 150mm (M), 170mm (L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Front Center | 671 mm | 705 mm | 739 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 114 mm | 114 mm | 114 mm |
| Stack | 572 mm | 581 mm | 591 mm |
| Reach | 384 mm | 414 mm | 444 mm |
| Top Tube Length | 526 mm | 558 mm | 590 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 390 mm | 420 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1105 mm | 1139 mm | 1173 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm |
| Standover Height | 644 mm | 658 mm | 668 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 146 cm | 154 cm | 163 cm |
| Rider Max Height | 157 cm | 166 cm | 174 cm |
About this model
Fluid FS A2 27.5 belongs to the Norco Fluid Fs model. Norco released 117 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Norco Fluid FS A3 29 2021 is the cheapest bike model and costs 2011$. Norco Fluid FS 1 27.5 2021 is the most expensive one and costs 3399$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 2487$. If we compare this with the average Trail bike cost we notice that the price is 11.06% smaller.
Overview of components
Fork
The Fluid FS A2 27.5 comes factory-installed with the RockShox 35 Silver fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Fluid FS A2 27.5 has a rear shock with a travel of 120mm. The model Rockshox Deluxe Select is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Fluid FS A2 27.5 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Fluid FS A2 27.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 146 cm – 174 cm (4.79 ft – 5.71 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Norco model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
