Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR 34
-
Groupset NX, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour XCR34 Air, Boost 15x110mm thru axle, LOR, DS
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM NX PG-1130, 10-42 tooth, 11-speed
Crank
Truvativ Stylo 6K, 170mm on XS/S, 175mm on M/L/XL
Bottom Bracket
Truvativ PowerSpline, threaded BSA 73mm
Chain
SRAM NX PC-1110, 11-speed
Chain Guide
None
Pedals
VP Nylon Flat, 9/16"
Wheels
Front Hub
Front: Novatec Boost 110mm x 15mm, Rear: Joytech D142TSE, 9x141mm quick release
Rear Hub
Front: Novatec Boost 110mm x 15mm, Rear: Joytech D142TSE, 9x141mm quick release
Rims
Alloy XD26, 32 hole, 30mm internal width
Spokes
Stainless steel 14g, black
Tires
WTB Ranger, 2.8"
Brakes
Brakes
Front: Tektro HD-M275, 2 piston hydraulic disc, 180mm rotor, Rear: Tektro HD-M275, 2 piston hydraulic disc, 160mm rotor
Brake Levers
Tektro HD-M275
Cockpit
Stem
Alloy, 60mm x 31.8mm
Handlebar
X6 Alloy, 750mm x 31.8mm
Grips
VP, Lock-on
Headset
Angular sealed cartridge bearings
Seat
Saddle
Norco XC
Seatpost
TranzX YSP18JL Stealth dropper, 120mm (XS/S), 130mm (M/L/XL), 1x lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.49 mm | 1.44 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 316 mm | 316 mm | 316 mm |
| Stack | 595 mm | 595 mm | 608 mm | 617 mm | 627 mm |
| Reach | 375 mm | 400 mm | 422 mm | 444 mm | 466 mm |
| Top Tube Length | 552 mm | 582 mm | 612 mm | 642 mm | 672 mm |
| Seat Tube Angle | 73.5 ° | 73.1 ° | 72.7 ° | 72.3 ° | 71.9 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 417 mm | 417 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1069 mm | 1095 mm | 1139 mm | 1165 mm | 1191 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 715 mm | 714 mm | 770 mm | 781 mm | 792 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

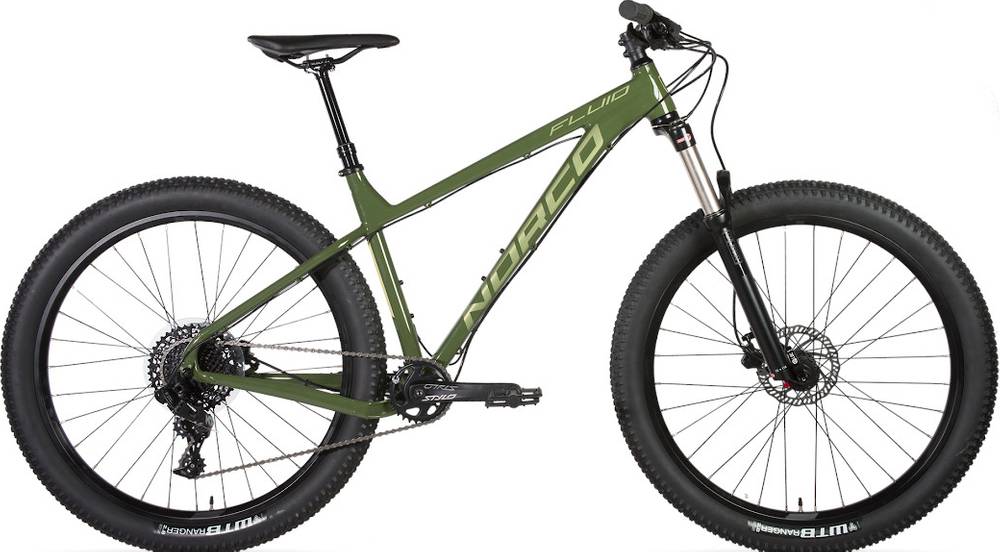

Fluid HT 2 is a Norco Fluid Ht model. There are 78 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Norco Fluid HT 4 Women 26 2019 is the cheapest bike model and costs 799$. Norco Fluid HT 1 27.5 2019 is the most expensive one and costs 1699$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1349$. If we compare this with the average Trail bike cost we notice that the price is 104.74% lower.
Overview of components
Fork
Norco Fluid HT 2 2019 bike is equipped with the SunTour XCR 34 fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Fluid HT 2 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Fluid HT 2 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Fluid HT 2. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
