Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 60mm -
Fork Suntour X1
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
20"
115cm - 129cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Fluid HT+ 20", Aluminum, 9x135mm QR Dropouts
Suspension Fork
SR Suntour XCT JR 20, 60mm Travel, 9x110mm QR
Drivetrain
Rear Derailleur
Shimano Altus RD-M310, 8 Speed
Shift Levers
Shimano Altus, RevoShift, 8 Speed
Cassette
Shimano Altus CS-HG31, 11-34T, 8 Speed
Crank
3-Piece, 152mm, Narrow/Wide Chainring 28T
Bottom Bracket
Sealed Cartridge BB, Threaded BSA 73mm
Chain
KMC Z7, 8 Speed
Pedals
VP Alloy Flat Jr. BMX
Wheels
Front Hub
Alloy disc w/15mm boost 110mm
Rear Hub
Alloy Disc Hub, 10x135mm
Rims
Alloy 20" 36mm inner - Black
Tires
Chaoyang MTB, 24x2.6"
Brakes
Brakes
Front: Tektro HD-M286, Hydraulic Disc, 160mm Rotor, Rear: Tektro HD-M286, Hydraulic Disc, 160mm Rotor
Brake Levers
Tektro HD-M286, Short Reach Levers
Cockpit
Stem
Norco Alloy 35mm - Black
Handlebar
Norco Jr. Bar 600mm, 15mm rise - Black
Grips
Norco Jr.
Headset
FSA No. 10P w/15mm conical spacer - Black
Seat
Saddle
Norco Jr. MTB Saddle 20" - Black
Seatpost
Norco Alloy, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" |
|---|---|
| Stack Reach Ratio | 1.48 mm |
| Bottom Bracket Height | 255 mm |
| Front Center | 511 mm |
| Rake | 40 mm |
| Stack | 436 mm |
| Reach | 294 mm |
| Top Tube Length | 456 mm |
| Seat Tube Angle | 70 ° |
| Seat Tube Length | 255 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 329 mm |
| Wheelbase | 840 mm |
| Bottom Bracket Drop | 15 mm |
| Standover Height | 568 mm |
| Wheels | 20" |
| Rider Min Height | 115 cm |
| Rider Max Height | 129 cm |
About this model

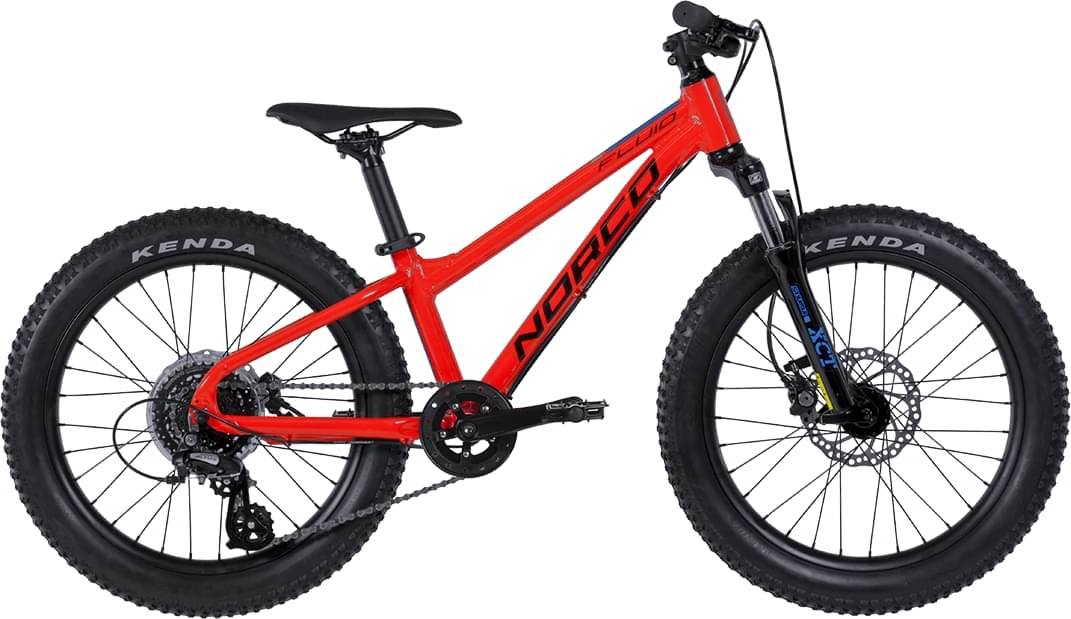

Fluid HT+ 2.3 is a Norco Fluid Ht model. 78 bikes variations carry this model name so far. You can easily view all of the Norco Fluid Ht bikes models from 2022, here.
Model range prices
Norco Fluid HT 20.2 2022 is the most affordable bike of this model and has a price of 599$. On the other hand, Norco Fluid HT 1 27.5 2022, is the most expensive and costs 1749$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Mountain bikes
If you want to purchase a solid Mountain bike, it is important to know that the average cost is 616$. However, even if your budget is less than the average, you might still be able to get a top-quality Mountain bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Norco Fluid HT+ 2.3 price was 729$. Doing a quick comparison, we notice that Fluid HT+ 2.3 price is 18.34% higher than the average cost of a Mountain bike.
Fluid HT+ 2.3 components
Fork
The Fluid HT+ 2.3 comes factory-installed with the Suntour X1 fork. This has a travel range of 60mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Fluid HT+ 2.3 model has 20″ aluminum wheels. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Norco Fluid HT+ 2.3 2022 is available in one size only. In short, make sure you double-check if it fits you.
