Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Performance Elite Float 34
-
Groupset GX, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Optic Carbon 110mm (29), 120mm (650B) w/carbon seatstay
Suspension Fork
Fox Performance Elite 34 Float, boost, 120mm (29), 130mm (650B)
Rear Shock
Fox Performance Elite Float DPS SV / EVOL
Drivetrain
Rear Derailleur
SRAM Eagle GX
Front Derailleur
N/A
Shift Levers
SRAM Eagle GX1 12 speed
Cassette
SRAM Eagle GX 1275 10-50T
Crank
SRAM/Truvativ Stylo 6K Eagle Boost crank w/32T (29), 34T (650B)
Bottom Bracket
SRAM GXP Pressfit BB 92
Chain
SRAM PC 12 speed chain
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT 350 110x15 sealed bearing disc hub
Rear Hub
DT 350 148x12 Boost sealed w/XD driver
Rims
Race Face AR 27 w/27mm inner
Spokes
DT Swiss
Tires
Maxxis Forecaster 2.35 3C/EXO/TR
Brakes
Brakes
SRAM Level TL w/180mm rotor
Brake Levers
SRAM Level TL
Cockpit
Stem
Race Face Turbine Basic 50mm (29), 60mm (650B)
Handlebar
Race Face Turbine R 800mmx20mm rise
Grips
Ergon GA 30 lock up
Headset
FSA No 42 ACB 1.5" to 1-1/8"
Seat
Saddle
SDG Duster
Seatpost
Rockshox Reverb Stealth w/new lever, 100mm SM, 125mm M, 150mm L/XL, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm |
| Bottom Bracket Height | 334 mm | 334 mm |
| Front Center | 660 mm | 687 mm |
| Rake | 44 mm | 44 mm |
| Trail | 104 mm | 104 mm |
| Stack | 572 mm | 581 mm |
| Reach | 385 mm | 407 mm |
| Top Tube Length | 529 mm | 559 mm |
| Seat Tube Angle | 75.9 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 410 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 97 mm | 107 mm |
| Chainstay Length | 417 mm | 422 mm |
| Wheelbase | 1077 mm | 1108 mm |
| Bottom Bracket Drop | 18 mm | 18 mm |
| Standover Height | 747 mm | 747 mm |
| Front Travel | 130 mm | 130 mm |
| Rear Travel | 120 mm | 120 mm |
| Wheels | 29" | 29" |
About this model

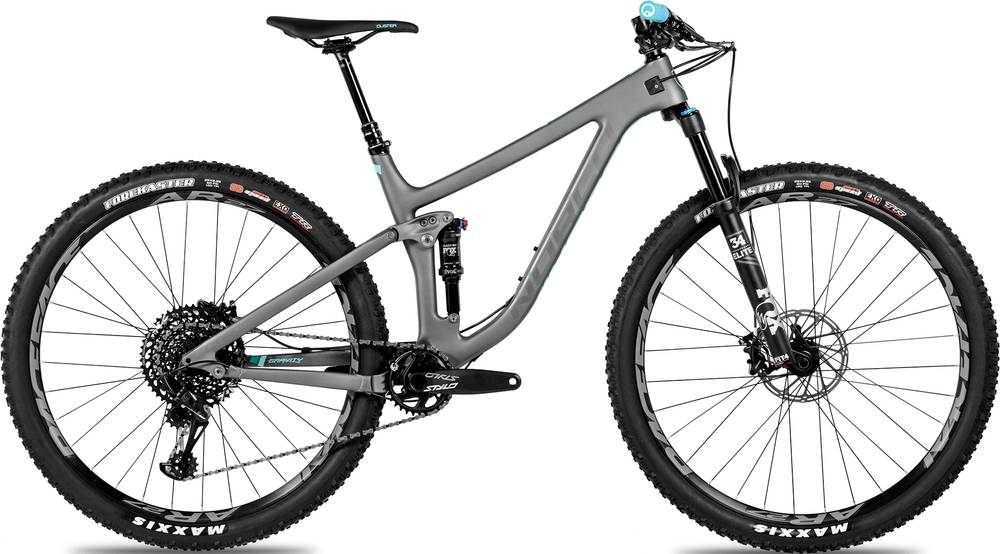

Optic C2 27.5 is a Norco Optic model. Norco released 96 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Norco Optic A3 Womens 27.5 2018 is the most affordable bike of this model and has a price of 2299$. On the other hand, Norco Optic C1 29 2018, is the most expensive and costs 6999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4999$. In conclusion, this bike price is 162.41% more expensive than the price of the average Crosscountry bike.
Optic C2 27.5 components
Fork
Norco Optic C2 27.5 2018 bike is equipped with the Fox Performance Elite Float 34 fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Norco Optic C2 27.5 bike has the Fox Performance Elite Float DPS SV / EVOL model installed, and has a travel of 110mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Optic C2 27.5 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
