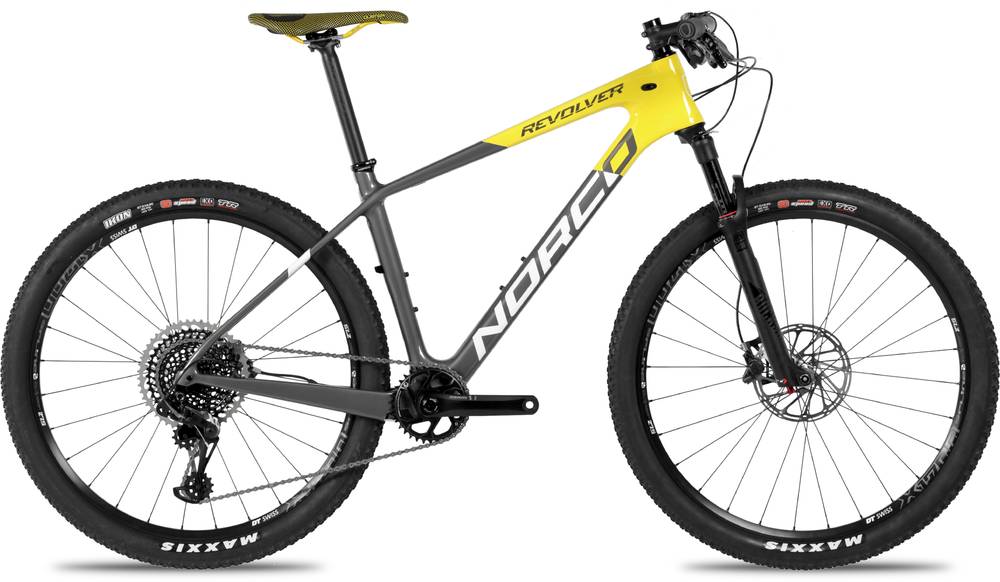

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset X01, SRAM -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revolver XC Mid-Modulus Carbon 27.5 HT Frame
Suspension Fork
Rock Shox Sid RLC 27.5" 100mm/15mm"
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X01 12spd
Front Derailleur
N/A
Shift Levers
N/A
Cassette
SRAM XG1295 10/50 12spd
Crank
SRAM X1400 12spd 34T
Bottom Bracket
SRAM PF30
Chain
SRAM X01 Eagle 12spd
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss X1700 Spline Two Wheelset
Rear Hub
DT Swiss X1700 Spline Two Wheelset
Rims
DT Swiss
Tires
Maxxis Ikon 27.5"x2.20 3C/TR/EXO"
Brakes
Brakes
SRAM Level TLM 180mm
Brake Levers
SRAM Level TLM
Disk Rotors
N/A
Cockpit
Stem
Norco SL Alloy Stem
Handlebar
Norco DB Lite 720mm Flat Top Bar
Grips
Norco Lock On Grip
Headset
Angular Sealed Cartridge Bearings - Tapered
Seat
Saddle
SDG Duster RL
Seatpost
Norco SL Alloy Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.52 mm | 1.48 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 621 mm | 644 mm | 666 mm | 688 mm | 710 mm |
| Rake | 41 mm | 42 mm | 43 mm | 42 mm | 43 mm |
| Trail | 89 mm | 86 mm | 84 mm | 83 mm | 80 mm |
| Stack | 585 mm | 600 mm | 615 mm | 630 mm | 646 mm |
| Reach | 376 mm | 396 mm | 415 mm | 435 mm | 454 mm |
| Top Tube Length | 543 mm | 570 mm | 597 mm | 624 mm | 651 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 368 mm | 405 mm | 445 mm | 485 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.75 ° | 70 ° | 70.25 ° | 70.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 424 mm | 426 mm | 429 mm | 431 mm | 434 mm |
| Wheelbase | 1040 mm | 1066 mm | 1091 mm | 1115 mm | 1140 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Standover Height | 727 mm | 747 mm | 792 mm | 819 mm | 847 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Revolver 7.1 HT is part of the Norco Revolver model. 148 bikes variations carry this model name so far. You can easily view all of the Norco Revolver bikes models from 2017, here.
Model range prices
Norco Revolver 9.3 HT 2017 is the most affordable bike of this model and has a price of 2099$. On the other hand, Norco Revolver 7XX1 FS 2017, is the most expensive and costs 7299$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2017 for 4199$. Comparing the average cost of a Crosscountry bike to this one, you will see that Revolver 7.1 HT price is 120.42% higher.
Overview of components
Fork
The fork installed on this bike is the RockShox SID model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Revolver 7.1 HT are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revolver 7.1 HT has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
