Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Manitou
-
Groupset X5, FSA -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco XC MId-Modulus Carbon
Suspension Fork
Manitou Marvel Comp 27.5 100mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X5 10spd
Front Derailleur
SRAM X5 2spd
Shift Levers
N/A
Cassette
SRAM PG1030 11/36
Crank
FSA Comet PF30 39/27
Bottom Bracket
FSA PF30
Chain
SRAM PG1031 10spd
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
Norco Alloy QR Disc 32H
Rear Hub
Norco Alloy 142x12
Rims
Alex MD19 27.5""
Tires
Schwalbe Rapid Rob 2.25 x 27.5
Brakes
Brakes
Avid Elixir 3 160mm
Brake Levers
Avid Elixir 3
Disk Rotors
N/A
Cockpit
Stem
Norco Alloy
Handlebar
Norco Lite 700mm Flat Bar
Grips
Norco SL Silicon
Headset
FSA No.42 Tapered
Seat
Saddle
Norco XC Saddle
Seatpost
Norco Alloy 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.52 mm | 1.48 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 620.8 mm | 644 mm | 665.8 mm | 687.8 mm | 709.6 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 88 mm | 86 mm | 85 mm | 83 mm | 81 mm |
| Stack | 584.9 mm | 600 mm | 615.2 mm | 630.4 mm | 645.6 mm |
| Reach | 375.9 mm | 395.7 mm | 415.4 mm | 434.9 mm | 454.2 mm |
| Top Tube Length | 543 mm | 570 mm | 597 mm | 624 mm | 651 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 368 mm | 405 mm | 445 mm | 485 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.75 ° | 70 ° | 70.25 ° | 70.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 424 mm | 426 mm | 429 mm | 431 mm | 434 mm |
| Wheelbase | 1040 mm | 1065 mm | 1090 mm | 1115 mm | 1139 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Standover Height | 727 mm | 747 mm | 792 mm | 819 mm | 847 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

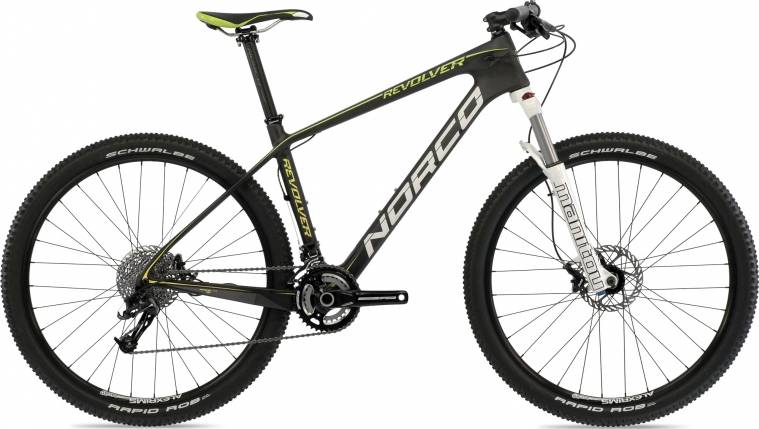

Revolver 7.2 HT belongs to the Norco Revolver model. Norco released 148 bikes variations of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Model range prices
Norco Revolver 7.2 HT 2014 is the cheapest bike model and costs 1955$. Norco Revolver 7 LE HT 2014 is the most expensive one and costs 5535$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1955$. Doing a quick comparison, we notice that Revolver 7.2 HT price is 2.62% higher than the average cost of a Crosscountry bike.
Overview of components
Fork
This bike has the Manitou fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Revolver 7.2 HT bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Revolver 7.2 HT has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
