Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XX1 -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco XC High-Mod 27.5
Suspension Fork
RockShox Sid XX Tapered 15mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM XX1
Front Derailleur
N/A
Shift Levers
N/A
Cassette
SRAM XX1 10/42
Crank
SRAM XX1 34T
Bottom Bracket
SRAM XX1 PF30
Chain
SRAM XX1
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
Kore Durox 15mm
Rear Hub
Kore Durox 142x12
Rims
Stans ZTR Crest 27.5
Tires
Schwalbe Rocket Ron TLR 2.1 x 27.5
Brakes
Brakes
SRAM X0 160mm/Connectamajig
Brake Levers
SRAM XO
Disk Rotors
N/A
Cockpit
Stem
Easton EA70 Alloy
Handlebar
Easton EC70 Carbon Lo Riser 720mm
Grips
Norco SL Silicon
Headset
FSA No.42ACB w/8mm Alloy spacer
Seat
Saddle
Prologo Zero II TiRox
Seatpost
Easton EC90 Carbon 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.52 mm | 1.48 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 620.8 mm | 644 mm | 665.8 mm | 687.8 mm | 709.6 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 88 mm | 86 mm | 85 mm | 83 mm | 81 mm |
| Stack | 584.9 mm | 600 mm | 615.2 mm | 630.4 mm | 645.6 mm |
| Reach | 375.9 mm | 395.7 mm | 415.4 mm | 434.9 mm | 454.2 mm |
| Top Tube Length | 543 mm | 570 mm | 597 mm | 624 mm | 651 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 368 mm | 405 mm | 445 mm | 485 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.75 ° | 70 ° | 70.25 ° | 70.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 424 mm | 426 mm | 429 mm | 431 mm | 434 mm |
| Wheelbase | 1040 mm | 1065 mm | 1090 mm | 1115 mm | 1139 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Standover Height | 727 mm | 747 mm | 792 mm | 819 mm | 847 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

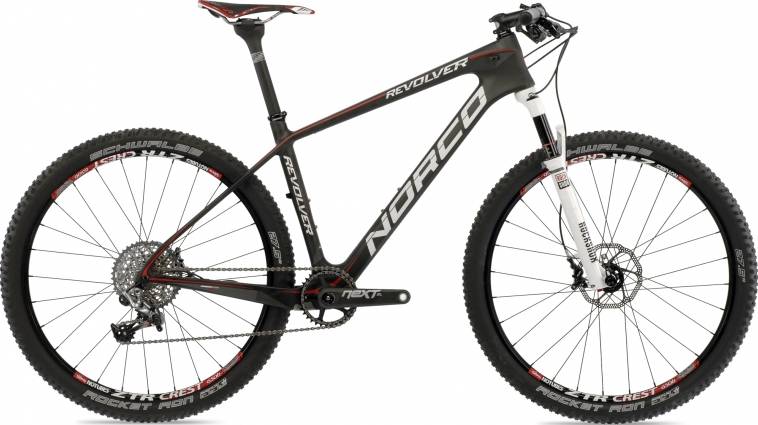

About this model
Revolver 7 LE HT is a Norco Revolver model. Norco released 148 bikes variations of this model so far. You can easily view all of the Norco Revolver bikes models from 2014, here.
Model range prices
Norco Revolver 7.2 HT 2014 is the most affordable bike of this model and has a price of 1955$. On the other hand, Norco Revolver 7 LE HT 2014, is the most expensive and costs 5535$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5535$. Comparing the average cost of a Crosscountry bike to this one, you will see that Revolver 7 LE HT price is 190.55% more expensive.
Revolver 7 LE HT components
Fork
Norco Revolver 7 LE HT 2014 bike is equipped with the RockShox SID fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The Revolver 7 LE HT 2014 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Revolver 7 LE HT is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
