Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset X1, X01 -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco XC Mid-Mod 29
Suspension Fork
RockShox Sid RLT 29" 100mm/15mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X1 11spd
Front Derailleur
N/A
Shift Levers
Jagwire
Cassette
SRAM XG1175 10/42 11spd
Crank
SRAM X01 DM Carbon 1x11 32T
Bottom Bracket
SRAM PF30
Chain
SRAM PC-1130 11spd
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss X1700 Spline Two Wheelset
Rear Hub
DT Swiss X1700 Spline Two Wheelset
Rims
DT Swiss
Tires
N/A
Brakes
Brakes
SRAM Guide RS 160mm
Brake Levers
SRAM Guide RS
Disk Rotors
N/A
Cockpit
Stem
Norco SL Alloy Stem
Handlebar
Norco DB Lite 720mm Flat Bar
Grips
Norco SL Silicon
Headset
Feimin Sealed Internal H/S
Seat
Saddle
SDG Circuit MTN Chromo Rail
Seatpost
Norco SL Alloy Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.47 mm | 1.44 mm | 1.41 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm | 303 mm |
| Front Center | 638.1 mm | 659.4 mm | 681.4 mm | 704.1 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 86 mm | 84 mm | 82 mm | 80 mm |
| Stack | 616.1 mm | 617.2 mm | 632.4 mm | 647.7 mm |
| Reach | 394.9 mm | 418.7 mm | 438.2 mm | 458.5 mm |
| Top Tube Length | 573 mm | 600 mm | 627 mm | 655 mm |
| Seat Tube Angle | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 405 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70.25 ° | 70.5 ° | 70.75 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 440 mm | 442 mm | 445 mm | 447 mm |
| Wheelbase | 1069 mm | 1093 mm | 1118 mm | 1143 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 750 mm | 790 mm | 817 mm | 846 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

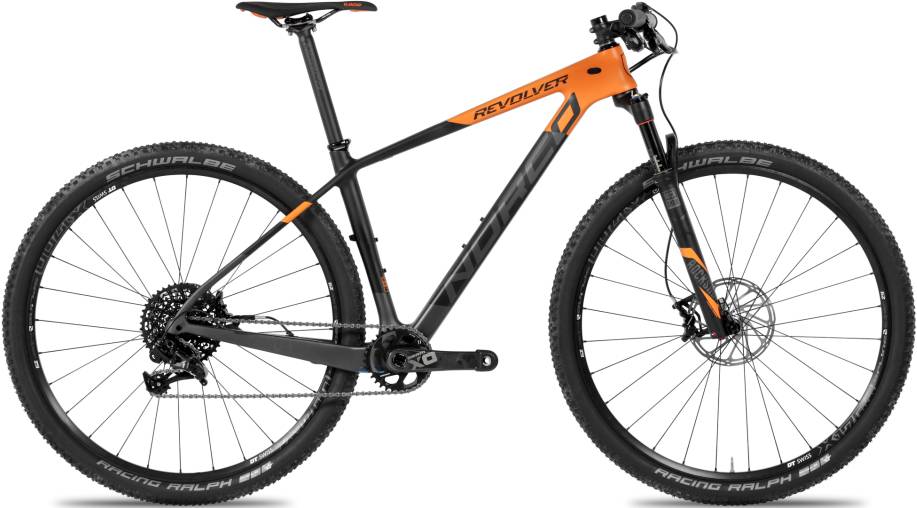

Revolver 9.1 is a Norco Revolver model. There are 148 bikes that carry this model name. You can get a glimpse at all models from 2016, by clicking on this link.
Model range prices
Norco Revolver 9.3 2016 is the cheapest bike model and costs 2075$. Norco Revolver 7XX 2016 is the most expensive one and costs 7415$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2016 and its price was 4095$. Comparing this to the average Crosscountry bike price, we see that the price is 114.96% more expensive.
Revolver 9.1 components
Fork
Norco Revolver 9.1 2016 bike is equipped with the RockShox SID fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Revolver 9.1 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Revolver 9.1 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
