Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox Recon Silver TK
-
Groupset GX, SRAM -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revolver Carbon 9.3 FS high modulus frame, 100mm travel
Suspension Fork
Rockshox Recon Silver TK 29 solo air 100mmx15
Rear Shock
Rockshox Monarch RL
Drivetrain
Rear Derailleur
SRAM GX 11spd
Front Derailleur
N/A
Shift Levers
Jagwire LEX housing
Cassette
SRAM XG 1150 11spd 10-42T
Crank
SRAM S 1000 w/single 32T ring
Bottom Bracket
SRAM Pressfit BB 92
Chain
SRAM PC-1130 11spd
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
Alloy 15mm with 6 bolt disc mount
Rear Hub
Alloy 142x12 with XD driver, 6 bolt disc
Rims
Alex DP21 Tubeless Ready 29er rim
Tires
N/A
Brakes
Brakes
Shimano M355 Hydraulic disc
Brake Levers
Shimano M355
Disk Rotors
Shimano 180mm front/160mm rear
Cockpit
Stem
Norco Alloy 3D forged stem 7 degree
Handlebar
Norco 6061 DB alloy 740 w/10mm rise
Grips
Norco SL Silicon 130mm
Headset
PT 1860A sealed bearing internal w/8mm cover
Seat
Saddle
SDG Circuit Mtn XC steel rail
Seatpost
Norco alloy w/ double bolt head 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 666 mm | 687 mm | 710 mm | 732 mm |
| Rake | 51 mm | 52 mm | 50 mm | 52 mm |
| Trail | 73 mm | 71 mm | 71 mm | 67 mm |
| Stack | 575 mm | 576 mm | 587 mm | 597 mm |
| Reach | 408 mm | 432 mm | 454 mm | 475 mm |
| Top Tube Length | 567 mm | 594 mm | 621 mm | 648 mm |
| Seat Tube Angle | 74.75 ° | 74.5 ° | 74.25 ° | 74 ° |
| Seat Tube Length | 410 mm | 445 mm | 485 mm | 530 mm |
| Head Tube Angle | 70.25 ° | 70.5 ° | 70.75 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 430 mm | 432 mm | 435 mm | 437 mm |
| Wheelbase | 1093 mm | 1117 mm | 1142 mm | 1167 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 768 mm | 758 mm | 753 mm | 745 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

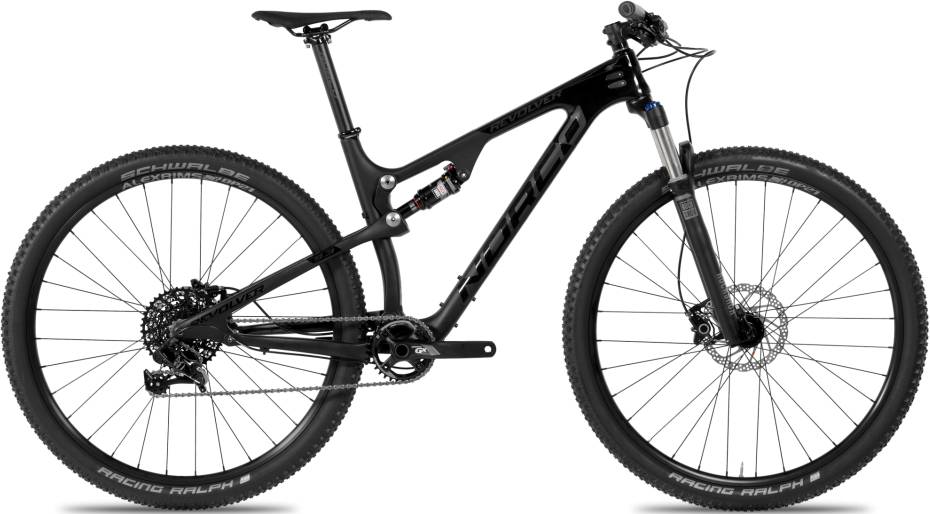

Revolver 9.3 FS is part of the Norco Revolver model. Norco released 148 bikes variations of this model so far. You can easily view all of the Norco Revolver bikes models from 2016, here.
Model range prices
Norco Revolver 9.3 2016 is the most affordable bike of this model and has a price of 2075$. On the other hand, Norco Revolver 7XX 2016, is the most expensive and costs 7415$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3050$. In conclusion, this bike price is 60.1% more expensive than the price of the average Crosscountry bike.
Revolver 9.3 FS components
Fork
The fork installed on this bike is the RockShox Recon Silver TK model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Revolver 9.3 FS has a rear shock with a travel of 100mm. The model Rockshox Monarch RL is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Revolver 9.3 FS bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Revolver 9.3 FS has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
