Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revolver XC High-Modulus Carbon 29 FS Frame
Suspension Fork
RockShox Sid World Cup 29" 100mm/15mm"
Rear Shock
Rock Shox Monarch RL 100mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle 12spd
Front Derailleur
N/A
Shift Levers
N/A
Cassette
SRAM XG1295 10/50 12spd
Crank
SRAM XX1 Eagle 34T 12spd
Bottom Bracket
SRAM PF BB92
Chain
SRAM PC-XX1 12spd Gold
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss XRC 1200 Spline Wheelset
Rear Hub
DT Swiss XRC 1200 Spline Wheelset
Rims
DT Swiss
Tires
Maxxis Ikon 29"x2.20 3C/TR/EXO"
Brakes
Brakes
SRAM Level Ultimate 180mm
Brake Levers
SRAM Level Ultimate
Disk Rotors
N/A
Cockpit
Stem
Race Face Turbine 35mm
Handlebar
Race Face Next SL Carbon 740mm/10mm
Grips
Norco Lock On Grip
Headset
Angular Sealed Cartridge Bearings - Tapered
Seat
Saddle
SDG Duster RL
Seatpost
Race Face Next 30.9/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 666 mm | 687 mm | 710 mm | 732 mm |
| Rake | 51 mm | 52 mm | 50 mm | 52 mm |
| Trail | 80 mm | 77 mm | 78 mm | 74 mm |
| Stack | 575 mm | 576 mm | 587 mm | 597 mm |
| Reach | 408 mm | 432 mm | 454 mm | 475 mm |
| Top Tube Length | 567 mm | 594 mm | 621 mm | 648 mm |
| Seat Tube Angle | 74.75 ° | 74.5 ° | 74.25 ° | 74 ° |
| Seat Tube Length | 410 mm | 445 mm | 485 mm | 530 mm |
| Head Tube Angle | 70.25 ° | 70.5 ° | 70.75 ° | 71 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 430 mm | 432 mm | 435 mm | 437 mm |
| Wheelbase | 1093 mm | 1117 mm | 1142 mm | 1167 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 768 mm | 758 mm | 753 mm | 745 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

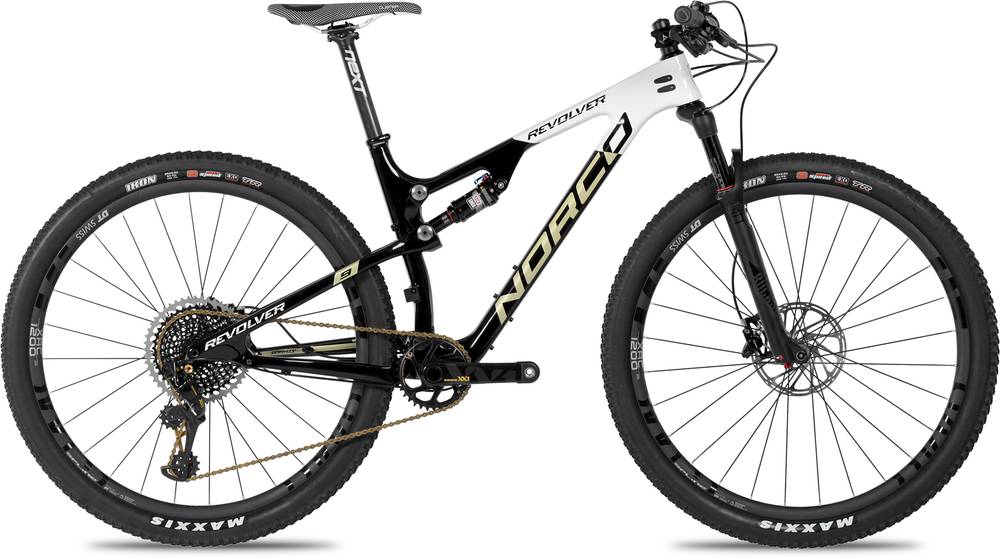

Revolver 9XX1 FS is a Norco Revolver model. Norco released 148 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
Norco Revolver 9.3 HT 2017 is the most economical model, with a starting price of 2099$. Norco Revolver 7XX1 FS 2017 on the other hand costs 7299$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Norco released this model in 2017, its price was 7299$. If we compare this with the average Crosscountry bike cost we notice that the price is 283.15% higher.
Overview of components
Fork
Norco Revolver 9XX1 FS 2017 bike is equipped with the RockShox SID fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Rock Shox Monarch RL 100mm model, with a travel of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Revolver 9XX1 FS are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revolver 9XX1 FS comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
