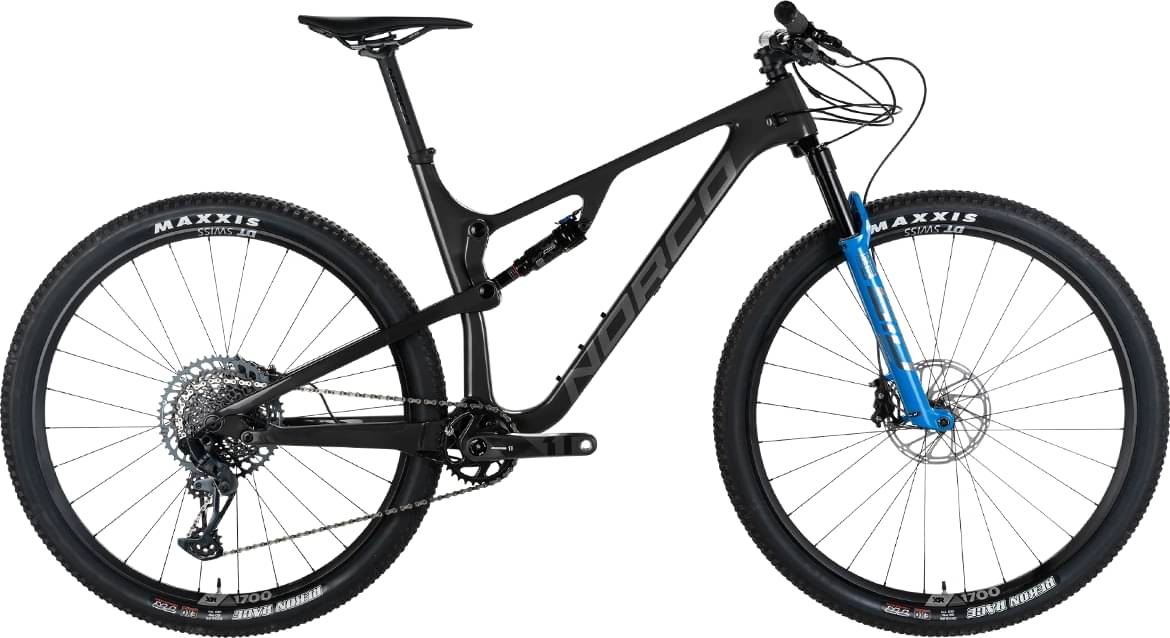

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID SL Ultimate
-
Groupset GX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hi-Mod Carbon, 100mm
Suspension Fork
RockShox SID SL Ultimate, 100mm, 44mm Offset
Rear Shock
RockShox SIDLuxe Select+ RLR, Remote, 190x37.5mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG1275 Eagle, 10-52T
Crank
SRAM X1 Eagle DUB Carbon, 32T, 170mm (S), 175mm (M, L, XL)
Bottom Bracket
SRAM BB DUB PF92
Chain
SRAM GX Eagle
Wheels
Front Hub
DT Swiss XR 1700 Spline, 15x110mm Boost, 6 Bolt
Rear Hub
DT Swiss XR 1700 Spline, 12x148mm Boost, XD, 6 Bolt
Rims
DT Swiss XR 1700 Spline 29" Wheelset
Tires
Maxxis Rekon Race 2.25" 3C/TR/EXO
Brakes
Brakes
Front: SRAM Level TLM, Organic Pads, Rear: SRAM Level TLM, Organic Pads
Brake Levers
SRAM Level TLM
Cockpit
Stem
Norco SL Alloy Stem, 60mm Length, 31.8mm Clamp
Handlebar
Butted Alloy Lite, 760mm, 15mm Rise
Grips
SRAM
Headset
FSA Internal Cartridge Bearing
Seat
Saddle
Norco SL Race, Chromo Rails, Black
Seatpost
Norco SL Alloy, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.26 mm | 1.2 mm | 1.15 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm | 333 mm |
| Front Center | 698 mm | 728 mm | 761 mm | 795 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 570 mm | 570 mm | 579 mm | 588 mm |
| Reach | 421 mm | 451 mm | 481 mm | 511 mm |
| Top Tube Length | 565 mm | 595 mm | 628 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 425 mm | 440 mm | 485 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 411 mm | 414 mm | 417 mm | 421 mm |
| Wheelbase | 1106 mm | 1139 mm | 1176 mm | 1213 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 691 mm | 699 mm | 699 mm | 708 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
About this model
Revolver FS 1 100 belongs to the Norco Revolver model. Norco launched 148 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Norco Revolver HT 3 120 2023 is the most economical model, with a starting price of 2799$. Norco Revolver FS 1 120 2023 on the other hand costs 6299$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5699$. In conclusion, this bike price is 199.16% higher than the price of the average Crosscountry bike.
Overview of components
Fork
Norco Revolver FS 1 100 2023 bike is equipped with the RockShox SID SL Ultimate fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the RockShox SIDLuxe Select+ RLR rear shock model, which has a travel of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Revolver FS 1 100 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Revolver FS 1 100 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Norco Revolver FS 1 100 bike has 4 sizes, in the range of 154 cm – 191 cm (5.05 ft – 6.27 ft). In short, you can easily find one that suits you.
