Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Select
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hi-Mod Carbon, 120mm
Suspension Fork
RockShox SID Select RL, 120mm, 44mm Offset
Rear Shock
RockShox SIDLuxe Select+, 190x45mm
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle MMX
Cassette
SRAM NX Eagle MMX
Crank
SRAM NX Eagle DUB, 32T, 170mm (S), 175mm (M, L, XL)
Bottom Bracket
SRAM BB DUB PF92
Chain
SRAM NX
Wheels
Front Hub
Bear Pawls, 15x110mm Boost, 6 Bolt
Rear Hub
Bear Pawls, 12x148mm Boost, HG, 6 Bolt
Rims
Stans Arch D 29" 32H
Tires
Maxxis Forekaster 2.35" TR/EXO
Brakes
Brakes
Front: SRAM G2 R, Organic Pads, Rear: SRAM G2 R, Organic Pads
Brake Levers
SRAM G2 R
Cockpit
Stem
6061 Alloy 60mm Length, 35mm Clamp
Handlebar
Butted 6061 Alloy, 780mm, 20mm Rise
Grips
Ergon GA20 Lock-On
Headset
FSA Internal Cartridge Bearing
Seat
Saddle
Fizik Alpaca Terra, Wingflex
Seatpost
X-Fusion Manic Dropper, 31.6mm, 125mm (S), 150mm (M, L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.32 mm | 1.25 mm | 1.2 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 699 mm | 729 mm | 763 mm | 797 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 578 mm | 578 mm | 588 mm | 598 mm |
| Reach | 409 mm | 439 mm | 469 mm | 500 mm |
| Top Tube Length | 568 mm | 598 mm | 631 mm | 663 mm |
| Seat Tube Angle | 74.9 ° | 74.9 ° | 74.9 ° | 74.9 ° |
| Seat Tube Length | 425 mm | 440 mm | 485 mm | 510 mm |
| Head Tube Angle | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 411 mm | 414 mm | 417 mm | 421 mm |
| Wheelbase | 1108 mm | 1141 mm | 1179 mm | 1216 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 700 | 707 mm | 708 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
Model Overview

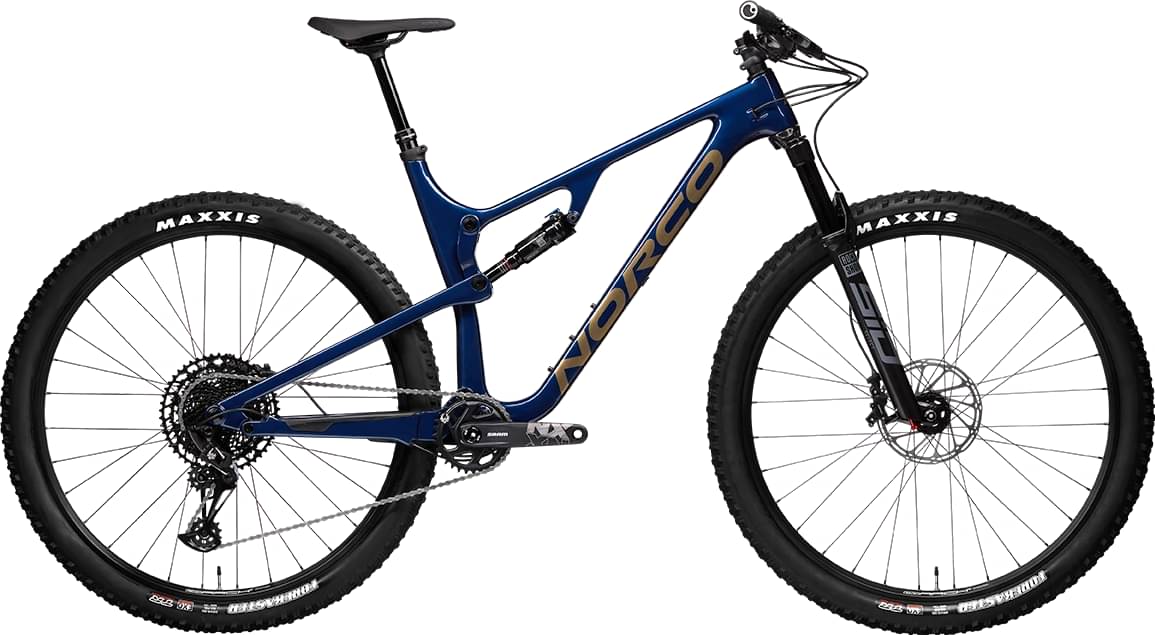

Revolver FS 2 120 is part of the Norco Revolver model. 148 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Norco Revolver HT 3 120 2023 has a starting price of 2799$. Norco Revolver FS 1 120 2023 on the other hand is the most expensive at 6299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Norco Revolver FS 2 120 price was 4899$. Doing a quick comparison, we notice that Revolver FS 2 120 price is 77.37% more expensive than the average cost of a Trail bike.
Revolver FS 2 120 components
Fork
The RockShox SID Select is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is RockShox SIDLuxe Select+, with a travel distance of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Revolver FS 2 120 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revolver FS 2 120 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 191 cm (5.05 ft – 6.27 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
