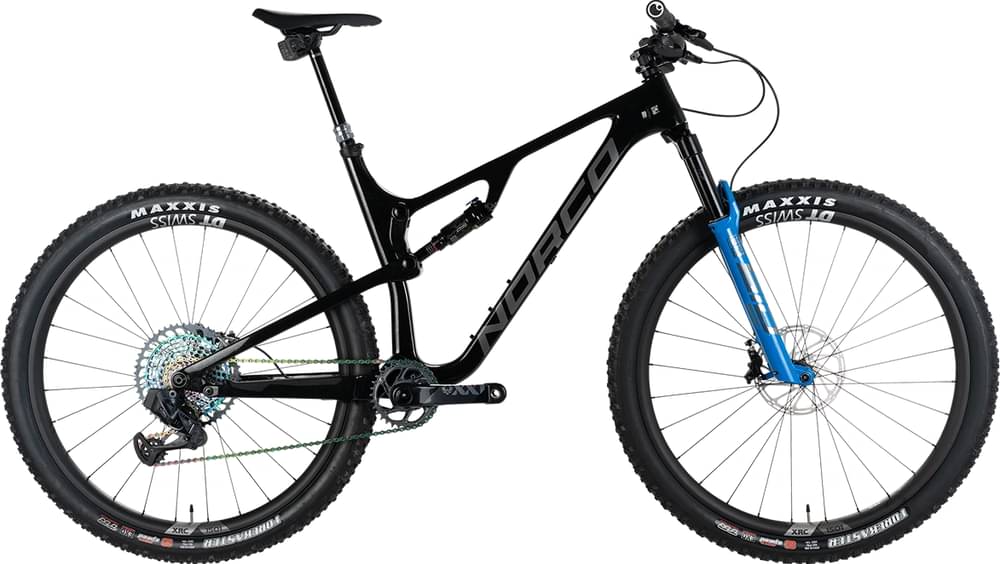

Norco Revolver FS AXS 120 2021
2021 Mountain
Estimate price |
10,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hi-Mod Carbon, 120mm, Ride Aligned™
Suspension Fork
RockShox SID Ultimate, 120mm, 44mm Offset
Rear Shock
RockShox SIDLuxe Select+, 190x45mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM Eagle AXS Controller
Cassette
SRAM XG-1299 Eagle, 10-52T, Rainbow
Crank
SRAM XX1 Eagle B148 DUB, 32T, 170mm (S), 175mm (M, L, XL)
Bottom Bracket
SRAM BB DUB PF92
Chain
SRAM XX1 Rainbow
Wheels
Front Hub
DT Swiss XRC 1501 Spline, 15x110mm Boost, 6 Bolt
Rear Hub
DT Swiss XRC 1501 Spline, 12x148mm Boost, XD, 6 Bolt
Rims
DT Swiss XRC 1501 Spline Carbon 29" Wheelset
Tires
Maxxis Forekaster 2.35" 3C/TR/EXO
Brakes
Brakes
SRAM G2 RSC, Organic Pads
Brake Levers
SRAM G2 RSC
Disk Rotors
SRAM Centerline, 180mm
Cockpit
Stem
Race Face Turbine R, 60mm Length, 35mm Clamp
Handlebar
Race Face Next R Carbon, 780mm, 20mm Rise
Grips
Ergon GA20 Lock-On
Headset
FSA Internal Cartridge Bearing
Seat
Saddle
Fizik Alpaca Terra with Wingflex
Seatpost
RockShox Reverb AXS, 125mm (S), 150mm (M, L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.32 mm | 1.25 mm | 1.2 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 699 mm | 729 mm | 763 mm | 797 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 578 mm | 578 mm | 588 mm | 598 mm |
| Reach | 409 mm | 439 mm | 469 mm | 500 mm |
| Top Tube Length | 568 mm | 598 mm | 631 mm | 663 mm |
| Seat Tube Angle | 74.8 ° | 74.9 ° | 74.9 ° | 74.9 ° |
| Seat Tube Length | 425 mm | 440 mm | 485 mm | 510 mm |
| Head Tube Angle | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 411 mm | 414 mm | 417 mm | 421 mm |
| Wheelbase | 1108 mm | 1141 mm | 1179 mm | 1216 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 700 | 707 mm | 708 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
About this model
Revolver FS AXS 120 is a Norco Revolver model. There are 148 bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Norco Revolver HT 3 120 2021 is the most affordable bike of this model and has a price of 2799$. On the other hand, Norco Revolver FS AXS 120 2021, is the most expensive and costs 10999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2021 and its price was 10999$. Comparing the average cost of a Trail bike to this one, you will see that Revolver FS AXS 120 price is 298.23% more expensive.
Overview of components
Fork
The fork installed on this bike is the RockShox SID Ultimate model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox SIDLuxe Select+ rear shock model, which has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Revolver FS AXS 120 2021 bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revolver FS AXS 120 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Revolver FS AXS 120 comes in 4 sizes, that range from 154 cm – 191 cm (5.05 ft – 6.27 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
