Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork X Fusion
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon XC Race, Ride Aligned™
Suspension Fork
X-Fusion RC32 Boost Air, 120mm, 51mm Offset
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100
Cassette
Shimano Deore CS-M5100, 11-51T, 11 Speed
Crank
Shimano Deore FC-M5100-1, 32T, 170mm (S), 175mm (M, L, XL)
Bottom Bracket
Shimano BBMT500PA PF92
Chain
KMC X11
Wheels
Front Hub
Sealed Bearing, 15x110mm Boost, 6 Bolt
Rear Hub
Alloy RR, 12x148mm Boost, HG, 6 Bolt
Rims
Stans Arch D 29" 32H
Tires
Schwalbe Nobby Nic Performance 2.35", Folding Addix
Brakes
Brakes
Shimano BRMT400, Resin Pads
Brake Levers
Shimano BRMT400
Disk Rotors
Shimano ASMRT26M, 180mm
Cockpit
Stem
Norco SL Alloy Stem, 60mm Length, 31.8mm Clamp
Handlebar
Butted Alloy Lite, 760mm, 15mm Rise
Grips
VP Lock-On
Headset
Angular Cartridge Bearing
Seat
Saddle
Fizik Alpaca Terra, Wingflex
Seatpost
TranzX YSP18 Dropper, 31.6mm, 130mm (S, M), 150mm (L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.35 mm | 1.28 mm | 1.22 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 706 mm | 736 mm | 770 mm | 803 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm |
| Stack | 596 mm | 596 mm | 605 mm | 615 mm |
| Reach | 413 mm | 443 mm | 473 mm | 503 mm |
| Top Tube Length | 572 mm | 602 mm | 635 mm | 667 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 425 mm | 440 mm | 485 mm | 510 mm |
| Head Tube Angle | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 411 mm | 414 mm | 417 mm | 421 mm |
| Wheelbase | 1111 mm | 1145 mm | 1182 mm | 1219 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 666 mm | 683 mm | 718 mm | 741 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
About this model

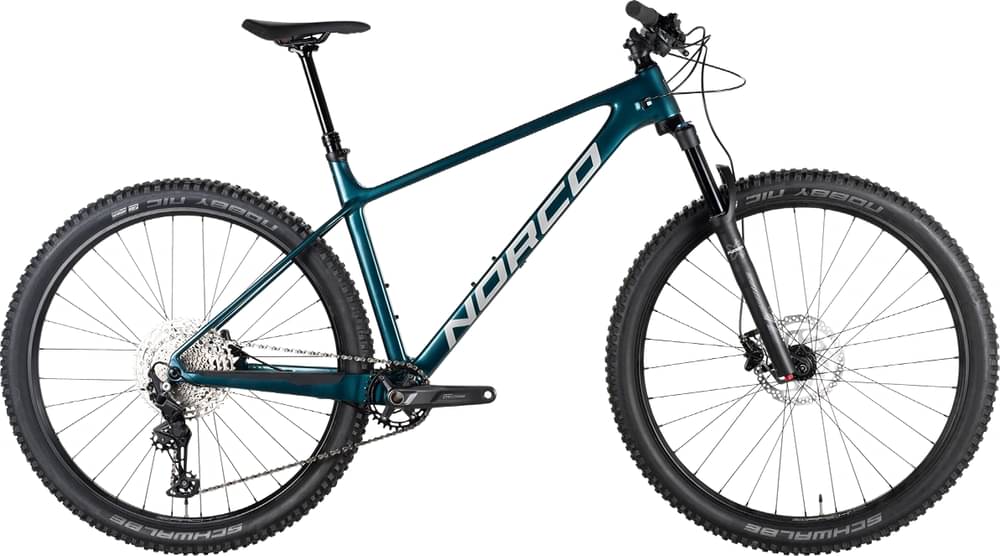

Revolver HT 3 120 belongs to the Norco Revolver model. There are 148 bikes that carry this model name. Take a sneak peek at all Norco Revolver bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Norco Revolver HT 3 120 2021 has a starting price of 2799$. Norco Revolver FS AXS 120 2021 on the other hand is the most expensive at 10999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 2799$. Doing a quick comparison, we notice that Revolver HT 3 120 price is 1.34% higher than the average cost of a Trail bike.
Overview of components
Fork
Norco Revolver HT 3 120 2021 bike is equipped with the X Fusion fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Norco Revolver HT 3 120 2021, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Revolver HT 3 120 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Norco Revolver HT 3 120 bike has 4 sizes, in the range of 154 cm – 191 cm (5.05 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
