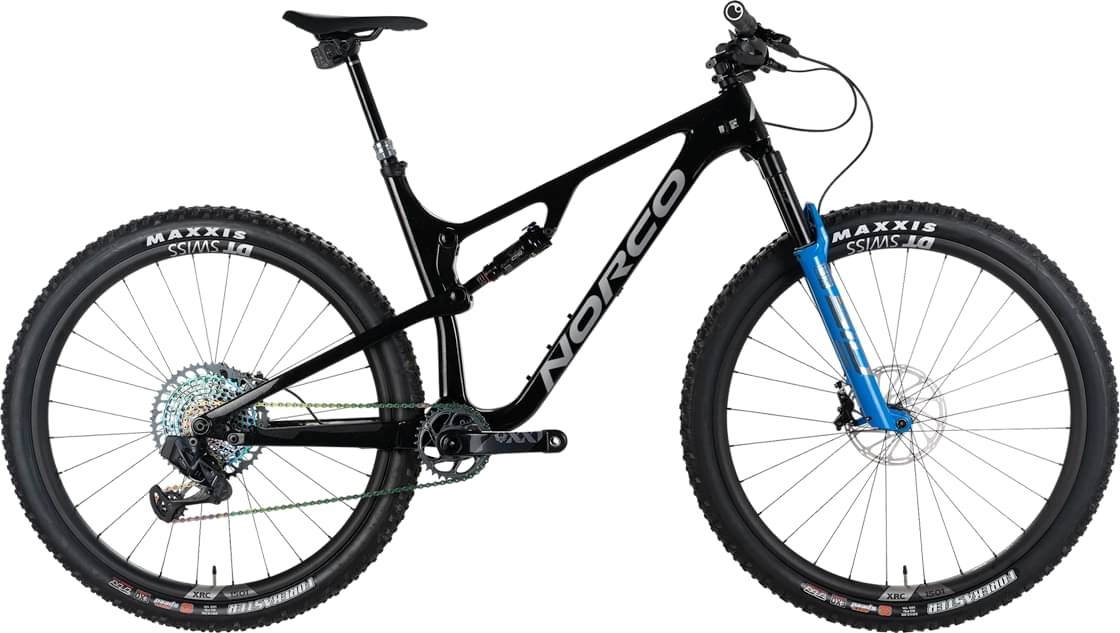

Norco Revolver FS AXS 120 2022
2022 Mountain
Estimate price |
8,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox SID Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hi-Mod Carbon, 120mm
Suspension Fork
RockShox SID Ultimate, 120mm, 44mm Offset
Rear Shock
RockShox SIDLuxe Select+, 190x45mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM Eagle AXS Controller
Cassette
SRAM XG-1299 Eagle, 10-52T, Rainbow
Crank
SRAM XX1 Eagle B148 DUB, 32T, 170mm (S), 175mm (M, L, XL)
Bottom Bracket
SRAM BB DUB PF92
Chain
SRAM XX1 Rainbow
Wheels
Front Hub
DT Swiss XRC 1501 Spline, 15x110mm Boost, 6 Bolt
Rear Hub
DT Swiss XRC 1501 Spline, 12x148mm Boost, XD, 6 Bolt
Rims
DT Swiss XRC 1501 Spline Carbon 29" Wheelset
Tires
Front: Maxxis Forekaster 2.35" 3C/TR/EXO, Rear: Maxxis Forekaster 2.35" 3C/TR/EXO
Brakes
Brakes
Front: SRAM G2 RSC, Organic Pads, Rear: SRAM G2 RSC, Organic Pads
Brake Levers
SRAM G2 RSC
Cockpit
Stem
Race Face Turbine R, 60mm Length, 35mm Clamp
Handlebar
Race Face Next R Carbon, 780mm, 20mm Rise
Grips
Ergon GA20 Lock-On
Headset
FSA Internal Cartridge Bearing
Seat
Saddle
Fizik Alpaca Terra with Wingflex
Seatpost
RockShox Reverb AXS, 125mm (S), 150mm (M, L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.32 mm | 1.25 mm | 1.2 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 699 mm | 729 mm | 763 mm | 797 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 578 mm | 578 mm | 588 mm | 598 mm |
| Reach | 409 mm | 439 mm | 469 mm | 500 mm |
| Top Tube Length | 568 mm | 598 mm | 631 mm | 663 mm |
| Seat Tube Angle | 74.8 ° | 74.9 ° | 74.9 ° | 74.9 ° |
| Seat Tube Length | 425 mm | 440 mm | 485 mm | 510 mm |
| Head Tube Angle | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 411 mm | 414 mm | 417 mm | 421 mm |
| Wheelbase | 1108 mm | 1141 mm | 1179 mm | 1216 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 700 | 707 mm | 708 mm | 717 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Revolver FS AXS 120 belongs to the Norco Revolver model. 148 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Norco Revolver HT 3 120 2022 is the most affordable bike of this model and has a price of 2799$. On the other hand, Norco Revolver FS AXS 120 2022, is the most expensive and costs 8699$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Norco Revolver FS AXS 120 price was 8699$. Comparing the average cost of a Trail bike to this one, you will see that Revolver FS AXS 120 price is 214.95% higher.
Overview of components
Fork
The fork installed on this bike is the RockShox SID Ultimate model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the RockShox SIDLuxe Select+ rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Revolver FS AXS 120 are the 29″ carbon type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Revolver FS AXS 120 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
