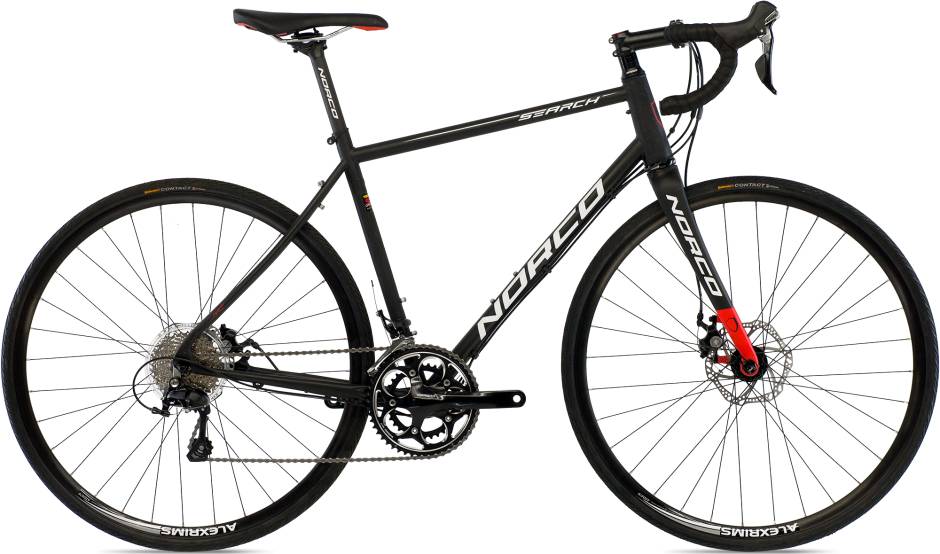

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Search Reynolds 520 Chromoly Disc
Suspension Fork
Search Mid-Mod Full Carbon - TA Disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano 105 RD-5800-GS 11spd - Black
Front Derailleur
Shimano 105 FD-5800
Shift Levers
Shift Casing - Black
Cassette
Shimano 105 CS-5800 11-32T 11 speed
Crank
Shimano 105 FC-5800 50/34T 11spd - Black
Bottom Bracket
Shimano HollowTech II
Chain
Shimano CN-HG600-11 11speed
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
Alloy 15x100mm Thru-Axle Disc 28h - Black
Rear Hub
Alloy 10x135mm QR Disc 28h - Black
Rims
Alex ATD470 Disc 28h - Black
Tires
Continental Contact II 28c w/Safety System
Brakes
Brakes
Hayes CX Expert Mech Disc w/160mm rotor
Brake Levers
Shimano 105 ST-5800
Disk Rotors
N/A
Cockpit
Stem
Norco - Black Stealth w/Red
Handlebar
Ritchey Comp Evo Curve - Black
Grips
Norco UltraComfort w/Vex Gel - Black
Headset
FSA Tapered Cartridge
Seat
Saddle
Norco Sport w/Cromo Rail - Black
Seatpost
Norco Composite 27.2 - UD Carbon Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.48 mm | 1.51 mm | 1.54 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 279.5 mm | 279.5 mm | 282 mm | 282 mm | 284.5 mm | 284.5 mm |
| Front Center | 584 mm | 588 mm | 592 mm | 604 mm | 617 mm | 629 mm |
| Rake | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 70 mm | 67 mm | 62 mm | 60 mm | 59 mm | 57 mm |
| Stack | 520 mm | 536 mm | 553 mm | 576 mm | 595 mm | 618 mm |
| Reach | 359 mm | 362 mm | 367 mm | 375 mm | 384 mm | 391 mm |
| Top Tube Length | 503.5 mm | 516 mm | 533.5 mm | 551 mm | 568.5 mm | 586 mm |
| Seat Tube Angle | 74.75 ° | 74.25 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 425 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 70.75 ° | 71.25 ° | 72 ° | 72.25 ° | 72.5 ° | 72.75 ° |
| Head Tube Length | 105 mm | 120 mm | 137.5 mm | 160 mm | 182.5 mm | 205 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 999 mm | 1003 mm | 1008 mm | 1021 mm | 1034 mm | 1046 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 686 mm | 706 mm | 736 mm | 766 mm | 796 mm | 821 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Search S1 is part of the Norco Search model. 121 bikes variations carry this model name so far. Take a sneak peek at all Norco Search bikes models from 2015, by clicking here.
Model range prices
The most economical model, the Norco Search S3 2015 has a starting price of 885$. Norco Search XR 2015 on the other hand is the most expensive at 3700$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2015 for 1525$. Comparing the average cost of a Gravel bike to this one, you will see that Search S1 price is 61.44% smaller.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Search S1 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Search S1 has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
