Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Search Mid-Mod Carbon - TA Disc
Suspension Fork
Search Mid-Mod Full Carbon - TA Disc
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Ultegra RD-6800-GS 11spd
Front Derailleur
Shimano Ultegra FD-6800 11spd
Shift Levers
Shift Housing w/Sealed End Caps - Black
Cassette
Shimano Ultegra CS-6800 11spd 11-32T
Crank
Shimano 105 FC-5800 50/34T 11spd - Black
Bottom Bracket
Shimano SM-BB71 Pressfit BB86
Chain
Shimano CN-HG700-11 11speed
Chain Tensioner
N/A
Pedals
N/A
Wheels
Front Hub
Alloy 15x100mm Thru-Axle Disc 28h - Black
Rear Hub
Alloy 12x142mm Thru-Axle Disc 28h - Black
Rims
Alex ATD470 Disc 28h - Black
Tires
Continental Contact II 28c w/Safety System
Brakes
Brakes
Shimano BR-RS785 Hydraulic Disc w/160mm
Brake Levers
Shimano BR-RS685 Hydraulic Disc
Disk Rotors
N/A
Cockpit
Stem
Norco Lite - Black w/Cyan
Handlebar
Ritchey WCS Evo Curve - Black
Grips
Norco UltraComfort w/Vex Gel - Black
Headset
Cane Creek 10-Series w/9mm Top Cover
Seat
Saddle
Fizik Strada Mg - Black
Seatpost
Norco Lite Composite 27.2 - UD w/Cyan
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.51 mm | 1.54 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 279.5 mm | 279.5 mm | 282 mm | 282 mm | 284.5 mm | 284.5 mm |
| Front Center | 577 mm | 583 mm | 592 mm | 604 mm | 617 mm | 629 mm |
| Rake | 47 mm | 47 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 72 mm | 69 mm | 62 mm | 60 mm | 59 mm | 57 mm |
| Stack | 521 mm | 537 mm | 553 mm | 576 mm | 595 mm | 618 mm |
| Reach | 354 mm | 359 mm | 367 mm | 375 mm | 384 mm | 391 mm |
| Top Tube Length | 503.5 mm | 516 mm | 533.5 mm | 551 mm | 568.5 mm | 586 mm |
| Seat Tube Angle | 74.75 ° | 74.25 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 425 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 70.75 ° | 71.25 ° | 72 ° | 72.25 ° | 72.5 ° | 72.75 ° |
| Head Tube Length | 115 mm | 130 mm | 147.5 mm | 170 mm | 192.5 mm | 215 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 982 mm | 988 mm | 998 mm | 1010 mm | 1024 mm | 1036 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 704 mm | 721 mm | 747 mm | 769 mm | 792 mm | 817 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

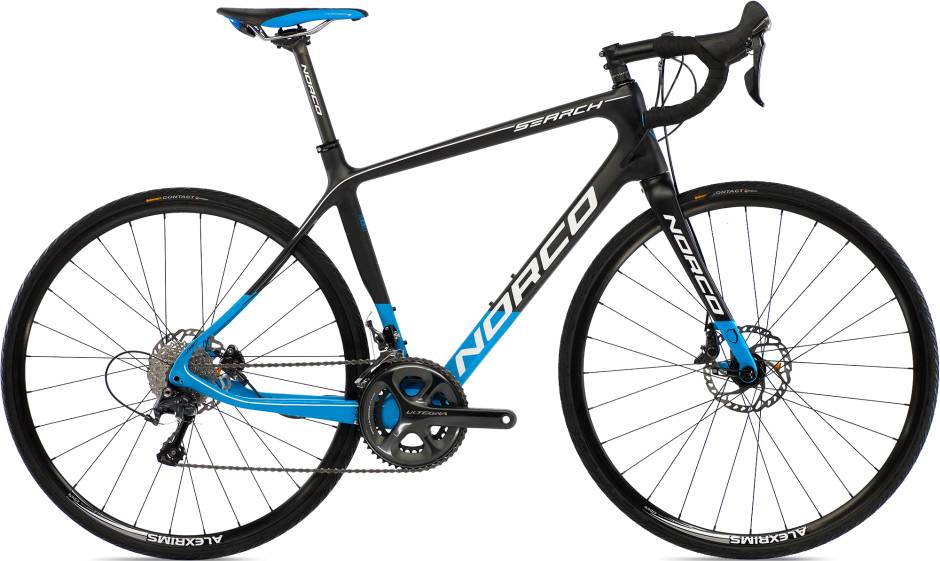

Search Ultegra is a Norco Search model. There are 121 bikes that carry this model name. Check out the entire range from 2015 of this model, by clicking this link.
Model range prices
Norco Search S3 2015 is the most economical model, with a starting price of 885$. Norco Search XR 2015 on the other hand costs 3700$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2015 for 3150$. Comparing the average cost of a Gravel bike to this one, you will see that Search Ultegra price is 27.94% more expensive.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Norco Search Ultegra 2015, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
