Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Search XR Carbon
Suspension Fork
Search XR Carbon
Drivetrain
Rear Derailleur
SRAM Apex 1 Long Cage
Front Derailleur
Norco Integrated 1x Guide
Shift Levers
SRAM Apex 1 11spd w/Hydro Disc
Cassette
SRAM XG-1150 10-42T
Crank
SRAM Apex 1 40T - Black
Bottom Bracket
Enduro GXP Pressfit86
Chain
SRAM PC-1110
Wheels
Front Hub
Alloy 12x100mm Thru-Axle 28h - Black
Rear Hub
Alloy 12x142mm Thru-Axle 28h - Black
Rims
WTB STS i23 - Black
Tires
Clement X’Plor MSO 650Bx42c(45.5/48) or 700x40c(50.5-60.5) - Folding / Tubeless Ready
Brakes
Brakes
SRAM Apex 1 Hydraulic Disc w/160mm Rotor
Brake Levers
SRAM Apex 1 Hydraulic Disc
Cockpit
Stem
Norco SL Alloy - Black
Handlebar
Easton EA70 AX w/16deg Flare
Grips
Norco Microfiber - Brown
Headset
Angular Sealed Cartridge Bearings - Tapered
Seat
Saddle
Norco SL Race w/Chromo Rails - Brown
Seatpost
Norco SL Composite 27.2mm - UD Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45.5cm | 48cm |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm |
| Bottom Bracket Height | 273 mm | 273 mm |
| Front Center | 566 mm | 578 mm |
| Rake | 50 mm | 49 mm |
| Trail | 62 mm | 62 mm |
| Stack | 497 mm | 517 mm |
| Reach | 348 mm | 355 mm |
| Top Tube Length | 493 mm | 508 mm |
| Seat Tube Angle | 74 ° | 73.75 ° |
| Seat Tube Length | 410 mm | 435 mm |
| Head Tube Angle | 70.75 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm |
| Chainstay Length | 403 mm | 403 mm |
| Wheelbase | 963 mm | 974 mm |
| Bottom Bracket Drop | 57 mm | 57 mm |
| Standover Height | 694 mm | 713 mm |
| Wheels | 650 | 650 |
About this model

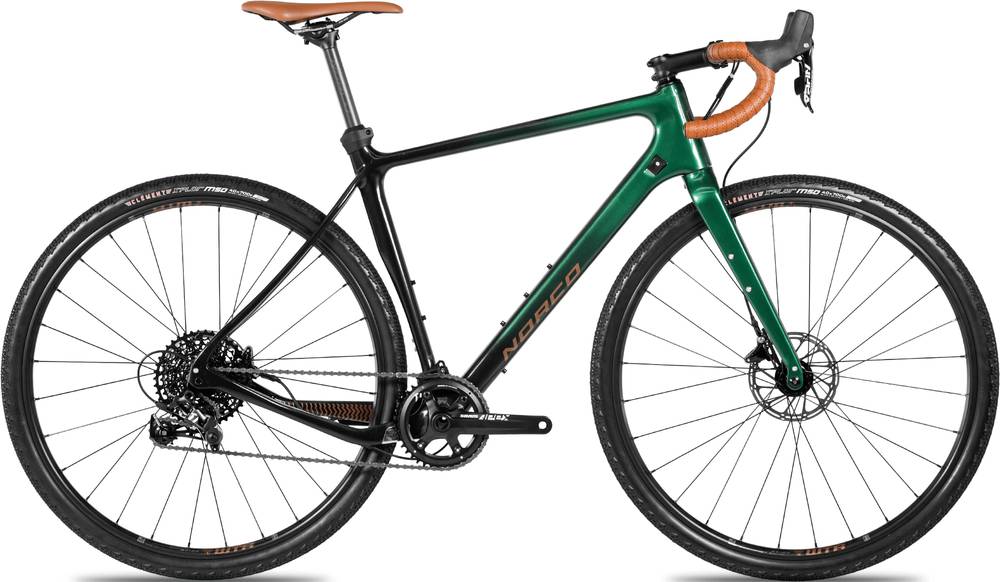

Search XR Apex 1 650b is a Norco Search model. Norco launched 121 bikes of this model so far. Take a sneak peek at all Norco Search bikes models from 2018, by clicking here.
Model range prices
Norco Search A Claris 2018 is the most economical model, with a starting price of 749$. Norco Search XR Force 1 2018 on the other hand costs 4199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2899$. In conclusion, this bike price is 17.75% higher than the price of the average Gravel bike.
Overview of components
Fork material
Search XR Apex 1 650b has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Norco Search XR Apex 1 650b 2018, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Search XR Apex 1 650b is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
