Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Search XR Carbon
Suspension Fork
Search XR Carbon
Drivetrain
Rear Derailleur
SRAM Apex 1 Long Cage
Front Derailleur
Norco Integrated 1x Guide
Shift Levers
SRAM Apex 1 11spd w/Hydro Disc
Cassette
SRAM XG-1150 10-42T
Crank
SRAM Apex 1 40T - Black
Bottom Bracket
Enduro GXP Pressfit86
Chain
SRAM PC-1110
Wheels
Front Hub
Alloy 12x100mm Thru-Axle 28h - Black
Rear Hub
Alloy 12x142mm Thru-Axle 28h - Black
Rims
WTB STS i23 - Black
Tires
Clement X’Plor MSO 650Bx42c(45.5/48) or 700x40c(50.5-60.5) - Folding / Tubeless Ready
Brakes
Brakes
SRAM Apex 1 Hydraulic Disc w/160mm Rotor
Brake Levers
SRAM Apex 1 Hydraulic Disc
Cockpit
Stem
Norco SL Alloy - Black
Handlebar
Easton EA70 AX w/16deg Flare
Grips
Norco Microfiber - Brown
Headset
Angular Sealed Cartridge Bearings - Tapered
Seat
Saddle
Norco SL Race w/Chromo Rails - Brown
Seatpost
Norco SL Composite 27.2mm - UD Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.5 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 277 mm | 279.5 mm | 279.5 mm | 282 mm | 282 mm |
| Front Center | 595 mm | 604 mm | 614 mm | 627 mm | 639 mm |
| Rake | 49 mm | 49 mm | 50 mm | 49 mm | 49 mm |
| Trail | 68 mm | 65 mm | 62 mm | 62 mm | 60 mm |
| Stack | 539 mm | 555 mm | 572 mm | 592 mm | 612 mm |
| Reach | 368 mm | 375 mm | 382 mm | 391 mm | 399 mm |
| Top Tube Length | 522 mm | 540 mm | 557 mm | 575 mm | 592 mm |
| Seat Tube Angle | 74.25 ° | 73.75 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.75 ° | 72 ° | 72.25 ° |
| Head Tube Length | 120 mm | 138 mm | 155 mm | 178 mm | 198 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 417 mm | 417 mm |
| Wheelbase | 998 mm | 1007 mm | 1018 mm | 1034 mm | 1046 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 737 mm | 759 mm | 780 mm | 805 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

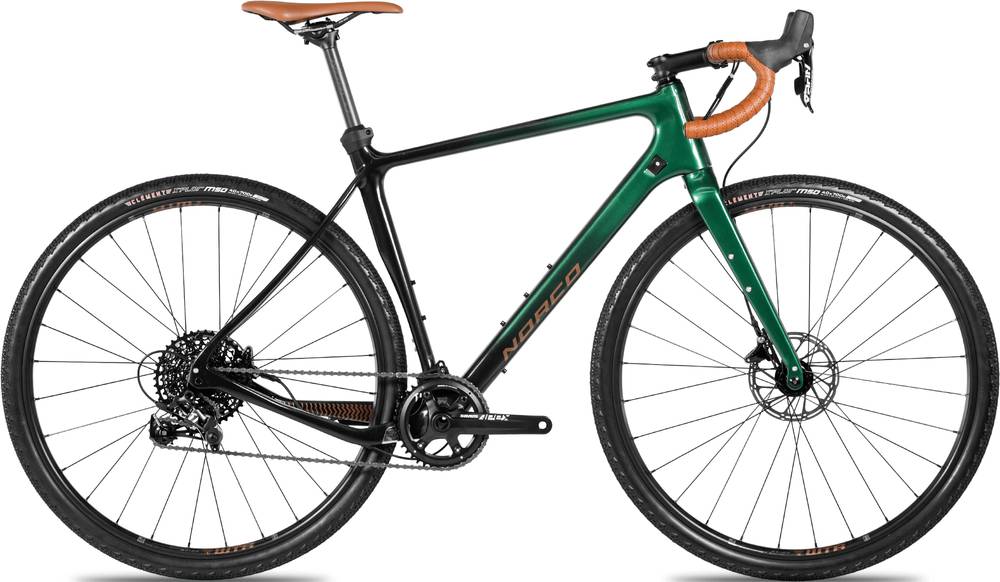

Search XR Apex 1 700c belongs to the Norco Search model. 121 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Norco Search A Claris 2018 is the most affordable bike of this model and has a price of 749$. On the other hand, Norco Search XR Force 1 2018, is the most expensive and costs 4199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Norco released this model in 2018, its price was 2899$. Doing a quick comparison, we notice that Search XR Apex 1 700c price is 17.75% higher than the average cost of a Gravel bike.
Search XR Apex 1 700c components
Fork material
Search XR Apex 1 700c has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Search XR Apex 1 700c model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Search XR Apex 1 700c is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
