Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, Easton -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
45.5cm
147cm - 154cm
48cm
152cm - 161cm
50.5cm
158cm - 167cm
53cm
165cm - 174cm
55.5cm
171cm - 180cm
58cm
177cm - 186cm
60.5cm
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-Modulus Carbon
Suspension Fork
High-Modulus Carbon
Drivetrain
Rear Derailleur
Shimano GRX RD-RX812
Front Derailleur
Norco Integrated 1x Guide
Shift Levers
Shimano GRX ST-RX810 11 speed
Cassette
Shimano XT CS-M8000 11-42T
Crank
Easton EC90 Carbon, 40T
Bottom Bracket
Easton PressFit BB86
Chain
KMC X11
Wheels
Front Hub
Reynolds 12x100mm TA
Rear Hub
Reynolds 12x142mm TA
Rims
Reynolds ATR, Carbon, Tubeless Ready
Tires
WTB Resolute TCS 700x42c, Tubeless Compatible System, Tanwall
Brakes
Brakes
Shimano GRX BR-RX810 Hydraulic Disc
Brake Levers
Shimano GRX BL-RX810 Hydraulic
Cockpit
Stem
Norco SL Aluminum
Handlebar
Easton EC70 AX Carbon, 16deg Flare
Headset
FSA Orbit No. 42
Seat
Saddle
Norco SL Race, CrN-Ti Rails
Seatpost
X-Fusion Manic Gravel 50mm Dropper, Shimano Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45.5cm | 48cm | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.46 mm | 1.48 mm | 1.5 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 273 mm | 273 mm | 277 mm | 280 mm | 280 mm | 282 mm | 282 mm |
| Front Center | 567 mm | 578 mm | 595 mm | 603 mm | 614 mm | 627 mm | 639 mm |
| Rake | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm | 49 mm |
| Trail | 63 mm | 62 mm | 69 mm | 66 mm | 64 mm | 63 mm | 61 mm |
| Stack | 497 mm | 517 mm | 540 mm | 556 mm | 573 mm | 593 mm | 613 mm |
| Reach | 348 mm | 355 mm | 369 mm | 376 mm | 383 mm | 392 mm | 400 mm |
| Top Tube Length | 493 mm | 508 mm | 523 mm | 541 mm | 558 mm | 576 mm | 593 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 74.25 ° | 73.75 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 410 mm | 435 mm | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 70.75 ° | 71 ° | 71 ° | 71.5 ° | 71.75 ° | 72 ° | 72.25 ° |
| Head Tube Length | 110 mm | 130 mm | 120 mm | 137.5 mm | 155 mm | 177.5 mm | 197.5 mm |
| Chainstay Length | 403 mm | 403 mm | 415 mm | 415 mm | 415 mm | 418 mm | 418 mm |
| Wheelbase | 963 mm | 974 mm | 999 mm | 1008 mm | 1019 mm | 1035 mm | 1047 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 75 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 627 mm | 651 mm | 679 mm | 710 mm | 737 mm | 768 mm | 795 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 152 cm | 158 cm | 165 cm | 171 cm | 177 cm | 184 cm |
| Rider Max Height | 154 cm | 161 cm | 167 cm | 174 cm | 180 cm | 186 cm | 194 cm |
About this model

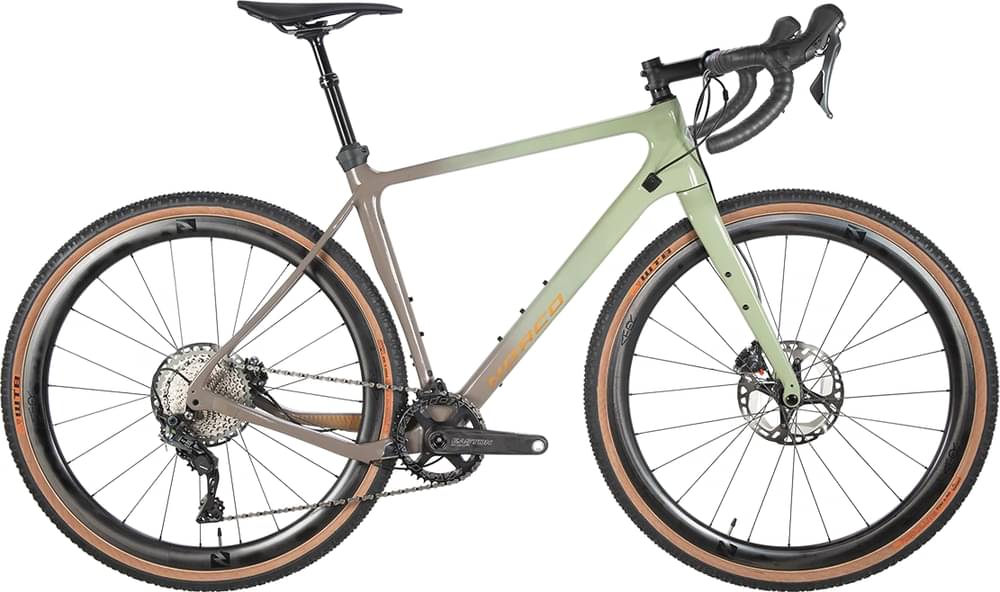

Search XR C1 700c belongs to the Norco Search model. Norco launched 121 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Norco Search XR Flat Bar 2021 is the most economical model, with a starting price of 1299$. Norco Search XR C1 650b 2021 on the other hand costs 4999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 4999$. Comparing this to the average Gravel bike price, we see that the price is 103.05% higher.
Overview of components
Fork material
Search XR C1 700c has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Norco Search XR C1 700c 2021, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 147 cm – 194 cm (4.82 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Norco model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
