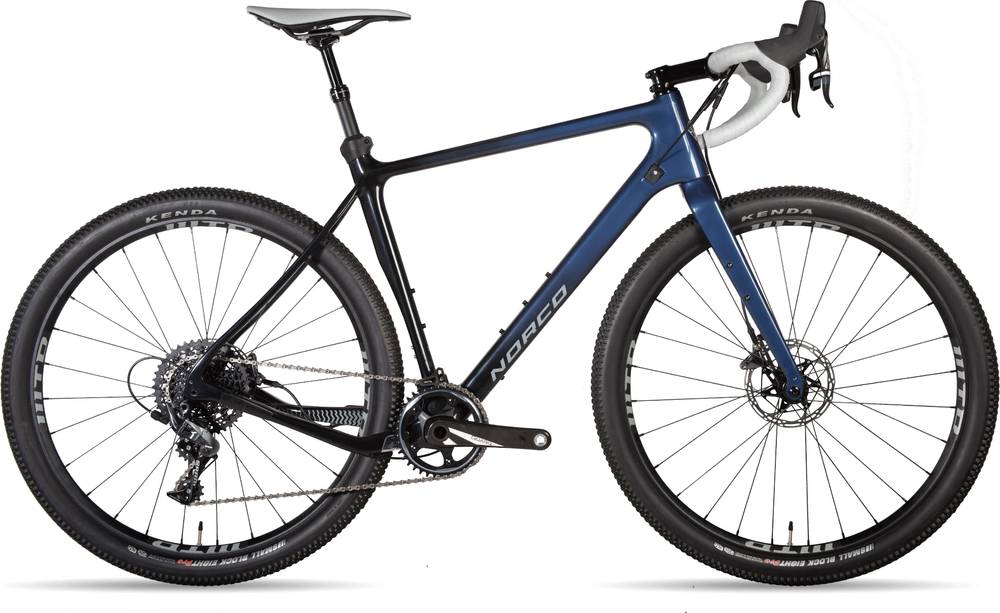

Norco Search XR Carbon Force 1 650b 2019
2019 Road
Estimate price |
4,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset Force 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Search XR, Carbon, 12x142mm TA Dropouts
Suspension Fork
Norco Search XR Carbon Fork, 12x100mm TA
Drivetrain
Rear Derailleur
SRAM Force 1, Long Cage, 11 Speed
Front Derailleur
Norco Integrated 1x Guide
Shift Levers
Rear: SRAM Force 1, Hydraulic Brake, 11 Speed, Front: SRAM Force 1 Modified Dropper Remote, Hydraulic Brake
Cassette
SRAM GX XG-1175, 10-42T, 11 Speed
Crank
Quarq Prime Carbon 1, Power Ready, 165mm (45.5) | 170mm (48/50.5) | 172.5mm (53/55.5) | 175mm (58/60.5), 40T
Bottom Bracket
Enduro GXP PressFit, BB86
Chain
SRAM Force 1 PC-1170, 11 Speed
Wheels
Front Hub
DT Swiss 350 12x100mm Thru-Axle 28h - Black
Rear Hub
DT Swiss 350, 28 Hole, 12x142mm
Rims
WTB KOM Light i23 TCS 2.0, 28 Hole, Tubeless Ready, 23mm Internal Width
Tires
Kenda Small Block 8 Pro, 2.1”,Tubeless Ready, Folding
Brakes
Brakes
SRAM Force 1, Hydraulic Disc, SRAM CenterLine X 160mm Rotor
Brake Levers
SRAM Force 1
Cockpit
Stem
Norco SL Alloy - Black
Handlebar
Easton EC70 AX w/16deg Flare
Headset
FSA Orbit No. 42/ACB - All Black
Seat
Saddle
Norco SL Race w/Crn-Ti Rails - Light Grey
Seatpost
KS LEV Integra Dropper Post, 65mm, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.5 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 270 mm | 272.5 mm | 272.5 mm | 275 mm | 275 mm |
| Front Center | 595 mm | 604 mm | 614 mm | 627 mm | 639 mm |
| Rake | 49 mm | 49 mm | 50 mm | 49 mm | 49 mm |
| Trail | 62 mm | 59 mm | 56 mm | 56 mm | 54 mm |
| Stack | 539 mm | 555 mm | 572 mm | 592 mm | 612 mm |
| Reach | 368 mm | 375 mm | 382 mm | 391 mm | 399 mm |
| Top Tube Length | 522 mm | 540 mm | 557 mm | 575 mm | 592 mm |
| Seat Tube Angle | 74.25 ° | 73.75 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.75 ° | 72 ° | 72.25 ° |
| Head Tube Length | 120 mm | 138 mm | 155 mm | 178 mm | 198 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 417 mm | 417 mm |
| Wheelbase | 998 mm | 1007 mm | 1018 mm | 1034 mm | 1046 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 730 mm | 752 mm | 773 mm | 798 mm | 821 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
Search XR Carbon Force 1 650b is part of the Norco Search model. 121 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Norco Search XR Aluminum Apex 1 650b 2019 is the cheapest bike model and costs 1599$. Norco Search XR Carbon Force 1 650b 2019 is the most expensive one and costs 4599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 4599$. Comparing the average cost of a Gravel bike to this one, you will see that Search XR Carbon Force 1 650b price is 86.8% higher.
Search XR Carbon Force 1 650b components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Search XR Carbon Force 1 650b model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Search XR Carbon Force 1 650b comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
