Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
154cm - 165cm
52cm
162cm - 172cm
55cm
169cm - 180cm
58cm
177cm - 188cm
61cm
185cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Butted Aluminum with Smooth Welds
Suspension Fork
Full Carbon, Through Axle
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100
Front Derailleur
-
Shift Levers
Shimano Deore SL-M5100
Cassette
Shimano Deore CS-M5100, 11/51T, 11 Speed
Crank
Alloy 2 Piece, Narrow Wide 40T, 170mm (49, 52), 172.5mm (55, 58), 175mm (61)
Bottom Bracket
BSA Threaded
Chain
KMC X11
Pedals
City Resin
Wheels
Front Hub
12x100mm, Through Axle, 6 Bolt
Rear Hub
12x142mm Through Axle, HG, 6 Bolt
Rims
Alloy Pinned, 28H, 23mm ID
Tires
Front: All Rounder Gravel 700x38c, Rear: All Rounder Gravel 700x38c
Brakes
Brakes
Front: Tektro HD-R280 Hydraulic, Rear: Tektro HD-R280 Hydraulic
Brake Levers
Tektro Hydro 3-Finger Levers w/ Reach Adjust
Cockpit
Stem
Aluminum, 60mm (49), 70mm (52), 80mm (55), 90mm (58), 100mm (61), 31.8mm Clamp
Handlebar
Aluminum, 620mm (49, 52), 640mm (55, 58, 61), 15mm Rise
Grips
Lock-On
Headset
Sealed Cartridge Bearings
Seat
Saddle
Selle Royal Gravel with Cutout
Seatpost
Aluminum 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 55cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.36 mm | 1.38 mm | 1.41 mm | 1.44 mm |
| Bottom Bracket Height | 276.5 mm | 276.5 mm | 279 mm | 281.5 mm | 281.5 mm |
| Front Center | 642 mm | 652 mm | 662 mm | 670 mm | 680 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 79 mm | 77 mm | 76 mm | 74 mm | 72 mm |
| Stack | 542 mm | 562 mm | 579 mm | 597 mm | 617 mm |
| Reach | 409 mm | 414 mm | 419 mm | 424 mm | 429 mm |
| Top Tube Length | 565 mm | 578 mm | 591 mm | 604 mm | 618 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 540 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 69.75 ° | 70 ° | 70.25 ° | 70.5 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 429 mm | 431 mm | 434 mm | 436 mm | 439 mm |
| Wheelbase | 1059 mm | 1072 mm | 1085 mm | 1097 mm | 1109 mm |
| Bottom Bracket Drop | 77 mm | 77 mm | 75 mm | 72 mm | 72 mm |
| Standover Height | 675 mm | 703 mm | 733 mm | 764 mm | 801 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 162 cm | 169 cm | 177 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 180 cm | 188 cm | 194 cm |
About this model

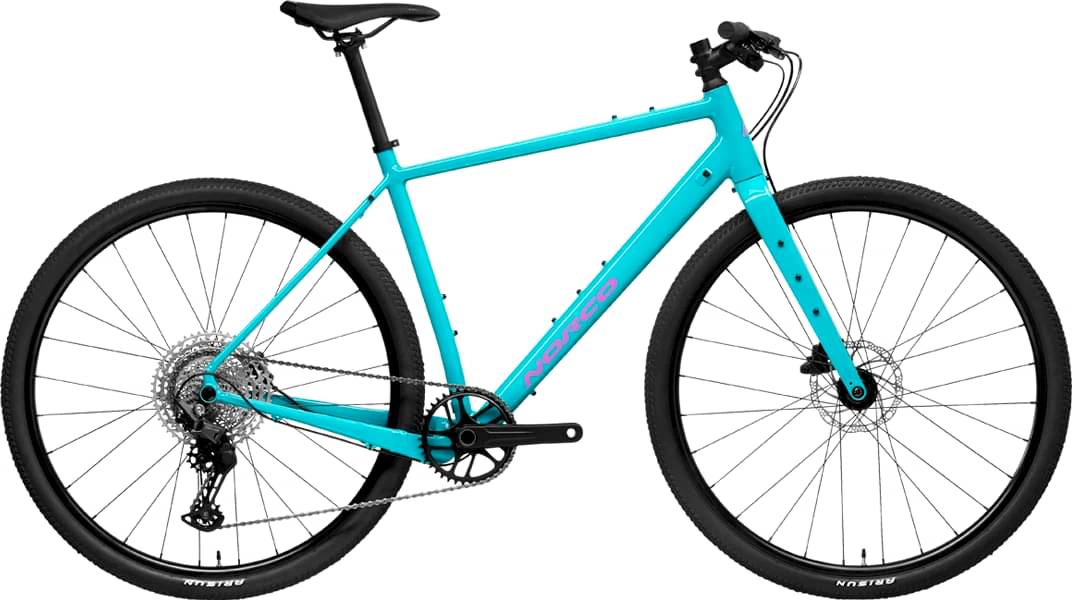

Search XR Flat Bar completes the Norco Search model. 121 bikes variations carry this model name so far. Take a sneak peek at all Norco Search bikes models from 2023, by clicking here.
Model range prices
Norco Search XR Flat Bar 2023 is the most affordable bike of this model and has a price of 1349$. On the other hand, Norco Search XR S1 700c 2023, is the most expensive and costs 3299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 1349$. Doing a quick comparison, we notice that Search XR Flat Bar price is 82.51% lower than the average cost of a Gravel bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Search XR Flat Bar 2023 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Search XR Flat Bar has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 154 cm – 194 cm (5.05 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
