Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset 105, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Search Reynolds 725 Chromoly
Suspension Fork
Search SL High-Modulus Carbon
Drivetrain
Rear Derailleur
Shimano 105 RD-5800-GS 11spd
Front Derailleur
Shimano 105 FD-5801 11spd
Shift Levers
Rear: Shimano 105 ST-5800 11spd - Black, Front: Shimano 105 ST-5800 2spd - Black
Cassette
Shimano 105 CS-5800 11-32T 11 speed
Crank
Praxis Alba 48/32T
Bottom Bracket
Praxis M30 PressFit86
Chain
KMC X11
Wheels
Front Hub
Alloy 12x100mm Thru-Axle 28h - Black
Rear Hub
Alloy 12x142mm Thru-Axle 28h - Black
Rims
WTB STS i23 - Black
Tires
Clement X’Plor MSO 650Bx42c(45.5/48) or 700x40c(50.5-60.5) - Folding / Tubeless Ready
Brakes
Brakes
TRP Spyre C Twin Piston Mech Disc - 160mm
Brake Levers
Shimano 105 ST-5800 - Black
Cockpit
Stem
Norco SL Alloy - Black
Handlebar
Norco Flare - Black
Grips
Norco Super Griptacular w/Gel - Black
Headset
Cartridge Bearing
Seat
Saddle
Norco SL Race w/Chromo Rails - Black
Seatpost
Norco 27.2mm - Black Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50.5cm | 53cm | 55.5cm | 58cm | 60.5cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.48 mm | 1.51 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 277 mm | 279.5 mm | 279.5 mm | 282 mm | 282 mm |
| Front Center | 595 mm | 604 mm | 614 mm | 627 mm | 639 mm |
| Rake | 50 mm | 50 mm | 49 mm | 49 mm | 50 mm |
| Trail | 67 mm | 64 mm | 63 mm | 62 mm | 59 mm |
| Stack | 541 mm | 555 mm | 575 mm | 592 mm | 612 mm |
| Reach | 367 mm | 375 mm | 382 mm | 391 mm | 399 mm |
| Top Tube Length | 522 mm | 540 mm | 557 mm | 575 mm | 592 mm |
| Seat Tube Angle | 74.25 ° | 73.75 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.75 ° | 72 ° | 72.25 ° |
| Head Tube Length | 110 mm | 125 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 424 mm | 424 mm |
| Wheelbase | 1006 mm | 1015 mm | 1025 mm | 1042 mm | 1054 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 70 mm | 70 mm |
| Standover Height | 738 mm | 759 mm | 781 mm | 805 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

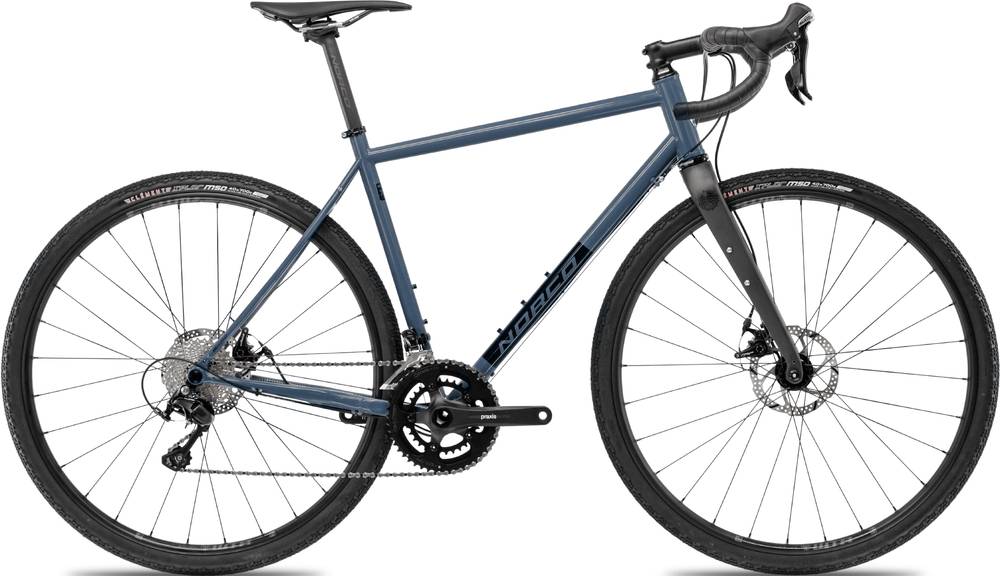

Search XR-S 105 700c is a Norco Search model. Norco released 121 bikes variations of this model so far. You can easily view all of the Norco Search bikes models from 2018, here.
Model range prices
Norco Search A Claris 2018 is the cheapest bike model and costs 749$. Norco Search XR Force 1 2018 is the most expensive one and costs 4199$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Norco released this model in 2018, its price was 1999$. Comparing this to the average Gravel bike price, we see that the price is 23.16% lower.
Search XR-S 105 700c components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Search XR-S 105 700c bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
