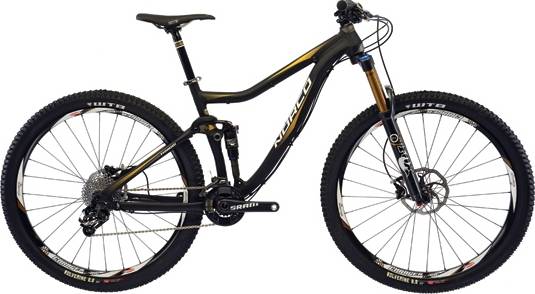

Norco Shinobi 1 2012
2012 Mountain
Estimate price |
5,450$
Weight | 13.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X0, XT -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shinobi 29er trail frame , 120 mm travel , 6061 aluminum, hydroformed aluminum mainframe tubing
Suspension Fork
Fox Float 34 Factory FIT RLC w/ Kashima 140mm, tapered steer tube , 15 mm axle
Rear Shock
FOX RP 23 with LV large volume air sleeve
Drivetrain
Rear Derailleur
SRAM X0 10 sp mid cage
Front Derailleur
Shimano XT
Shift Levers
SRAM X9 trigger
Cassette
SRAM PG 1050 10 sp 11-36T
Crank
SRAM BG/33/22T S 2210 carbon crank
Bottom Bracket
Comes with crank
Chain
SRAM PC 1051
Pedals
N/A
Wheels
Front Hub
Sun Charger Pro wheelset 15 mm axle
Rear Hub
Sun Charger Pro wheelset 142 x 12
Rims
N/A
Spokes
Sun Charger Pro 29er wheelset
Tires
WTB Bronson 29 x 2.2 Race
Brakes
Brakes
Avid Elixer 9 hydraulic disc, 180 mm rotor
Brake Levers
Avid Elixer 9
Cockpit
Stem
Easton Haven AM CNC (145 G) 55 mm /70 mm
Handlebar
Easton Haven Carbon bar 20 mm rise 711 wide
Grips
Norco Lock on grips
Headset
FSA #57 E sealed ( tapered internal ) 1.5" to 1-1/8"""
Seat
Saddle
WTB Silverado Team with nicro tubular rail
Seatpost
Norco SL double bolt 2014 alloy post 3D forged
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 693 mm | 708 mm | 729 mm | 750 mm |
| Rake | 40 mm | 41 mm | 39 mm | 40 mm |
| Trail | 105 mm | 103 mm | 106 mm | 105 mm |
| Stack | 624 mm | 624 mm | 636 mm | 643 mm |
| Reach | 417 mm | 432 mm | 450 mm | 467 mm |
| Top Tube Length | 596 mm | 611 mm | 631 mm | 651 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 418 mm | 456 mm | 494 mm | 532 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1145 mm | 1161 mm | 1181 mm | 1202 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 795 mm | 780 mm | 786 mm | 810 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Shinobi 1 belongs to the Norco Shinobi model. 9 bikes variations carry this model name so far. Take a sneak peek at all Norco Shinobi bikes models from 2012, by clicking here.
Model range prices
Norco Shinobi 3 2012 is the most economical model, with a starting price of 2550$. Norco Shinobi 1 2012 on the other hand costs 5450$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2012 for 5450$. Comparing this to the average Trail bike price, we see that the price is 97.32% more expensive.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Norco Shinobi 1 it’s weighing 13.1 kg (28.88 lbs). At this weight, is slightly heavier than average. In other words, this model is 0.92% heavier than the average Trail bike.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX RP 23 with LV large volume air sleeve, with a travel distance of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Shinobi 1 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Shinobi 1 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Norco Shinobi 1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
