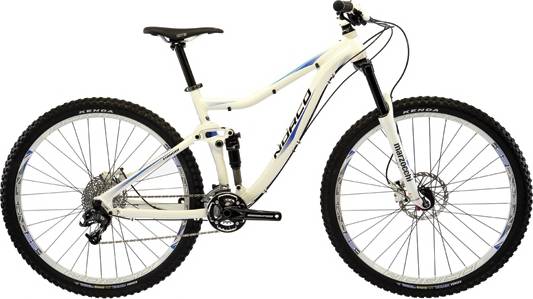

Norco Shinobi 3 2012
2012 Mountain
Estimate price |
2,550$
Weight | 14.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Marzocchi
-
Groupset X7, X5 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shinobi 29er trail frame , 120 mm travel , 6061 aluminum, hydroformed aluminum mainframe tubing
Suspension Fork
Marzocchi 44 TST 2 140 mm travel, 15 mm axle , tapered steer tube
Rear Shock
X Fusion 02 RL AV high volume air sleeve
Drivetrain
Rear Derailleur
SRAM X 7 mid cage
Front Derailleur
SRAM X5
Shift Levers
SRAM X-5 trigger
Cassette
SRAM PG-1030 10 sp 11-36
Crank
FSA Comet BG/32/22T 10 speed
Bottom Bracket
Comes with crank
Chain
SRAM PC 1031
Pedals
N/A
Wheels
Front Hub
Formula DC-15 15 mm axle hub
Rear Hub
Shimano M-475 disc rear hub
Rims
Sun Inferno 25 29er rim
Spokes
Black stainless steel 2.0
Tires
Kenda Nevagal 29 x 2.2
Brakes
Brakes
Avid Elixer 3 hydraulic disc, 180 mm rotor, match maker
Brake Levers
Avid Elixer 3
Cockpit
Stem
Norco short reach MTB trail stem 3D forged
Handlebar
Norco .5" rise bar 760 mm width 6061 alloy bar"
Grips
Norco Lock on grips
Headset
FSA #57B ( tapered internal ) 1.5" to 1-1/8"""
Seat
Saddle
WTB Silverado Comp
Seatpost
Norco alloy double bolt seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 693 mm | 708 mm | 729 mm | 750 mm |
| Rake | 40 mm | 41 mm | 40 mm | 40 mm |
| Trail | 105 mm | 103 mm | 105 mm | 105 mm |
| Stack | 624 mm | 624 mm | 633 mm | 643 mm |
| Reach | 417 mm | 432 mm | 450 mm | 467 mm |
| Top Tube Length | 596 mm | 611 mm | 631 mm | 651 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 418 mm | 456 mm | 494 mm | 532 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1145 mm | 1161 mm | 1181 mm | 1202 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 795 mm | 780 mm | 786 mm | 810 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Shinobi 3 completes the Norco Shinobi model. There are 9 bikes that carry this model name. Check out the entire range from 2012 of this model, by clicking this link.
Model range prices
Norco Shinobi 3 2012 is the most economical model, with a starting price of 2550$. Norco Shinobi 1 2012 on the other hand costs 5450$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Norco Shinobi 3 price was 2550$. If we compare this with the average Trail bike cost we notice that the price is 8.31% smaller.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Shinobi 3 weighs 14.9 kg (32.85 lbs) and is considerably heavier than the average. In other words, this model is 14.79% heavier than the average Trail bike.
Overview of components
Fork
This bike has the Marzocchi fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Shinobi 3 has a rear shock with a travel of 120mm. The model X Fusion 02 RL AV high volume air sleeve is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Shinobi 3 2012 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Shinobi 3 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
