Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Revelation RC
-
Groupset NX, Suntour SR -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sight Aluminum 130mm (29), 140mm (650B)
Suspension Fork
Rockshox Revelation RC, 140mm (29), 150mm (650B)
Rear Shock
Rockshox Deluxe RT Trunion w/Debonair
Drivetrain
Rear Derailleur
SRAM NX 11
Front Derailleur
N/A
Shift Levers
SRAM NX 11
Cassette
SRAM NX 11
Crank
SR Suntour Zeron Boost 30T (29), 32T (650B) 1X narrow/wide
Bottom Bracket
SR Suntour 73mm threaded BB
Chain
SRAM 11 speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Shimano Deore 110x15mm
Rear Hub
Shimano Deore 148x12 boost
Rims
WTB STP I29 TCS rim, 29mm inner
Spokes
Stainless steel black
Tires
Maxxis Forecaster 2.35 folding bead
Brakes
Brakes
Shimano BR-MT500 hydraulic disc brake w/180mm rotor
Brake Levers
Shimano MT500
Cockpit
Stem
Alloy 6061 35mm bar bore, 50mm (29), 60mm (650B)
Handlebar
Norco 25mm rise 6061 DB alloy 760/780mm 31.8mm bore
Grips
SDG Stage 1 lock on grip
Headset
FSA #57 E ( tapered internal ) 1.5" to 1-1/8"
Seat
Saddle
SDG Fly Mtn
Seatpost
JD Trans X post 80mm XS, 100mm S, 125mm M,L,XL, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm |
| Front Center | 732 mm | 758 mm | 784 mm |
| Rake | 51 mm | 51 mm | 50 mm |
| Trail | 104 mm | 104 mm | 105 mm |
| Stack | 614 mm | 614 mm | 623 mm |
| Reach | 432 mm | 458 mm | 481 mm |
| Top Tube Length | 602 mm | 633 mm | 663 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° |
| Seat Tube Length | 435 mm | 470 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 94 mm | 94 mm | 104 mm |
| Chainstay Length | 431 mm | 436 mm | 441 mm |
| Wheelbase | 1161 mm | 1192 mm | 1223 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm |
| Standover Height | 791 mm | 789 mm | 794 mm |
| Front Travel | 140 mm | 140 mm | 140 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

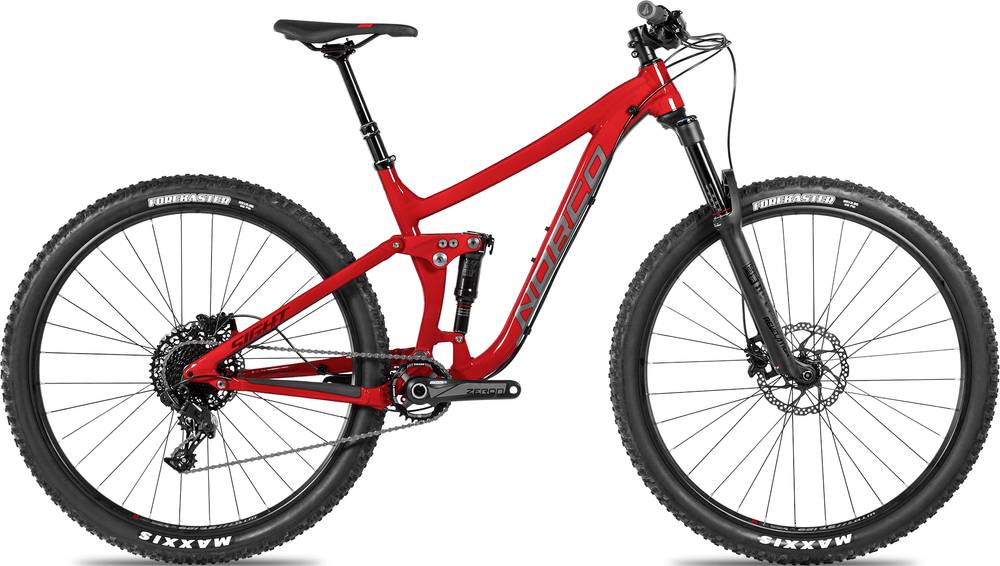

Sight A3 29 is part of the Norco Sight model. 215 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Norco Sight A3 Womens 2018 is the most economical model, with a starting price of 2799$. Norco Sight C1 29 2018 on the other hand costs 7199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Norco released this model in 2018, its price was 2799$. In conclusion, this bike price is 1.34% more expensive than the price of the average Trail bike.
Overview of components
Fork
Norco Sight A3 29 2018 bike is equipped with the RockShox Revelation RC fork, and has 140mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Rockshox Deluxe RT Trunion w/Debonair, with a travel distance of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Sight A3 29 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sight A3 29 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
