Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork DVO Diamond
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
XS
151cm - 164cm
SM
159cm - 170cm
SM
159cm - 170cm
MD
165cm - 177cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sight carbon 130mm (29), 140mm (650B)
Suspension Fork
DVO Diamond 140mm (29), 150mm (650B), Boost 110x12
Rear Shock
Fox Performance Float 3 postiion LV EVOL Inline rear shock
Drivetrain
Rear Derailleur
SRAM GX Eagle
Front Derailleur
N/A
Shift Levers
SRAM GX1 12 speed
Cassette
SRAM XG 1150 10-50T cassette
Crank
SRAM/Truvativ Decendent 6K Eagle Boost 32T (29) 34T (650B)
Bottom Bracket
SRAM GXP Pressfit BB 92
Chain
SRAM PC 12 speed chain
Chain Guide
OneUp S-3, upper guide
Pedals
N/A
Wheels
Front Hub
Novatec 110x15 sealed bearing disc hub
Rear Hub
SRAM MTH 746 148x12 Boost sealed w/XD driver
Rims
WTB STP I29 TCS rim, 29mm inner
Spokes
Stainless steel, black
Tires
Maxxis Minion DHF 2.3 folding EXO/ Dual compound
Brakes
Brakes
SRAM Level T w/180mm rotor
Brake Levers
SRAM Level T
Cockpit
Stem
Alloy 6061 35mm bar bore, 50mm (29), 60mm (650B)
Handlebar
Norco 20 mm rise 6061 800mm, 35mm bar bore
Grips
SDG Stage 1 lock on grip
Headset
FSA No 42 ACB 1.5" to 1-1/8"
Seat
Saddle
SDG Fly Mtn
Seatpost
JD Trans X post 80mm XS, 100mm S, 125mm M, 150mm L/XL, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.46 mm | 1.46 mm | 1.4 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 675 mm | 675 mm | 701 mm | 701 mm | 728 mm | 728 mm | 754 mm |
| Rake | 44 mm | 44 mm | 45 mm | 45 mm | 44 mm | 44 mm | 45 mm |
| Trail | 107 mm | 107 mm | 106 mm | 106 mm | 107 mm | 107 mm | 106 mm |
| Stack | 575 mm | 575 mm | 584 mm | 584 mm | 593 mm | 593 mm | 602 mm |
| Reach | 379 mm | 379 mm | 401 mm | 401 mm | 424 mm | 424 mm | 446 mm |
| Top Tube Length | 529 mm | 529 mm | 559 mm | 559 mm | 589 mm | 589 mm | 619 mm |
| Seat Tube Angle | 75.4 ° | 75.4 ° | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 74.1 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 435 mm | 435 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 417 mm | 417 mm | 422 mm | 422 mm | 427 mm | 427 mm | 432 mm |
| Wheelbase | 1091 mm | 1091 mm | 1123 mm | 1123 mm | 1154 mm | 1154 mm | 1186 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 769 mm | 769 mm | 764 mm | 764 mm | 769 mm | 769 mm | 781 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 151 cm | 159 cm | 159 cm | 165 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 164 cm | 170 cm | 170 cm | 177 cm | 177 cm | 184 cm |

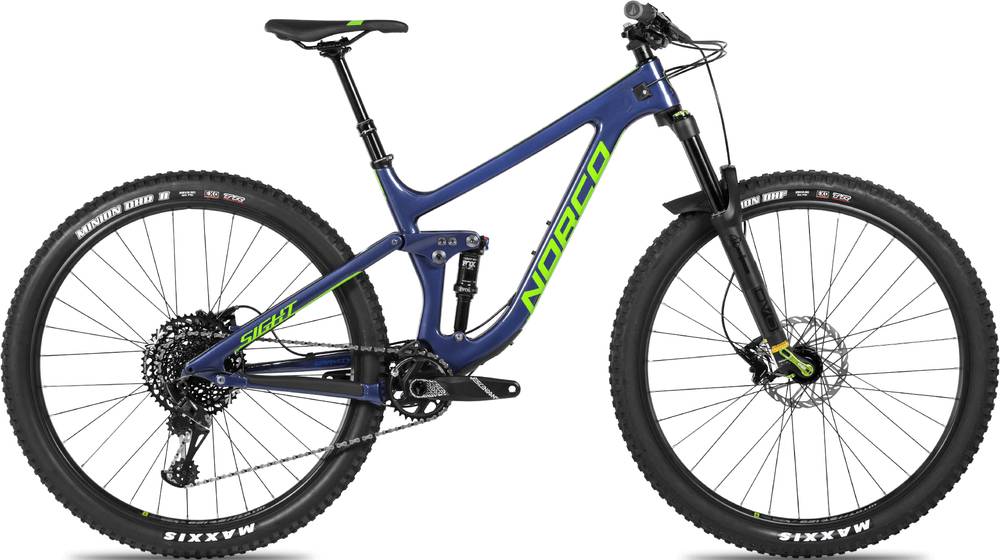

About this model
Sight C3 27.5 is part of the Norco Sight model. Norco launched 215 bikes of this model so far. Take a sneak peek at all Norco Sight bikes models from 2018, by clicking here.
Model range prices
Norco Sight A3 Womens 2018 is the cheapest bike model and costs 2799$. Norco Sight C1 29 2018 is the most expensive one and costs 7199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Norco released this model in 2018, its price was 4199$. Doing a quick comparison, we notice that Sight C3 27.5 price is 52.03% more expensive than the average cost of a Trail bike.
Overview of components
Fork
Norco Sight C3 27.5 2018 bike is equipped with the DVO Diamond fork, and has 140mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Sight C3 27.5 has a rear shock with a travel of 130mm. The model Fox Performance Float 3 postiion LV EVOL Inline rear shock is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Sight C3 27.5 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Sight C3 27.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 7 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
