Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
137cm - 148cm
XS
145cm - 157cm
SM
154cm - 166cm
MD
163cm - 174cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Internal Routing, Smooth Welds
Suspension Fork
Suntour XCM HLO DS, 100mm, 42mm Offset (27.5), 46mm Offset (29)
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100
Shift Levers
Shimano Deore SL-M5100
Cassette
Sunrace CMX8, 11-51T, 11 Speed
Crank
Prowheel MPX, 30T , 170mm (XXS, XS, S), 175mm (M, L, XL)
Bottom Bracket
Prowheel Cartridge Bearing, BSA Threaded
Chain
KMC X11
Pedals
VP Nylon Flat
Wheels
Front Hub
Alloy QR, 9x100mm QR, 6 Bolt
Rear Hub
Alloy QR, 10x135mm QR, HG, 6 Bolt
Rims
Alex DP21 TRS
Tires
Front: Maxxis Rekon DK60 2.25", Rear: Maxxis Rekon DK60 2.25"
Brakes
Brakes
Front: Tektro HD-M275 Hydraulic, Resin Pads, Rear: Tektro HD-M275 Hydraulic, Resin Pads
Brake Levers
Tektro HD-M275, HD-M276 Short Reach on Step-Thru
Cockpit
Stem
Alloy 60mm, 31.8mm Clamp
Handlebar
X6 Alloy, 720mm (XXS, XS, S), 740mm (M, L, XL), 25mm Rise
Grips
Norco
Headset
Zero Stack
Seat
Saddle
Norco XC
Seatpost
TranzX YSP18 Dropper, 130mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.79 mm | 1.67 mm | 1.56 mm | 1.46 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 310 mm |
| Front Center | 602 mm | 636 mm | 326 mm | 703 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 583 mm | 593 mm | 602 mm | 606 mm |
| Reach | 326 mm | 356 mm | 386 mm | 416 mm |
| Top Tube Length | 485 mm | 517 mm | 550 mm | 581 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 340 mm | 390 mm | 430 mm | 470 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1023 mm | 1057 mm | mm | 1125 mm |
| Bottom Bracket Drop | 49 mm | 49 mm | 49 mm | 44 mm |
| Standover Height | 579 mm | 607 mm | 623 mm | 664 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 137 cm | 145 cm | 154 cm | 163 cm |
| Rider Max Height | 148 cm | 157 cm | 166 cm | 174 cm |
About this model

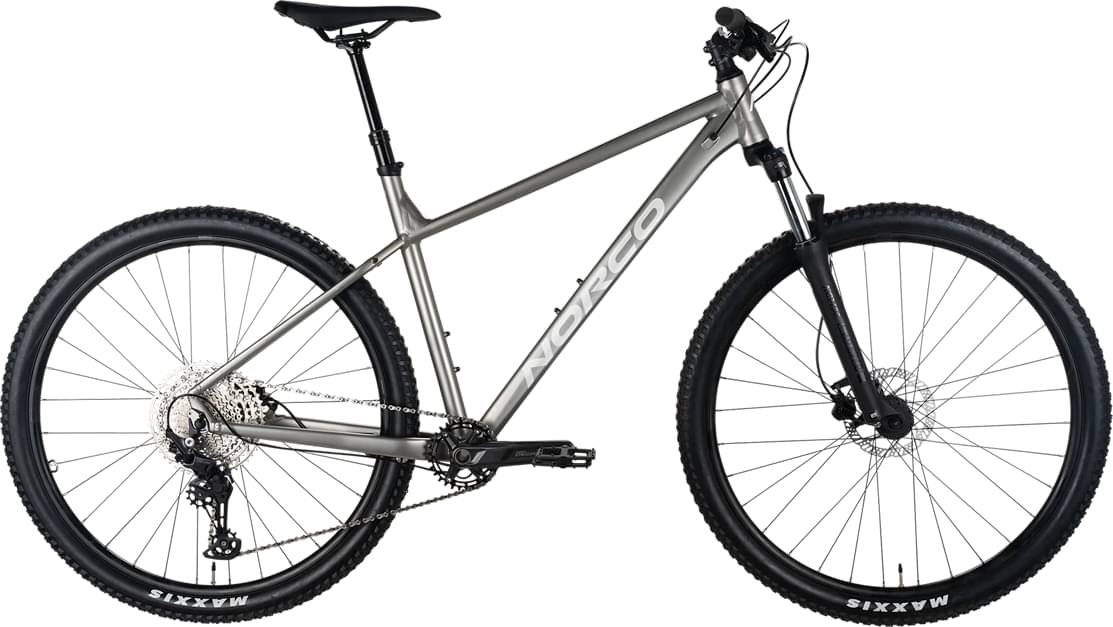

Storm 1 27.5 belongs to the Norco Storm model. Norco released 177 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Norco Storm 14 SS 2023 has a starting price of 361$. Norco Storm 1 29 2023 on the other hand is the most expensive at 1049$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 1049$. Comparing this to the average Crosscountry bike price, we see that the price is 81.6% lower.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Norco Storm 1 27.5 2023, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 137 cm – 174 cm (4.49 ft – 5.71 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Storm 1 27.5. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
