Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 20" -
Groupset Tourney -
Suspension Rigid -
Drivetrain 1 × 6 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight aluminum low standover frame
Suspension Fork
MTB type long radius w/V-Brake mounts
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano RD TZ 50 direct mount type
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Shimano TZ20 14-28T 6-Spd
Crank
Aluminum narrow-wide 28T 3-pc crankset - Black
Bottom Bracket
Cartridge bearing square taper BB
Pedals
Resin black Jr. flat pedal 9/16" w/bearing"
Wheels
Front Hub
KT 36H MTB hub w/ball bearing
Rear Hub
KT 36H MTB rear hub w/ball bearing
Rims
Aluminum 20" MTB"
Tires
20" x 1.95"" with MTB tread"
Brakes
Brakes
Tektro alloy V-Brake with linear spring
Brake Levers
Tektro Jr. MTB alloy/resin front and rear levers w/reach adjust
Cockpit
Stem
Kalloy 35mm ext., 1-1/8" threadless MTB"
Handlebar
Jr. MTB aluminum 600mm wide x 30mm rise
Grips
Jr. MTB type, soft krayton rubber
Seat
Saddle
Norco Jr. MTB saddle with cutaway design
Seatpost
Aluminum with micro adjust top, 250mmx27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | N/A |
|---|---|
| Stack Reach Ratio | 1.23 mm |
| Bottom Bracket Height | 255 mm |
| Front Center | 495 mm |
| Rake | 30 mm |
| Stack | 384 mm |
| Reach | 313 mm |
| Top Tube Length | 456 mm |
| Seat Tube Angle | 70 ° |
| Seat Tube Length | 255 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 336 mm |
| Wheelbase | 831 mm |
| Bottom Bracket Drop | 5 mm |
| Standover Height | 456 mm |
| Wheels | 20" |
Model Overview

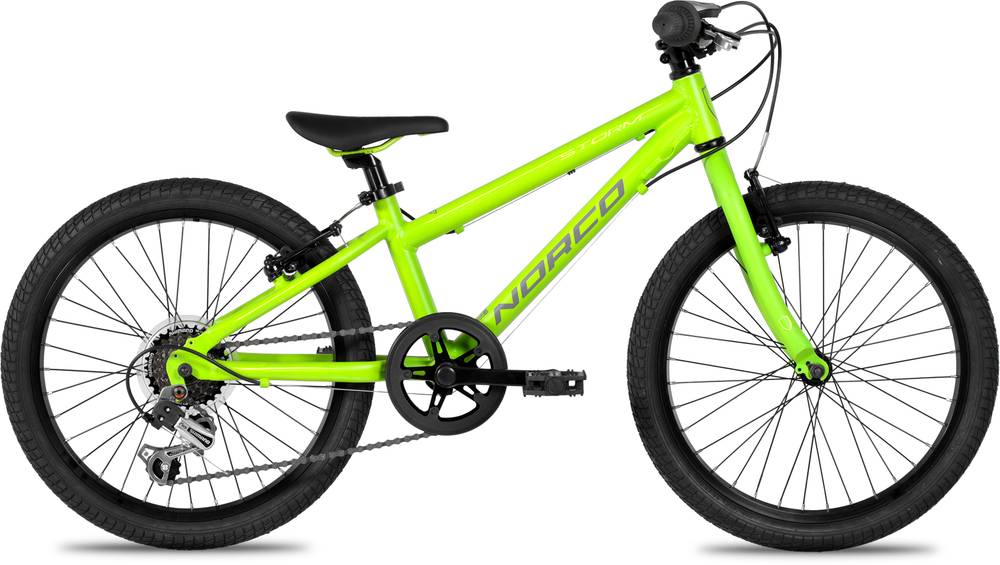

Storm 2.3 is a Norco Storm model. Norco released 177 frames variations of this model so far. Take a sneak peek at all Norco Storm frames models from 2017, by clicking here.
Model range prices
Norco Storm 2.3 2017 is the cheapest frame model and costs 269$. Norco Storm 4.1 2017 is the most expensive one and costs 449$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Mountain frames average price
If you want to purchase a solid Mountain frame, it is important to know that the average cost is 514$. However, even though the average price of a Mountain frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When Norco released this model in 2017, its price was 269$. Doing a quick comparison, we notice that Storm 2.3 price is 91.08% lower than the average cost of a Mountain frame.
Overview of components
Brakes
Stopping the bike when needed, it’s essential for your safety. This frame has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
