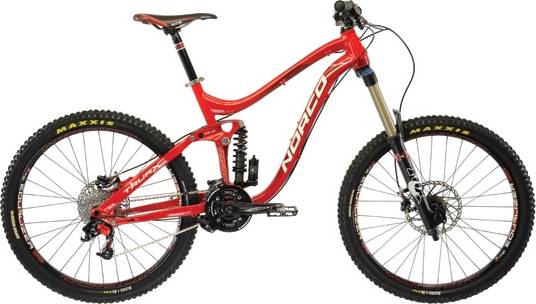

Norco Truax One 2012
2012 Mountain
Estimate price |
5,550$
Weight | 16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TRUAX freeride frame , 180 mm travel , hydroformed 6061 aluminum
Suspension Fork
Fox 36 180 mm Talas RC 2
Rear Shock
Fox DHX RC 2 coil
Drivetrain
Rear Derailleur
Shimano XT RD-M780 GS mid cage 10 speed
Front Derailleur
Shimano SLX 2 speed E type chainstay mount
Shift Levers
Shimano XT SL-M780 rapid fire
Cassette
SRAM PG-1050 10 sp 12-36t Cass.
Crank
E-13 DH/FR 10 spd crank 22/36 with bashguard
Bottom Bracket
N/A
Chain
SRAM PC 1051
Pedals
Black Spire Sub 400 flat pedal
Wheels
Front Hub
Sun Jumping Flea 20 mm front hub
Rear Hub
Sun Jumping Flea with Syntace X12 axle 142 x 12
Rims
Sun Inferno 29 welded w/eyelets
Spokes
DT competition double butted stainless spokes
Tires
Maxxis Minion DHF 26x2.35 Wire
Brakes
Brakes
Avid Elixer 9 hydraulic disc w/ 200 mm rotor
Brake Levers
Avid Elixer 9
Cockpit
Stem
Easton Havoc stem 50 mm ext.
Handlebar
Easton Havoc DH/ FR 20 mm rise bar 750 mm
Grips
Norco Lock on grips
Headset
FSA #57 E sealed ( tapered internal ) 1.5" to 1-1/8"""
Seat
Saddle
WTB Silverado Team with nicro tubular rails
Seatpost
Norco SL double bolt 2014 alloy post 3D forged
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.54 mm | 1.48 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm |
| Front Center | 699 mm | 719 mm | 744 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 96 mm | 96 mm | 96 mm |
| Stack | 603 mm | 608 mm | 617 mm |
| Reach | 378 mm | 396 mm | 417 mm |
| Top Tube Length | 572 mm | 592 mm | 617 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 405 mm | 445 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1144 mm | 1164 mm | 1189 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Standover Height | 794 mm | 784 mm | 774 mm |
| Front Travel | 180 mm | 180 mm | 180 mm |
| Rear Travel | 180 mm | 180 mm | 180 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Truax One is part of the Norco Truax model. Norco released 10 bikes variations of this model so far. Take a sneak peek at all Norco Truax bikes models from 2012, by clicking here.
Model range prices
Norco Truax Two 2012 is the most affordable bike of this model and has a price of 3550$. On the other hand, Norco Truax LE 2012, is the most expensive and costs 6785$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Downhill bikes
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5550$. In conclusion, this bike price is 63.67% more expensive than the price of the average Downhill bike.
Downhill bikes average weight
If we make a quick analysis of the average weight of a Downhill bike, we get 15.89 kg (35.03 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 16 kg (35.27 lbs), the Truax One model is slightly heavier than average. In other words, this model is 0.69% heavier than the average Downhill bike.
Overview of components
Fork
The Truax One comes factory-installed with the Fox Float 36 fork. This has a travel range of 180mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox DHX RC 2 coil, with a travel distance of 180mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Truax One are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Truax One has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Norco Truax One bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
