Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Front 180mm -
Fork Fox Float 36
-
Groupset X9, SLX -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
2012 Truax Team frame
Suspension Fork
Fox 36 180 Talas RC 2
Rear Shock
Fox DHX RC 2 coil
Drivetrain
Rear Derailleur
SRAM X-9
Front Derailleur
Shimano SLX 2 speed FDM-665 E5
Shift Levers
SRAM X-9 shifter (front 3 speed)
Cassette
CS PG-1050 CASSETTE 10SP 12-36
Crank
Race Face Atlas AM (170 G) 50 mm
Bottom Bracket
N/A
Chain
SRAM PC 1051
Chain Tensioner
E-13 Dual Ring security
Pedals
Black Spire flat pedals (Sub 400 model)
Wheels
Front Hub
Sun Jumping Flea 20 mm front hub
Rear Hub
Sun Jumping Flea 142 x 12
Rims
SUN Equalizer 29 welded w/eyelets
Spokes
DT competition butted spokes
Tires
Maxxis Minion DHF 26x2.35 Wire
Brakes
Brakes
Avid Elixer R disc brake 203 mm rotor BLACK
Brake Levers
G3 Clean Sweep 203 mm rotors
Cockpit
Stem
Race Face Atlas AM (170 G) 50 mm
Handlebar
Race Face Altas FR .5 riser bar
Grips
Velo Norco Lock on grips
Headset
FSA #57 E ( tapered internal ) 1.5" to 1-1/8"
Seat
Saddle
WTB Silverado (micro tubular)
Seatpost
Norco SL double bolt 2014 alloy post 3D forged
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm |
| Front Center | 698 mm | 719 mm | 745 mm |
| Top Tube Length | 572 mm | 592 mm | 617 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 405 mm | 445 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1143 mm | 1164 mm | 1190 mm |
| Bottom Bracket Drop | -12 mm | -12 mm | -12 mm |
| Standover Height | 754 mm | 770 mm | 778 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

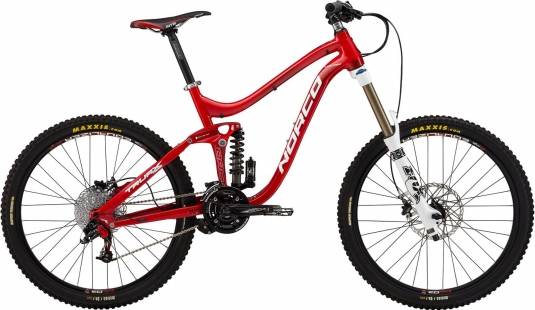

Model Overview
Truax Team is part of the Norco Truax model. There are 10 bikes that carry this model name. You can get a glimpse at all models from 2011, by clicking on this link.
Model range prices
The most economical model, the Norco Truax 1 2011 has a starting price of 3745$. Norco Truax Team 2011 on the other hand is the most expensive at 5190$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Downhill bikes average price
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Norco released this model in 2011, its price was 5190$. Doing a quick comparison, we notice that Truax Team price is 53.05% more expensive than the average cost of a Downhill bike.
Truax Team components
Fork
This bike has the Fox Float 36 fork installed. The fork’s travel is 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Truax Team are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Truax Team has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
