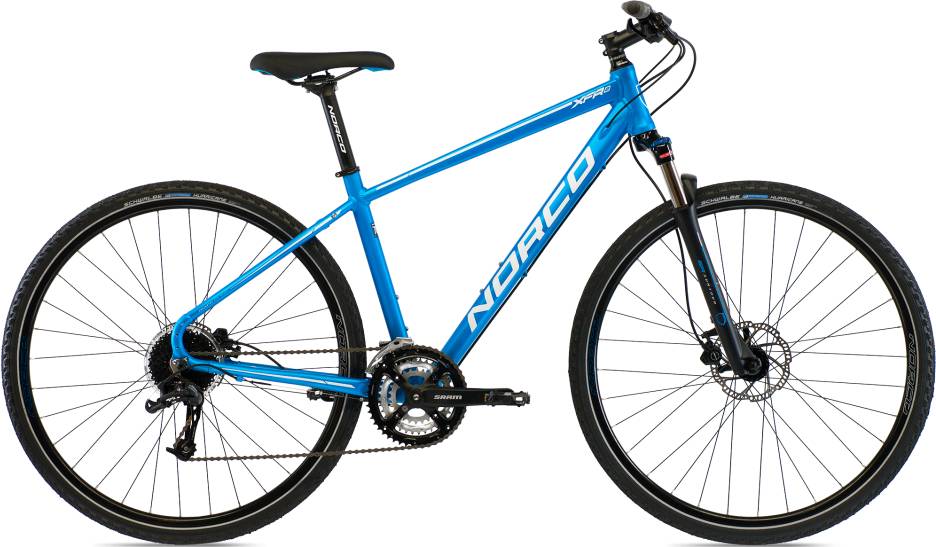

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour NRX D
-
Groupset X5, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
XFR Double Butted 7005 w/Chainstay Disc
Suspension Fork
SR Suntour NRX-D 75mm w/lock-out
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X5 - Black
Front Derailleur
Shimano Acera FD-M390
Shift Levers
Shift housing - Black
Cassette
SRAM PG-920 11-34T 9 speed
Crank
SRAM S650 3.0 Power Spline 48/36/26 - Black
Bottom Bracket
SRAM Power Spline Cartridge BB
Chain
SRAM CN-PC951 9speed
Chain Tensioner
N/A
Pedals
Alloy pedal - Black
Wheels
Front Hub
SRAM 306 Disc Hubs - 32h - Black
Rear Hub
SRAM 306 Disc Hubs - 32h - Black
Rims
Double wall alloy 700c x 32hole - Black
Tires
Schwalbe Hurricane 700x40c w/RaceGuard
Brakes
Brakes
Avid DB-1 Hydraulic Discs w/160mm Rotor
Brake Levers
Avid DB-1 Hydraulic Discs
Disk Rotors
N/A
Cockpit
Stem
Norco - Black
Handlebar
Norco 25mm Riser
Grips
Dual Density Ergonomic - Black/Grey
Headset
FSA ZS-4D ACB Cartridge w/12mm spacer
Seat
Saddle
Norco Urban - Black
Seatpost
Norco Alloy 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" | 16" | 18" | 20" | 22" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.63 mm | 1.62 mm | 1.6 mm | 1.57 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 299 mm | 299 mm |
| Front Center | 619 mm | 628 mm | 637 mm | 651 mm | 665 mm |
| Rake | 38 mm | 38 mm | 37 mm | 37 mm | 38 mm |
| Trail | 87 mm | 83 mm | 81 mm | 81 mm | 77 mm |
| Stack | 615 mm | 626 mm | 638 mm | 647 mm | 659 mm |
| Reach | 372 mm | 383 mm | 394 mm | 405 mm | 421 mm |
| Top Tube Length | 549 mm | 569 mm | 589 mm | 609 mm | 629 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 365 mm | 412 mm | 459 mm | 510 mm | 562 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1066 mm | 1075 mm | 1084 mm | 1098 mm | 1113 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 732 mm | 779 mm | 800 mm | 824 mm | 853 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
XFR 2 completes the Norco Xfr model. There are 76 bikes that carry this model name. Take a sneak peek at all Norco Xfr bikes models from 2015, by clicking here.
Model range prices
Norco XFR 4 2015 is the most affordable bike of this model and has a price of 535$. On the other hand, Norco XFR 1 2015, is the most expensive and costs 1035$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2015 for 815$. In conclusion, this bike price is 45.02% higher than the price of the average Hybrid bike.
Overview of components
Fork
The XFR 2 comes factory-installed with the SunTour NRX D fork. This has a travel range of 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the XFR 2 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The XFR 2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
