Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour NRX D
-
Groupset X5, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
XFR Double Butted 7005 w/Chainstay Disc
Suspension Fork
SR Suntour NRX-D 75mm w/lock-out
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X5 - Black
Front Derailleur
Shimano Acera FD-M390
Shift Levers
Shift housing - Black
Cassette
SRAM PG-950 11-32T 9 speed
Crank
SRAM S650 3.0 Power Spline 48/36/26 - Black
Bottom Bracket
SRAM Power Spline Cartridge BB
Chain
SRAM CN-PC951 9speed
Chain Tensioner
N/A
Pedals
Alloy pedal - Black
Wheels
Front Hub
SRAM 306 Disc Hubs - 32h - Black
Rear Hub
SRAM 306 Disc Hubs - 32h - Black
Rims
Double wall alloy 700c x 32hole - Black
Tires
Schwalbe Smart Sam 700x40c
Brakes
Brakes
Avid Elixir 1 w/160mm rotors - Black
Brake Levers
Avid Elixir 1 hydraulic disc levers
Disk Rotors
N/A
Cockpit
Stem
Norco - Black w/Pink
Handlebar
Norco 25mm Riser - Black w/Pink
Grips
X-Over Dual Density - Black/Pink
Headset
FSA ZS-4D ACB Cartridge w/12mm spacer
Seat
Saddle
Norco Forma Urban - Black
Seatpost
Norco Alloy 31.6mm - Black w/Pink
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 14.5" | 16" | 18" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.65 mm | 1.64 mm | 1.62 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 299 mm | 299 mm |
| Front Center | 609 mm | 619 mm | 628 mm | 637 mm |
| Rake | 38 mm | 38 mm | 38 mm | 37 mm |
| Trail | 90 mm | 87 mm | 83 mm | 81 mm |
| Stack | 602 mm | 614 mm | 625 mm | 637 mm |
| Reach | 360 mm | 371 mm | 382 mm | 393 mm |
| Top Tube Length | 528 mm | 548 mm | 568 mm | 588 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 330 mm | 365 mm | 412 mm | 459 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1050 mm | 1060 mm | 1069 mm | 1078 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 720 mm | 731 mm | 778 mm | 799 mm |
| Front Travel | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

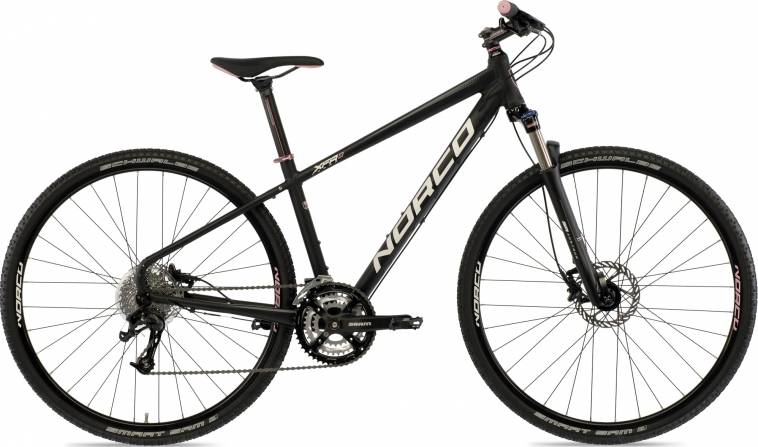

XFR 2 Forma is a Norco Xfr model. 76 bikes variations carry this model name so far. Take a sneak peek at all Norco Xfr bikes models from 2014, by clicking here.
Model range prices
Norco XFR 3 Forma 2014 is the most economical model, with a starting price of 675$. Norco XFR 1 2014 on the other hand costs 1099$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2014 for 875$. Comparing this to the average Hybrid bike price, we see that the price is 55.69% higher.
XFR 2 Forma components
Fork
The XFR 2 Forma comes factory-installed with the SunTour NRX D fork. This has a travel range of 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the XFR 2 Forma bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco XFR 2 Forma is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
