Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XXS
145cm - 159cm
XS
157cm - 168cm
SM
165cm - 176cm
MD
174cm - 183cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Double Butted X6 Aluminum
Suspension Fork
SR Suntour NVX, 75mm
Drivetrain
Rear Derailleur
Shimano Altus RD-M310
Front Derailleur
Shimano Tourney FD-TY510
Shift Levers
Rear: Shimano ST-EF500 Easy-Fire, 7 speed, Front: Shimano ST-EF500 Easy-Fire, 3 speed
Cassette
Shimano HG200 12-32T
Crank
Shimano FC-TY301, 48/38/28T
Bottom Bracket
Cartridge Bearing, Threaded
Chain
KMC Z7
Pedals
City
Wheels
Front Hub
Weather Sealed Disc
Rear Hub
Weather Sealed Disc
Rims
WTB SX19
Tires
Impac Smartpac 700x47c
Brakes
Brakes
Tektro MD-M280 Mechanical Disc
Brake Levers
Shimano Easy-Fire, 2-finger
Cockpit
Stem
Aluminum
Handlebar
Norco Aluminum, 25mm Rise
Grips
Slim
Headset
Zero-Stack Internal
Seat
Saddle
Norco Women's Sport
Seatpost
Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.65 mm | 1.6 mm | 1.56 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 291 mm |
| Front Center | 611 mm | 627 mm | 642 mm | 658 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 83 mm | 80 mm | 77 mm | 73 mm |
| Stack | 608 mm | 619 mm | 629 mm | 640 mm |
| Reach | 358 mm | 375 mm | 392 mm | 409 mm |
| Top Tube Length | 526 mm | 551 mm | 576 mm | 601 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 73.7 ° | 73.3 ° |
| Seat Tube Length | 350 mm | 390 mm | 430 mm | 470 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 100 mm | 107.5 mm | 115 mm | 130 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1058 mm | 1074 mm | 1089 mm | 1107 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 63 mm |
| Standover Height | 486 mm | 486 mm | 494 mm | 500 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 145 cm | 157 cm | 165 cm | 174 cm |
| Rider Max Height | 159 cm | 168 cm | 176 cm | 183 cm |

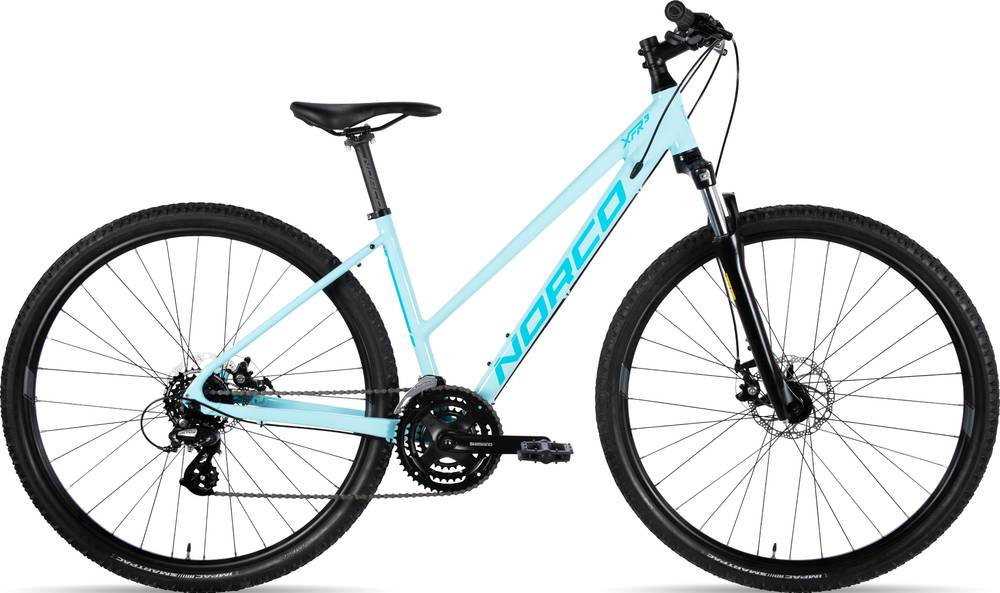

Model Overview
XFR 3 Step-Thru is part of the Norco Xfr model. Norco launched 76 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Norco XFR 4 2020 is the most affordable bike of this model and has a price of 549$. On the other hand, Norco XFR 1 2020, is the most expensive and costs 799$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 599$. Comparing this to the average Hybrid bike price, we see that the price is 6.58% more expensive.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The XFR 3 Step-Thru 2020 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The XFR 3 Step-Thru has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 145 cm – 183 cm (4.76 ft – 6 ft). In conclusion, you won’t have a problem finding one that suits you.
