Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
158cm - 168cm
MD
166cm - 176cm
LG
174cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X6 Aluminum, Step Thru
Suspension Fork
SR Suntour XCE28, 80mm
Drivetrain
Rear Derailleur
Shimano RD-TX800
Front Derailleur
Shimano Tourney FD-TY710
Shift Levers
Shimano ST-EF500 EZ-Fire
Cassette
11-32T, 7 Speed
Crank
Prowheel Alloy, 48/38/28T, 170mm (XS, S, M), 175mm (L, XL)
Bottom Bracket
Cartridge Bearing, BSA Threaded
Chain
KMC Z7
Pedals
City, Black
Wheels
Front Hub
Alloy, Weather Sealed, 9x100mm, 6-bolt
Rear Hub
Alloy, Weather Sealed, 10x135mm, HG, 6-bolt
Rims
WTB SX19 Double Wall, 29", 32H
Tires
Kenda 700x50c Fast Rolling
Brakes
Brakes
Mechanical Disc
Brake Levers
Shimano Easy-Fire w/2-finger lever
Disk Rotors
160mm
Cockpit
Stem
Aluminum, 60mm Reach, 31.8mm Clamp
Handlebar
Aluminum, 660mm (XS), 680mm (S, M) 700mm (L, XL), 25mm Rise
Grips
Norco
Headset
Zero-Stack Internal
Seat
Saddle
Norco Sport
Seatpost
Aluminum, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.73 mm | 1.66 mm | 1.59 mm | 1.53 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 621 mm | 650 | 680 mm | 711 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 627 mm | 641 mm | 655 mm | 669 mm |
| Reach | 362 mm | 387 mm | 412 mm | 437 mm |
| Top Tube Length | 540 mm | 569 mm | 598 mm | 627 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 155 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1069 mm | 1099 mm | 1129 mm | 1160 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 538 mm | 536 mm | 535 mm | 533 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 158 cm | 166 cm | 174 cm |
| Rider Max Height | 161 cm | 168 cm | 176 cm | 184 cm |
Model Overview

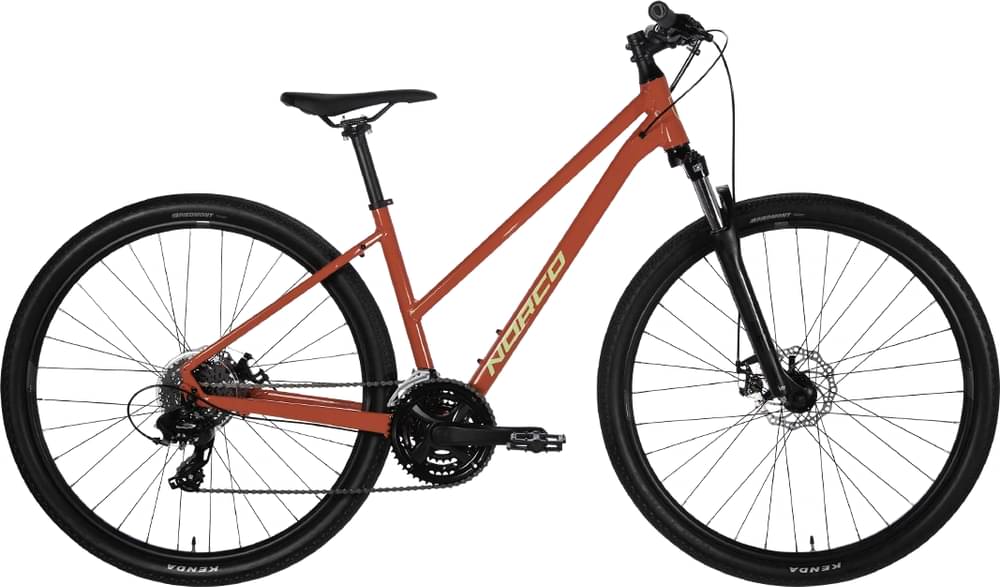

XFR 3 Step-Thru is a Norco Xfr model. 76 bikes variations carry this model name so far. Take a sneak peek at all Norco Xfr bikes models from 2021, by clicking here.
Model range prices
Norco XFR 3 2021 is the cheapest bike model and costs 679$. Norco XFR 1 2021 is the most expensive one and costs 879$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2021 and its price was 679$. Comparing the average cost of a Hybrid bike to this one, you will see that XFR 3 Step-Thru price is 20.82% more expensive.
Overview of components
Fork
This bike has the SunTour fork installed. The fork’s travel is 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The XFR 3 Step-Thru 2021 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The XFR 3 Step-Thru has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 184 cm (4.99 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
