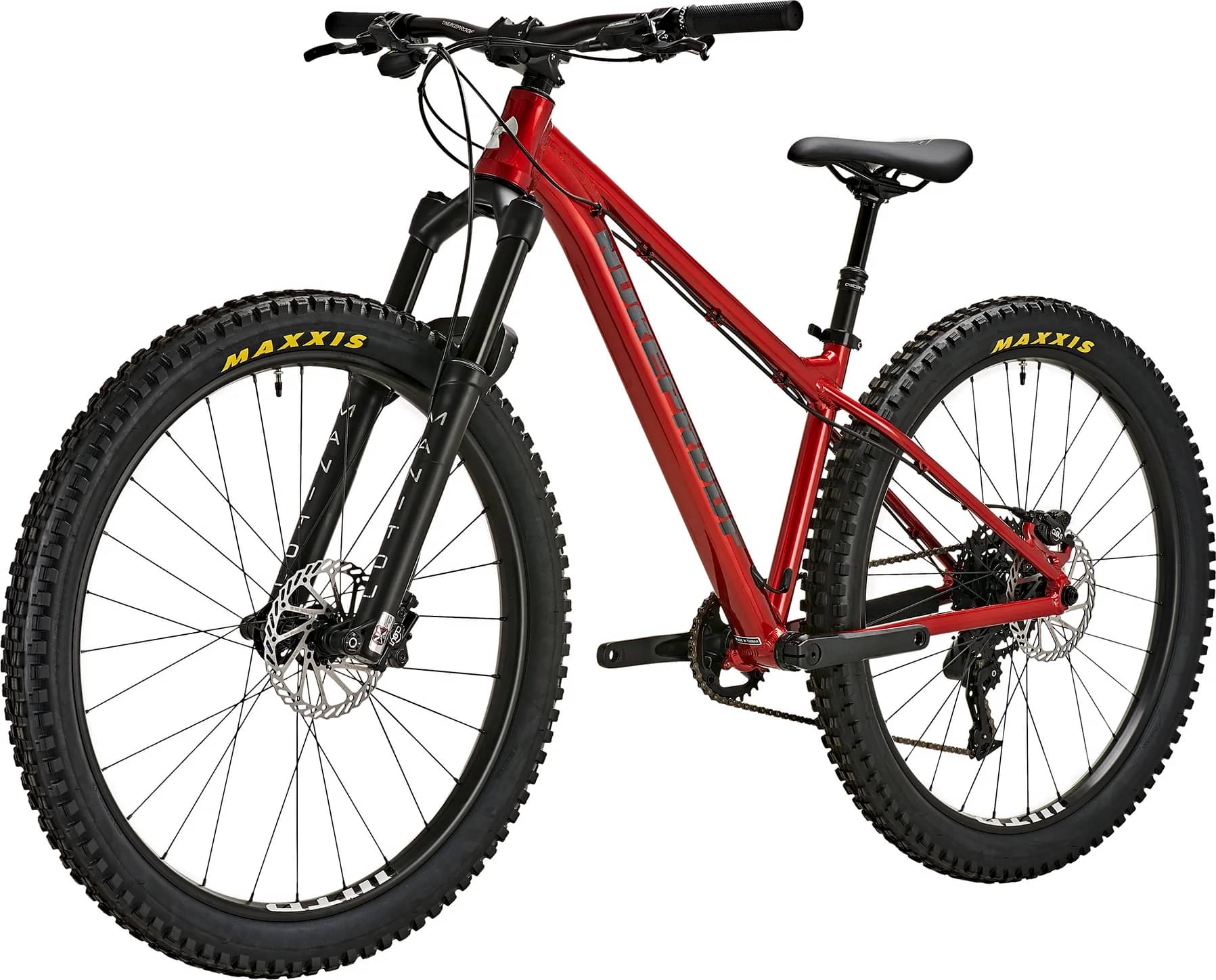

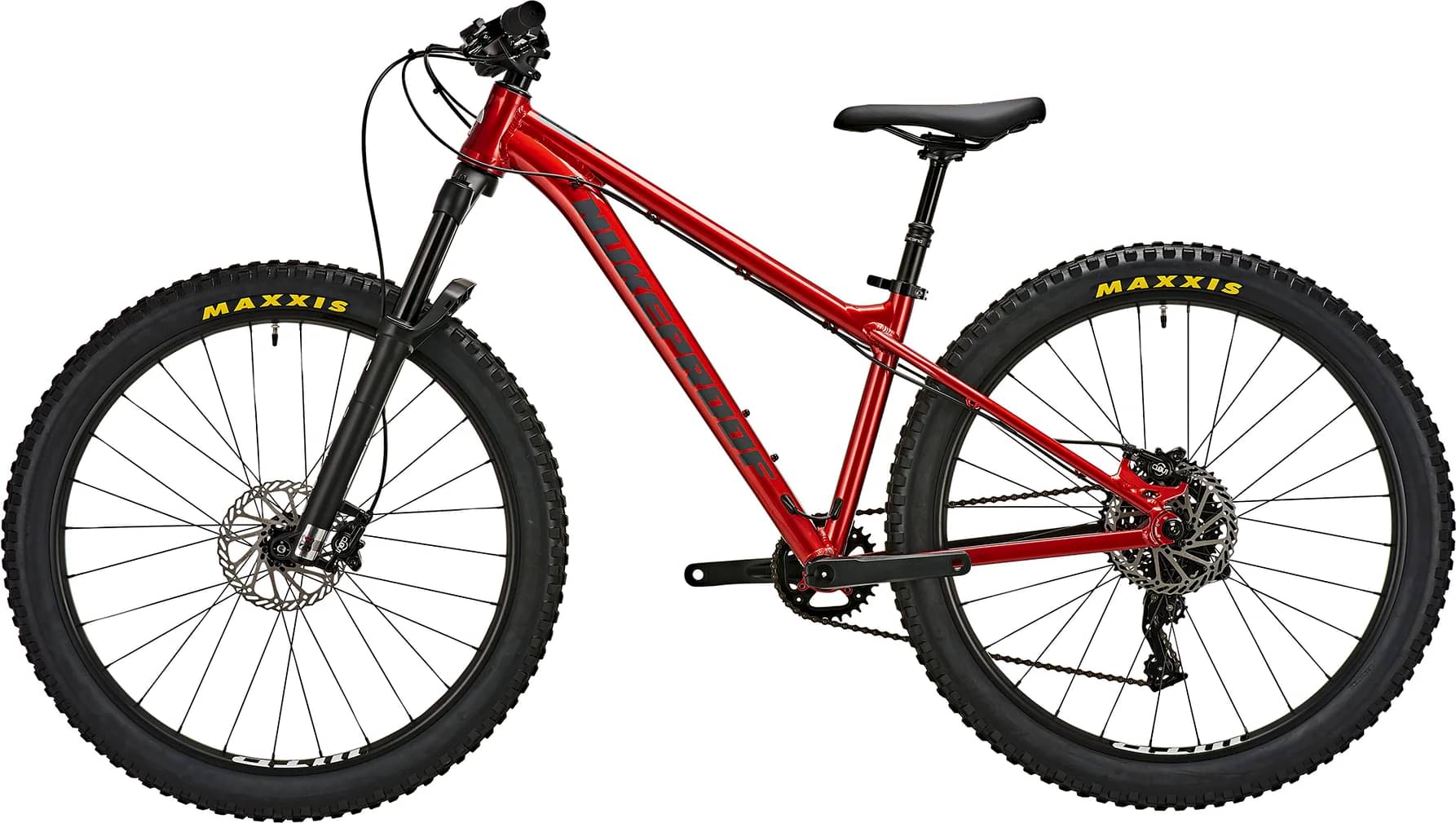

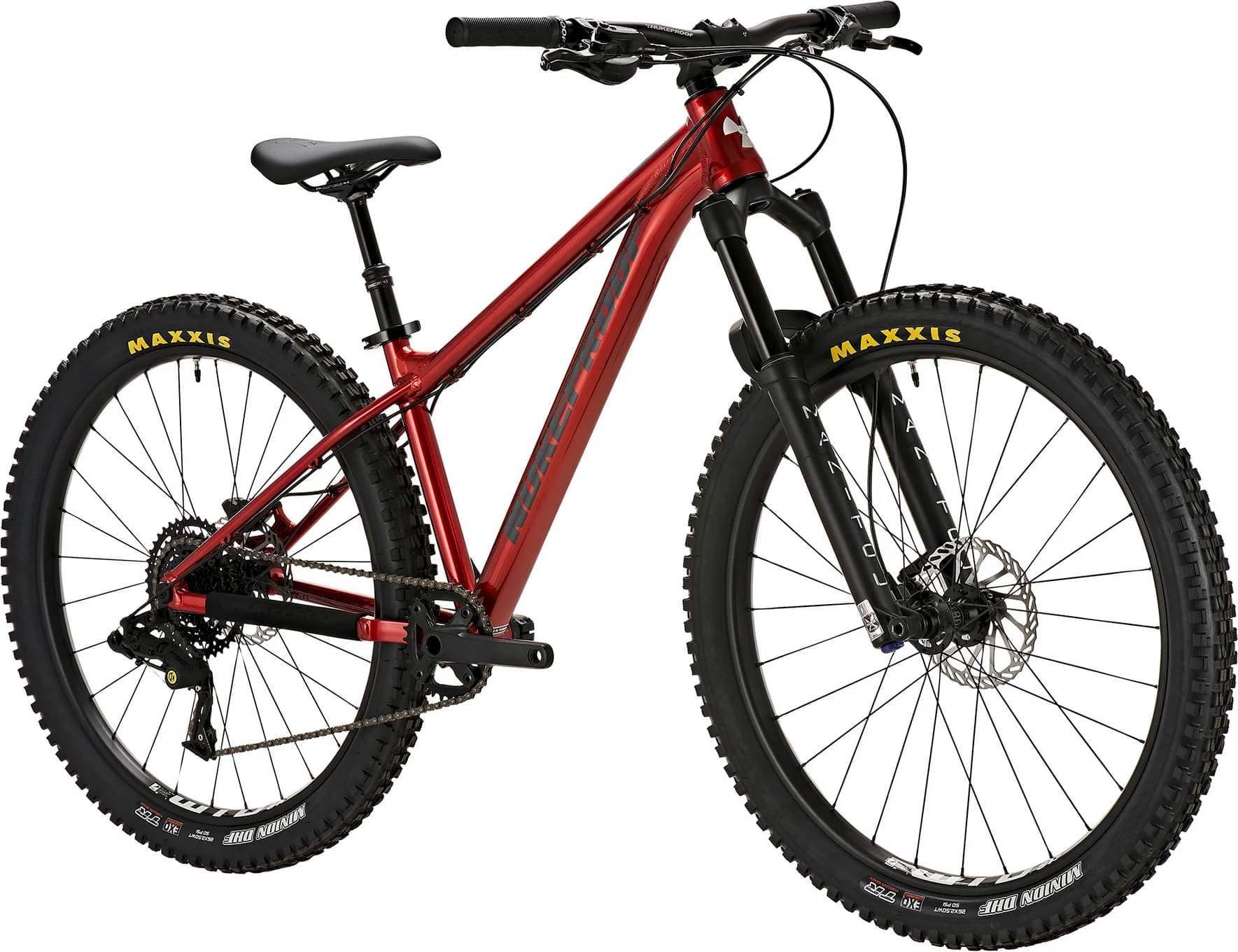

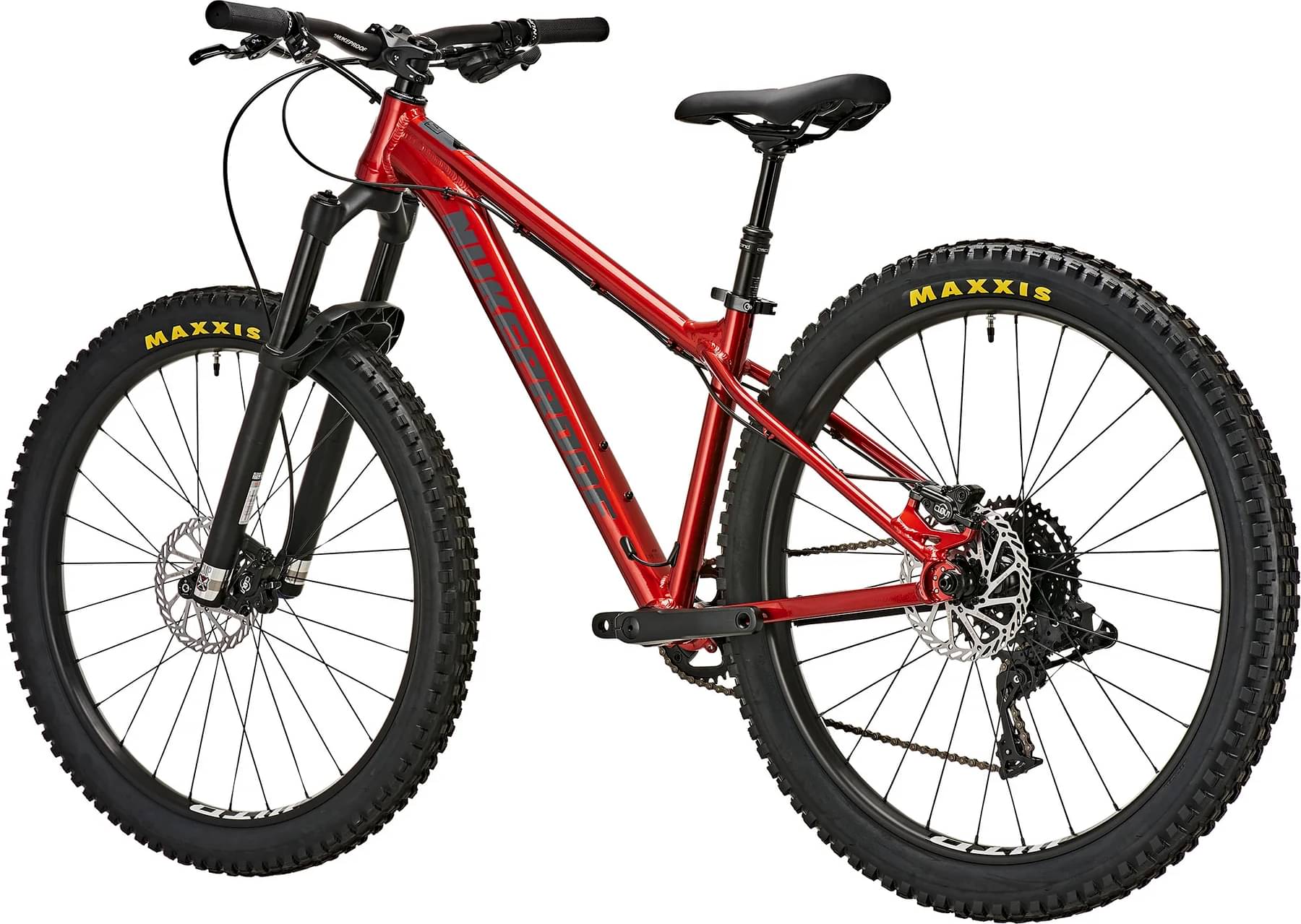

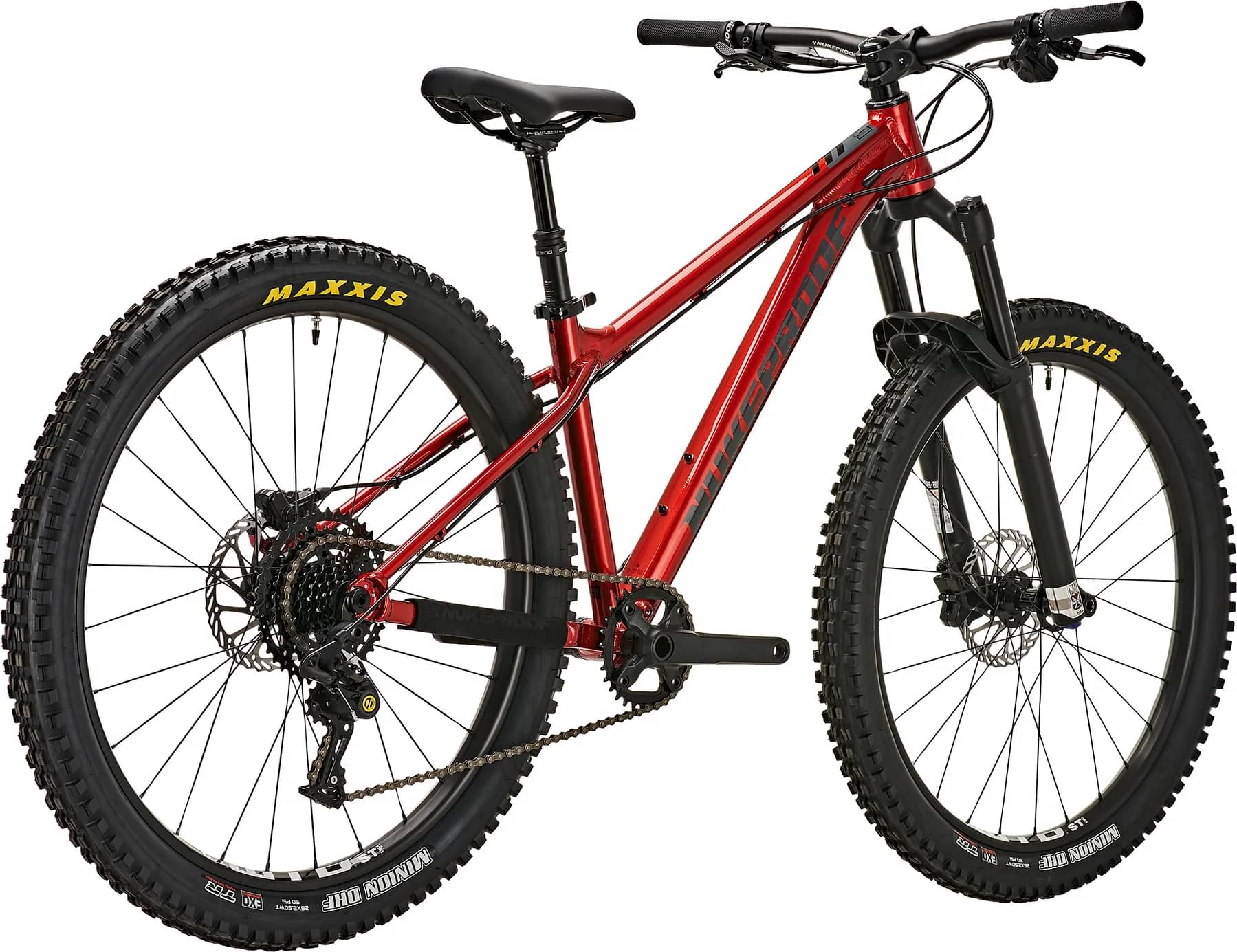

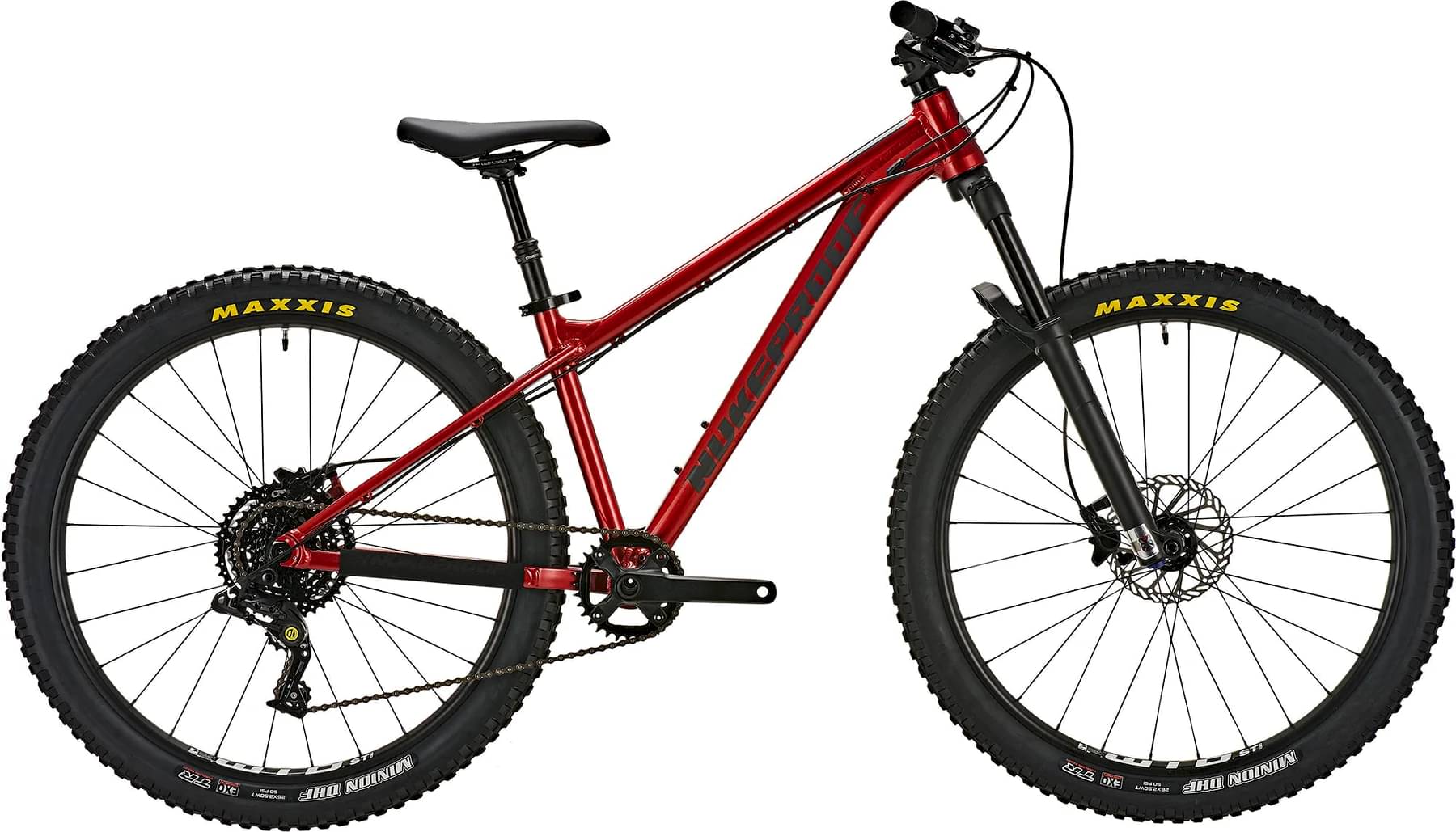

Nukeproof Cub Scout 26 Race (Box) 2023
2023 Youth
Estimate price |
1,299$
Weight | 12.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou Machete Comp
-
Groupset Box Four -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Cub-Scout 26”, custom butted hydro-formed 6061 Alloy, internal cable routing for dropper seat post, threaded bottom bracket, 142mm Bolt-thru rear axle spacing
Suspension Fork
Manitou Machete Comp 27.5” TS Air, 120mm Travel, Custom Kids tune, 1.5 Tapered Steerer, 37mm Offset, BOOST 15x110mm Bolt-thru Axle
Rear Shock
NA

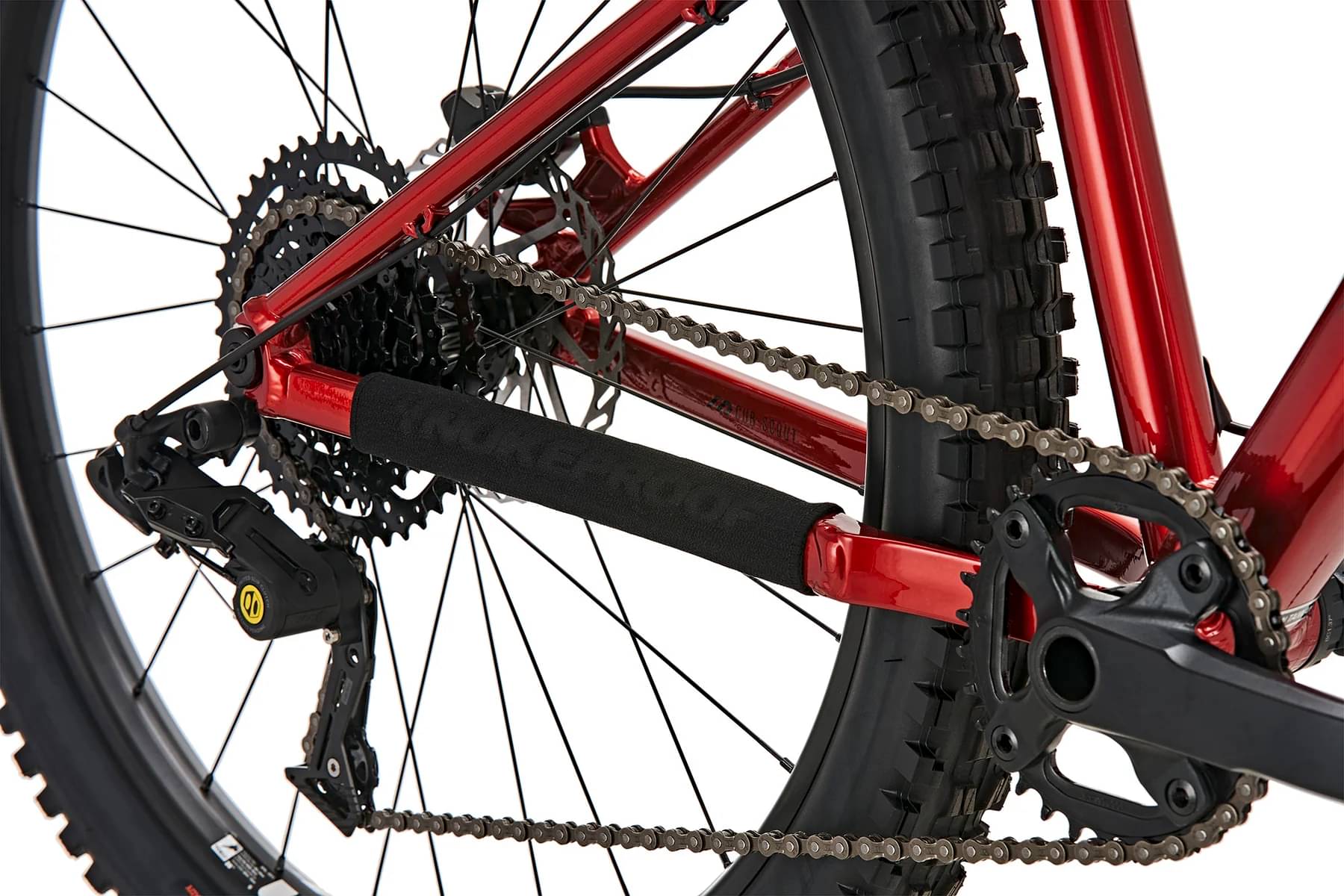

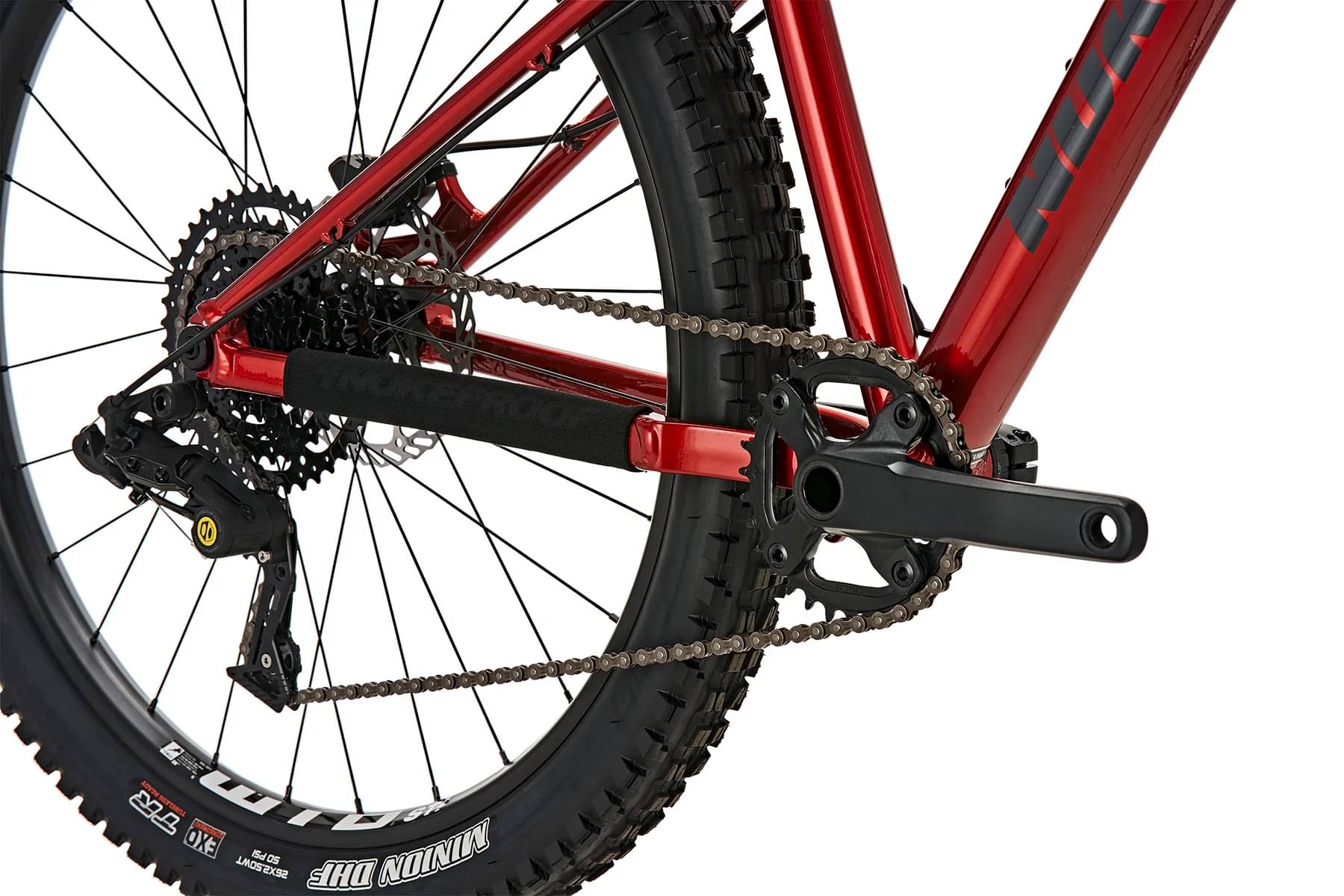

Drivetrain
Rear Derailleur
BOX Four 8-Speed
Shift Levers
BOX Four 8-Speed
Cassette
Sunrace CSMS2 10-Speed, 11-42T

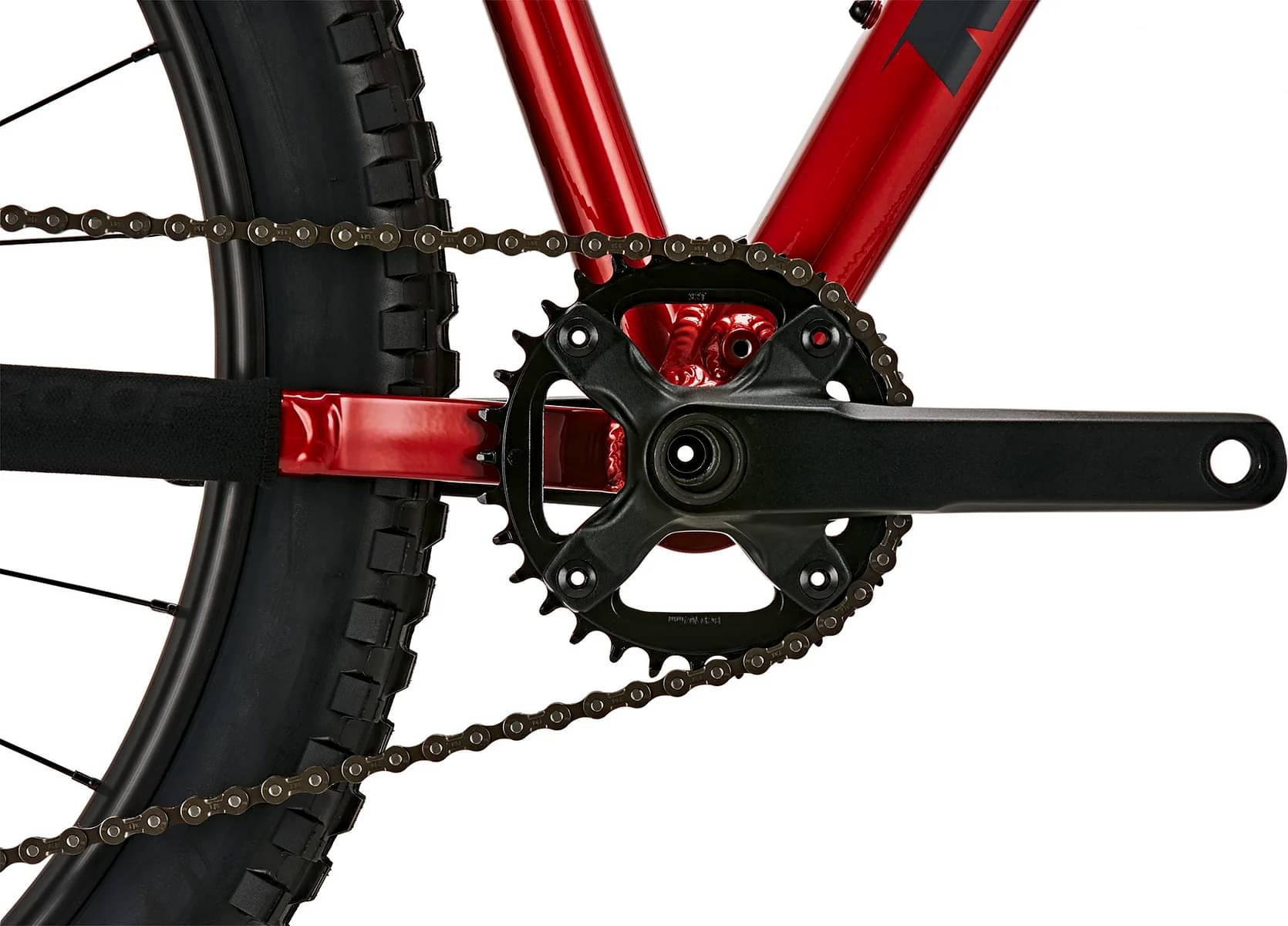

Crank
Samox TAF38J 2 Piece Crank 160mm, 32T, BCD 104mm
Bottom Bracket
BSA, threaded
Chain
BOX Four 8-Speed
Chain Guide
N/A
Wheels
Rims
Front: Nukeproof Neutron 15x110mm BOOST hub on WTB STi30 26"" TCS Rim, Rear: Nukeproof Neutron 12x142mm hub on WTB STi30 26"" TCS Rim
Tires
Front & Rear: Maxxis Minion DHF 26"" x 2.5” EXO TR (Tubeless Ready)

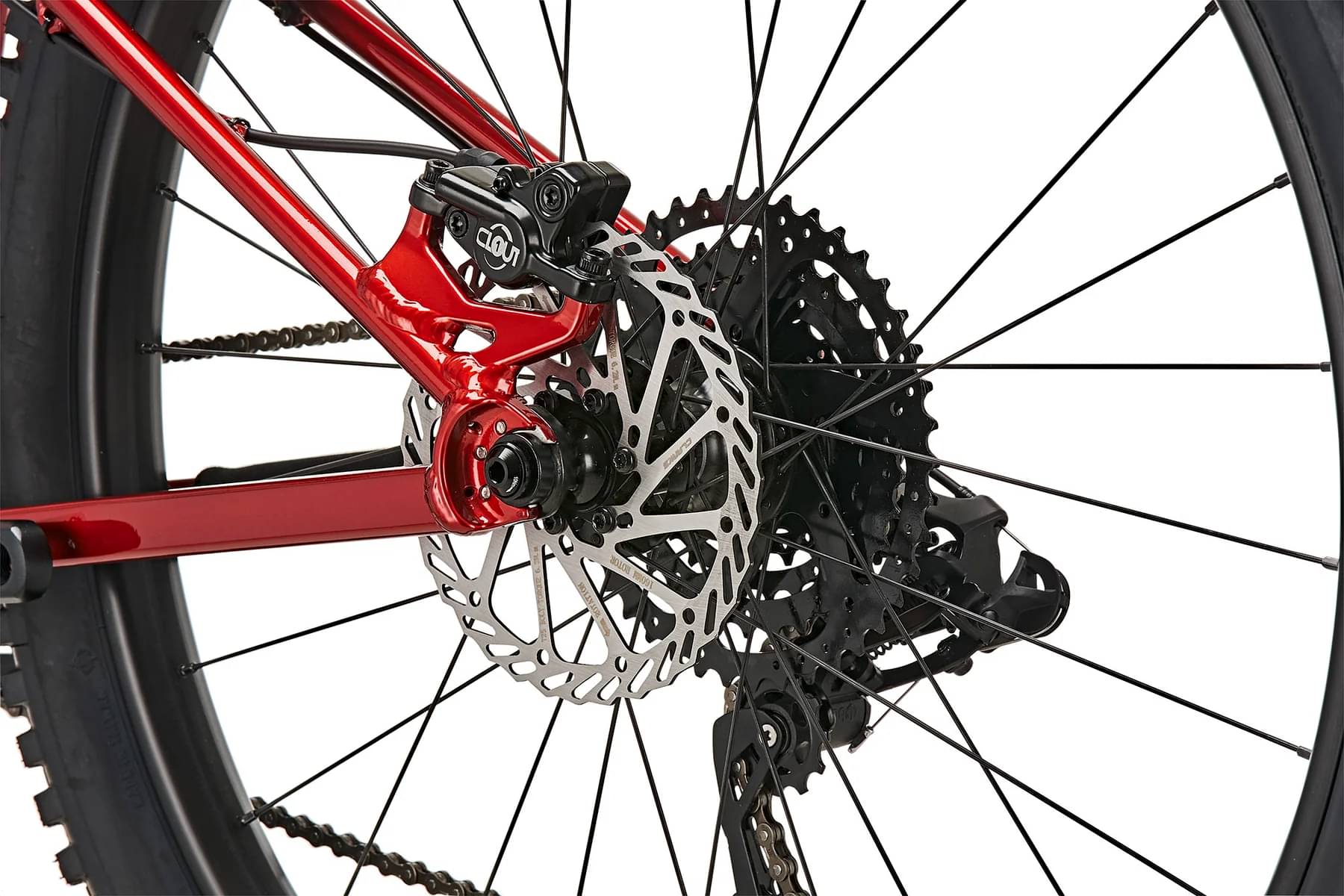

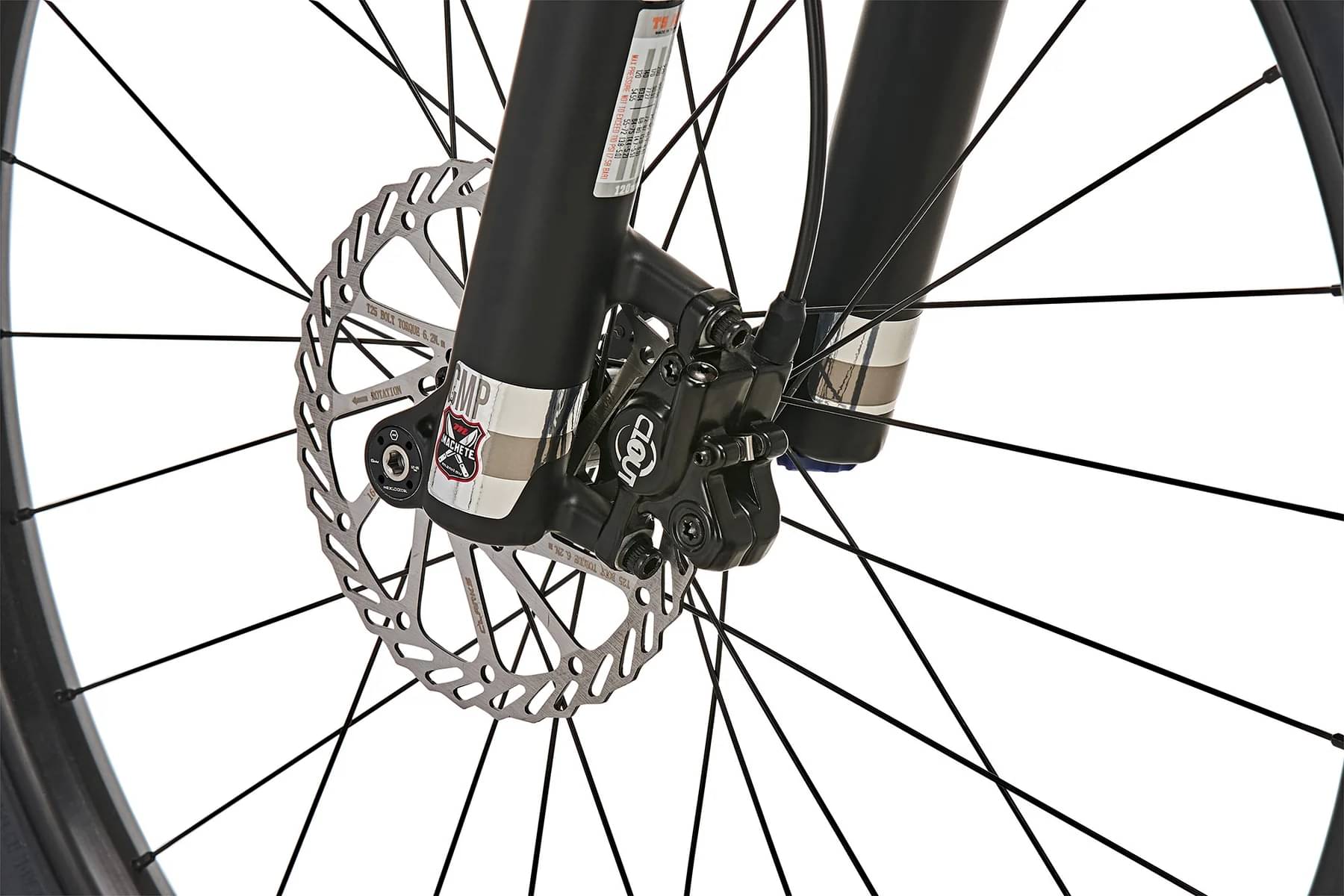

Brakes
Brakes
Clarkes Kids Specific Hydraulic Brakes

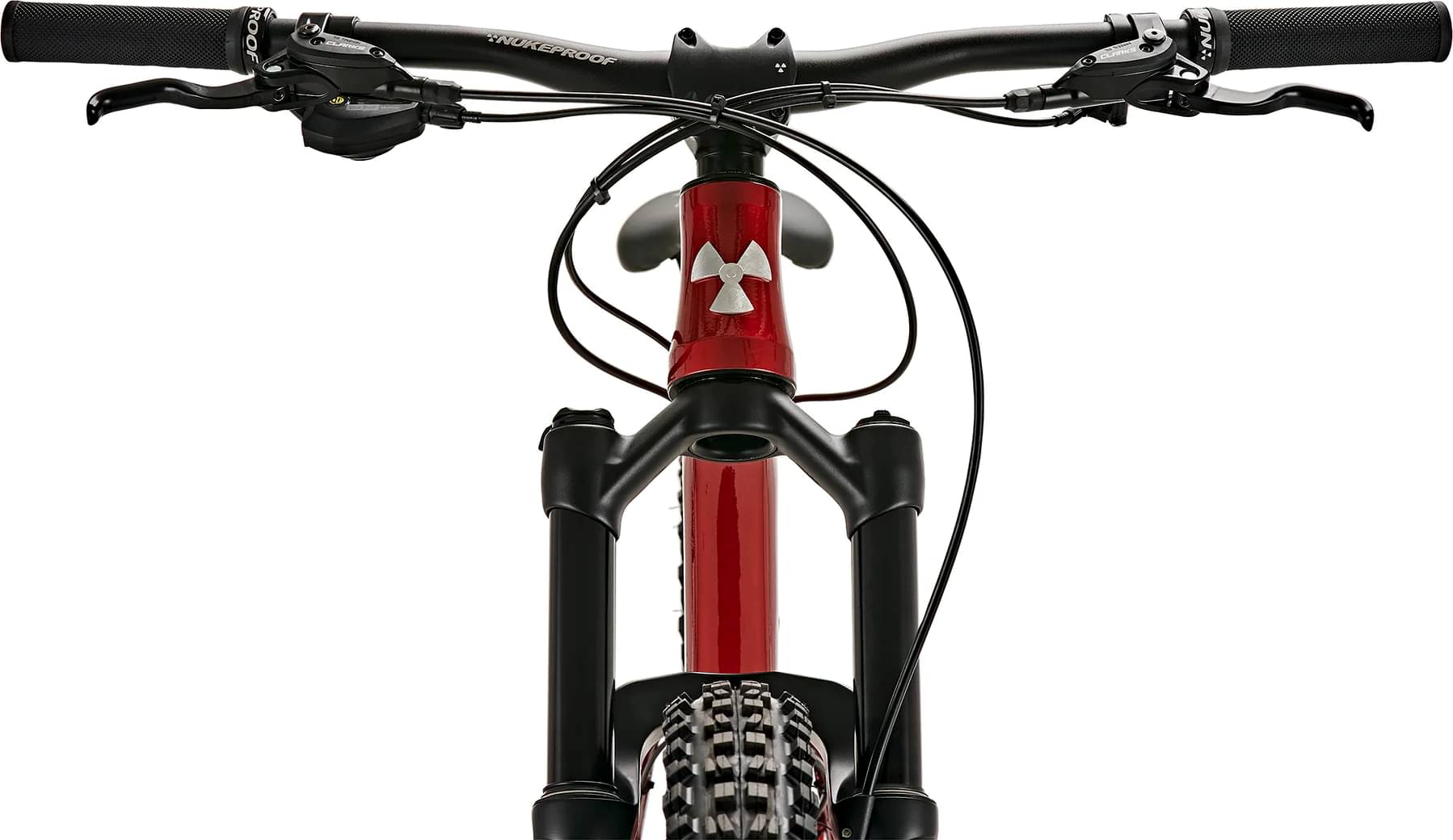

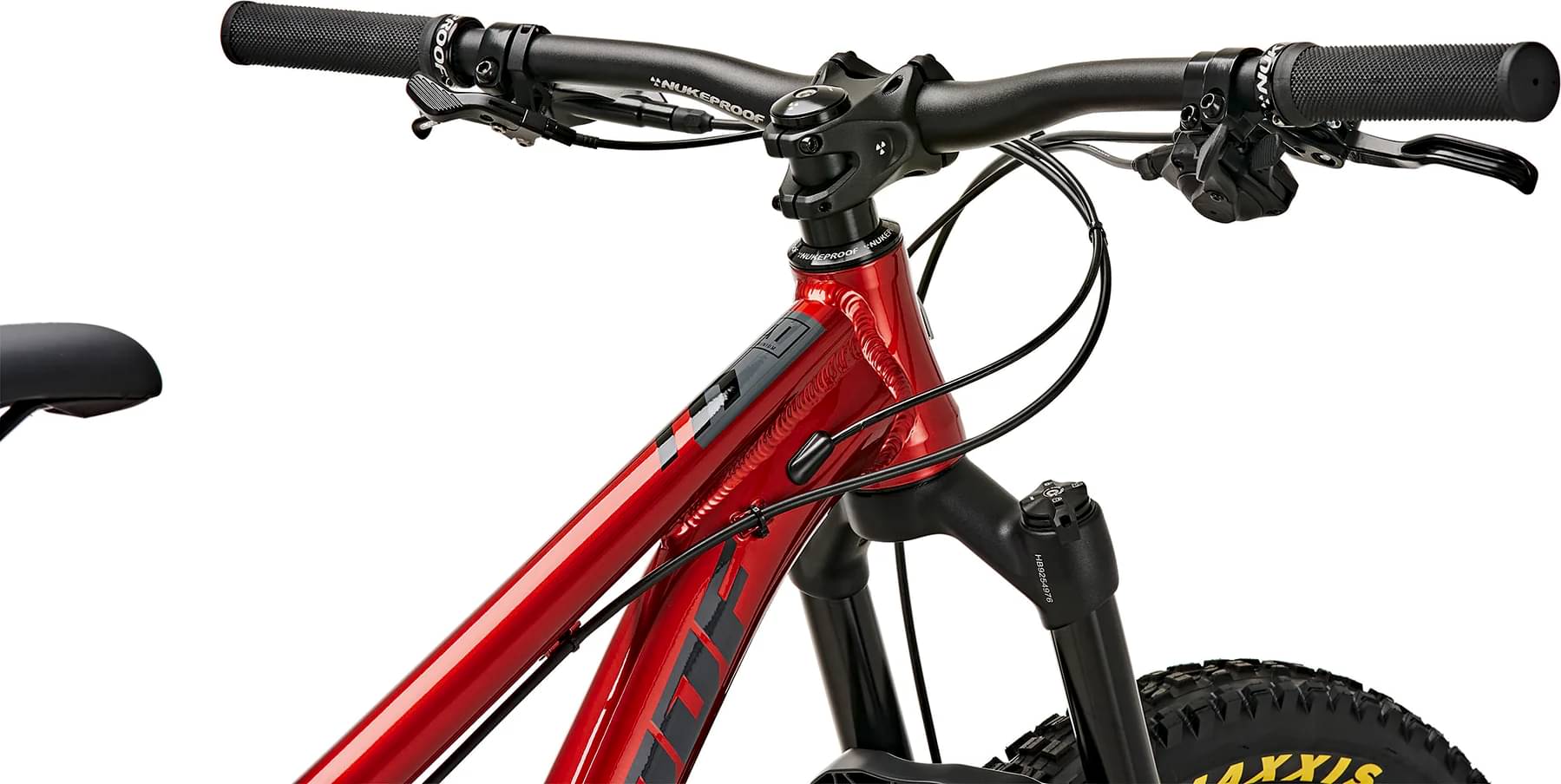

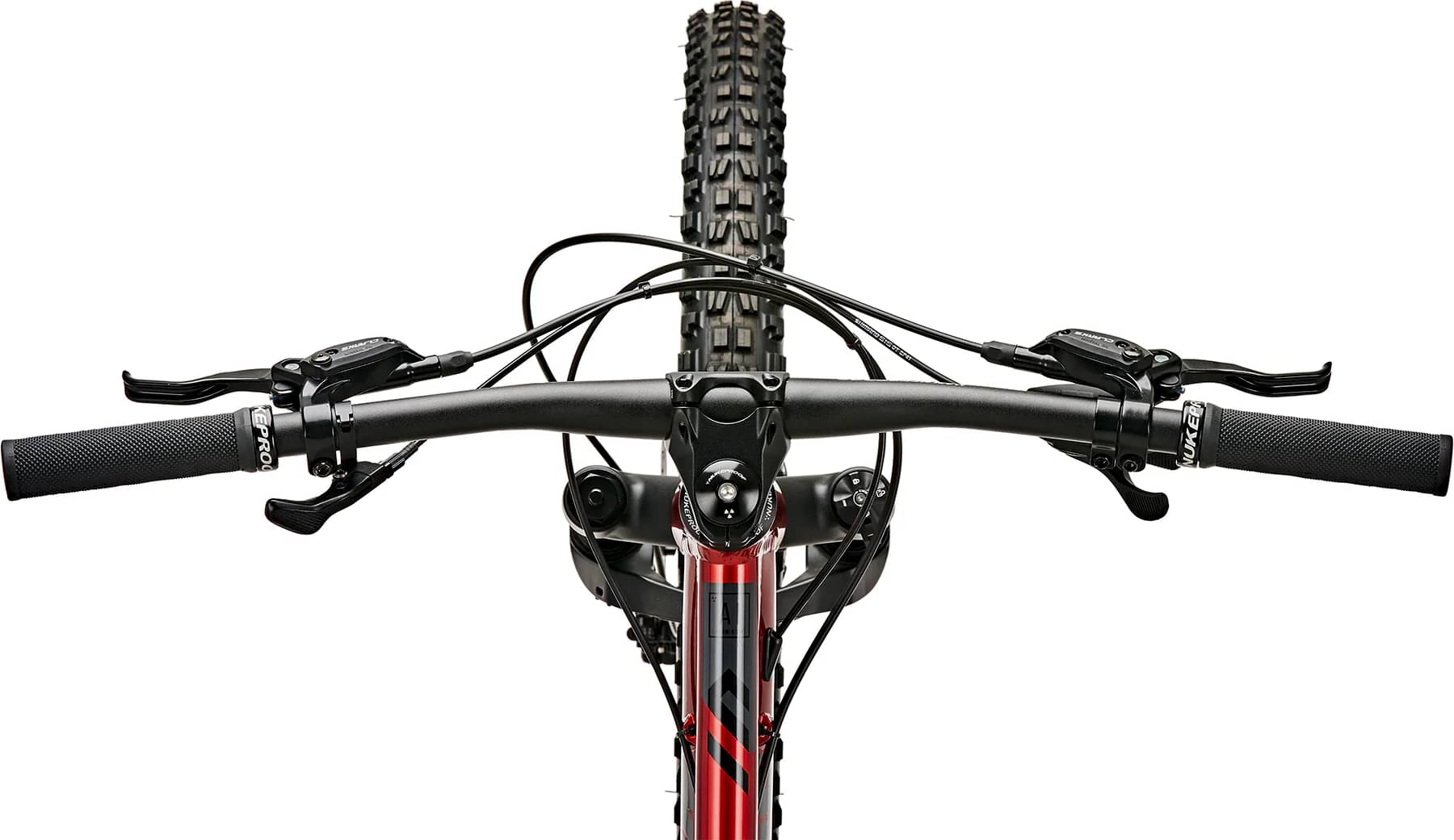

Cockpit
Stem
Nukeproof Neutron AM, 45mm, black
Handlebar
Nukeproof Urchin 700mm Wide, 15mm Rise, 31.8mm Clamp
Grips
Nukeproof Urchin Single Clamp lock on, 132mm Long, Soft Compound
Headset
Nukeproof Warhead, ZS44-56
Seat
Saddle
Nukeproof Urchin, Black
Seatpost
Brand-X Dropper, Black, 27.2mm, 315mm Long, 70mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" | 24" | 26" |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.63 mm | 1.62 mm |
| Bottom Bracket Height | 240 mm | 280.5 mm | 296.5 mm |
| Front Center | 541 mm | 592 mm | 661 mm |
| Rake | 38 mm | 38 mm | 46 mm |
| Trail | 78.14 mm | 74.63 mm | 77.43 mm |
| Stack | 468.5 mm | 543 mm | 593 mm |
| Reach | 312 mm | 334 mm | 367 mm |
| Top Tube Length | 460 mm | 504.5 mm | 551 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.75 ° |
| Seat Tube Length | 265 mm | 320 mm | 360 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 356 mm | 406 mm | 421 mm |
| Wheelbase | 895 mm | 994 mm | 1077 mm |
| Bottom Bracket Drop | 35 mm | 45 mm | 47 mm |
| Standover Height | 519 mm | 617 mm | 656 mm |
| Front Travel | 80 mm | 100 mm | 120 mm |
| Wheels | 26" | 26" | 26" |
Model Overview
Cub Scout 26 Race (Box) is a Nukeproof Cub model. 34 bikes variations carry this model name so far. Take a sneak peek at all Nukeproof Cub bikes models from 2023, by clicking here.
Model range prices
Nukeproof Cub Scout 20 Sport 2023 is the most affordable bike of this model and has a price of 899$. On the other hand, Nukeproof Cub Scout 20 Race 2023, is the most expensive and costs 1299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Mountain bikes average price
According to our math, the average price for a trustworthy Mountain bike is 616$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Mountain bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 1299$. Comparing this to the average Mountain bike price, we see that the price is 110.88% higher.
Mountain bikes average weight
The average weight for Mountain bikes is 11.16 kg (24.6 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 12.7 kg (28 lbs), the Cub Scout 26 Race (Box) model is considerably heavier than average. In conclusion, the average Mountain bike weighs 13.8% less than Cub Scout 26 Race (Box).

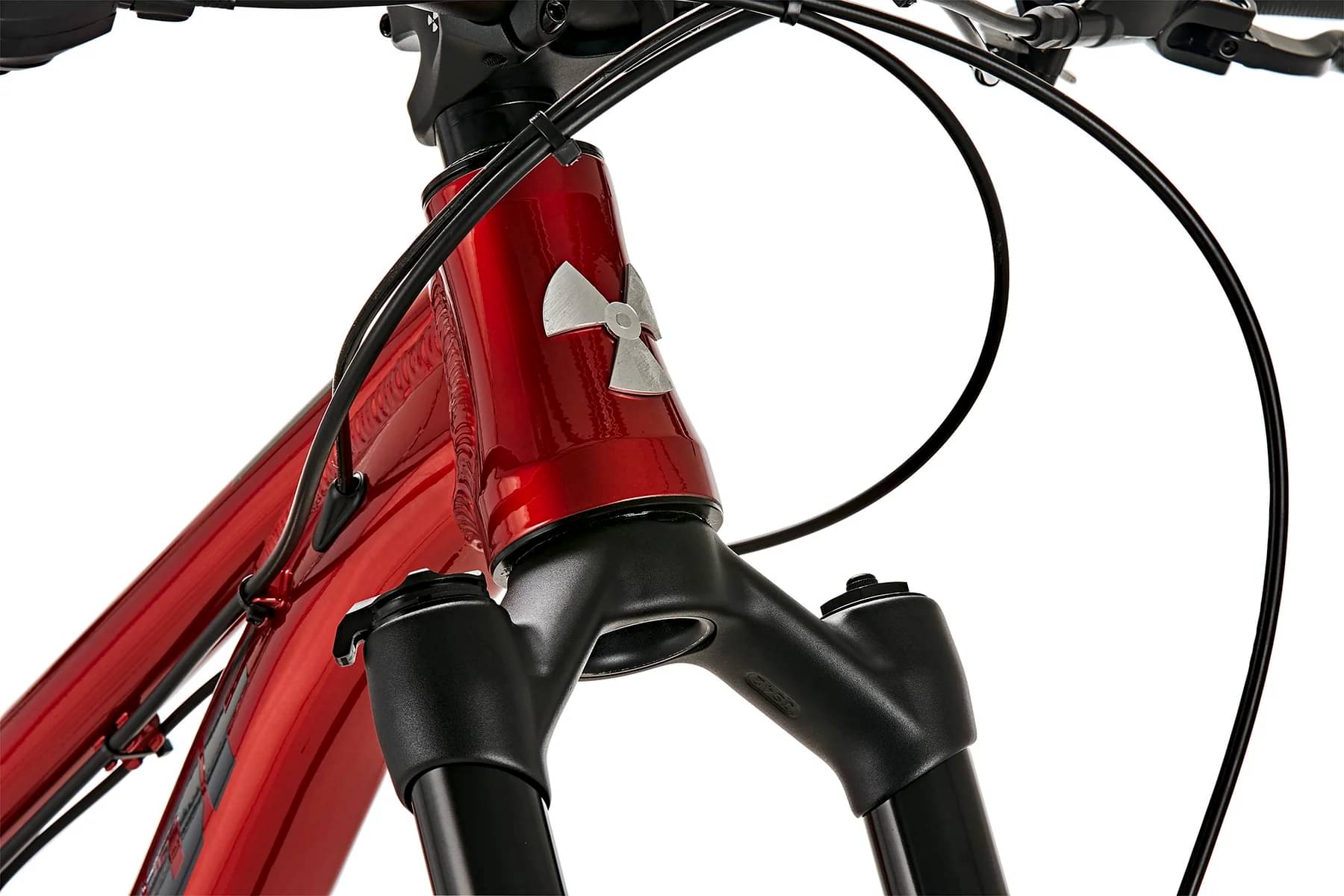

Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Cub Scout 26 Race (Box) components

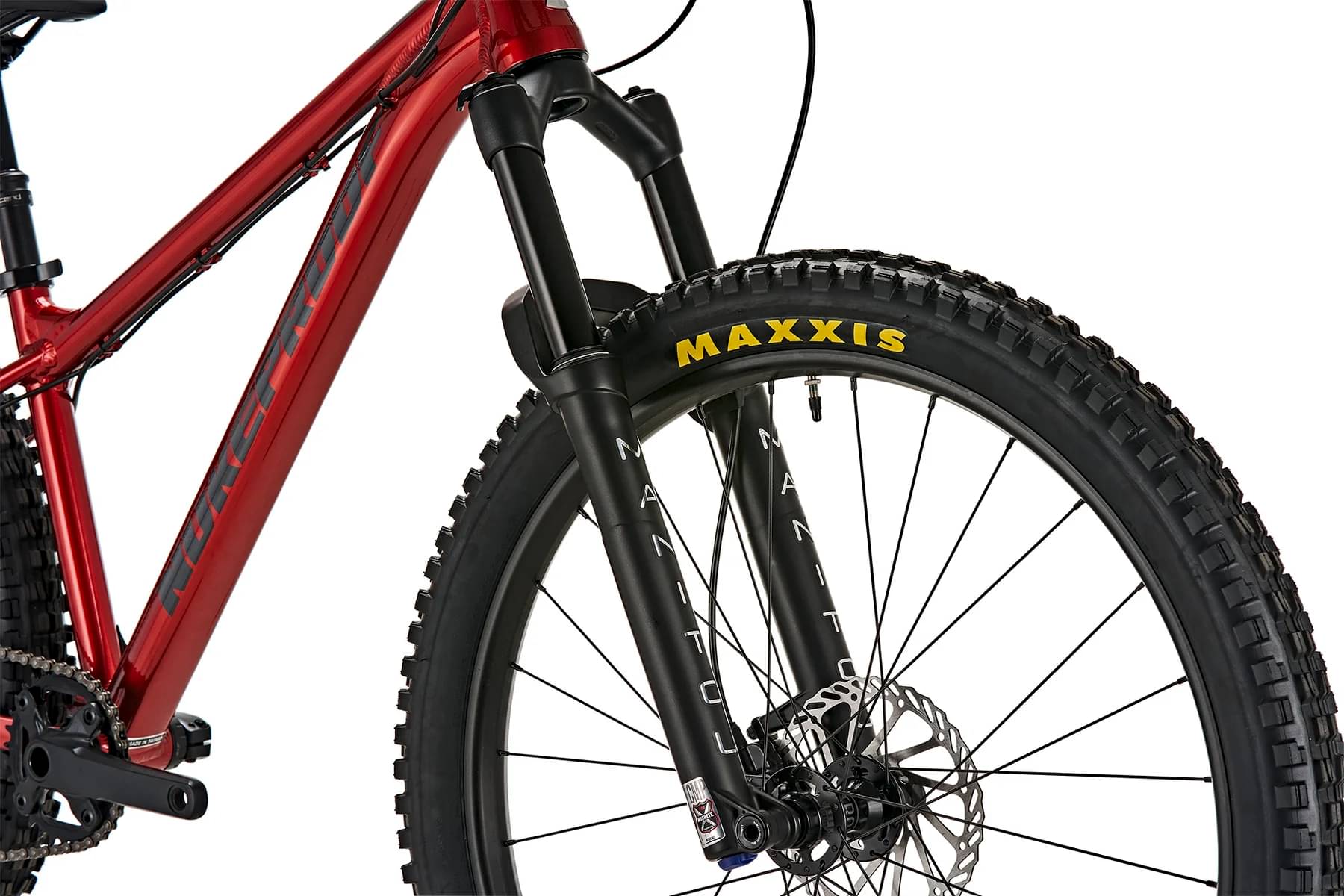

Fork
The fork installed on this bike is the Manitou Machete Comp model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Cub Scout 26 Race (Box) bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Nukeproof Cub Scout 26 Race (Box) is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.

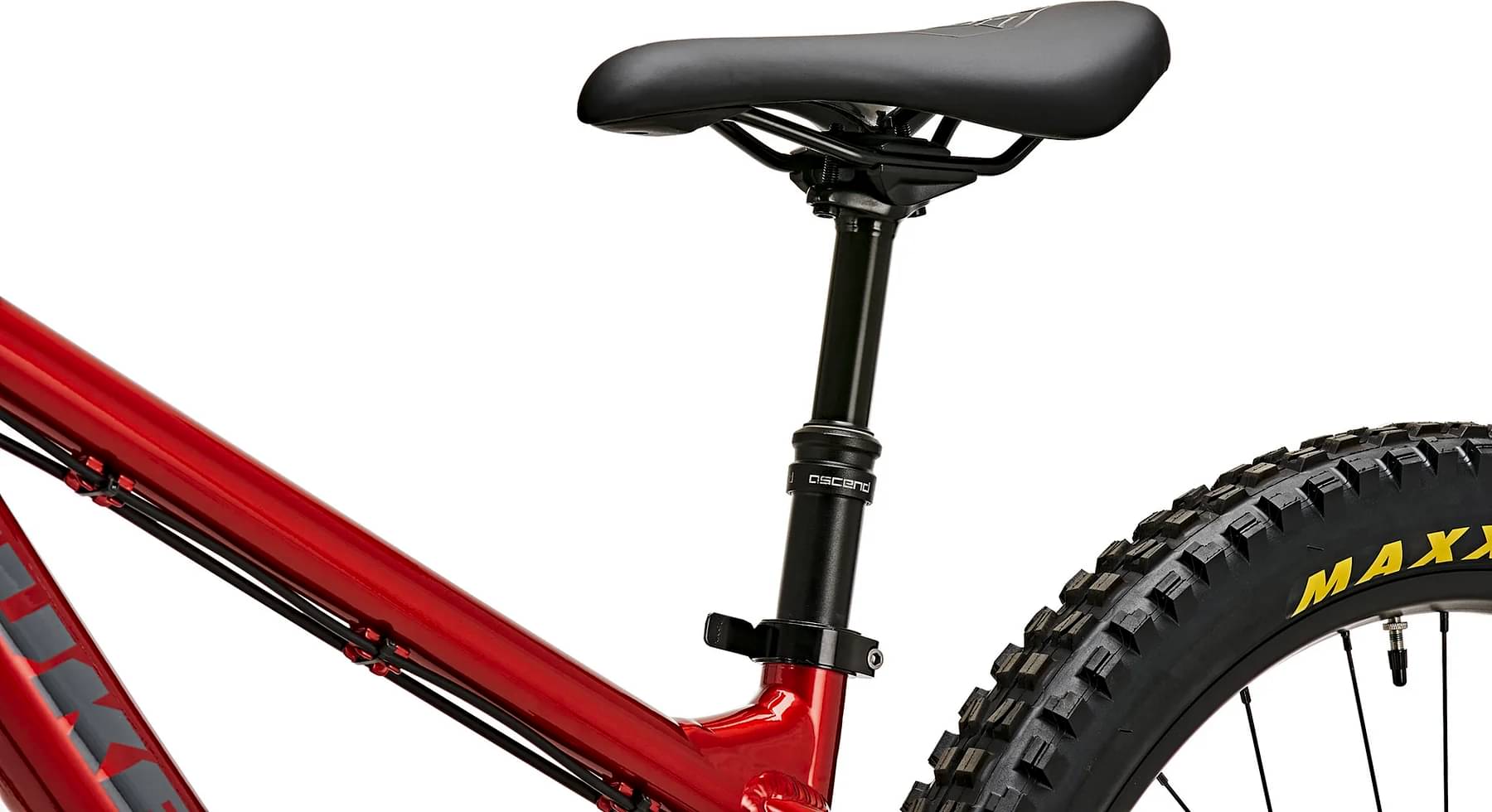

Dropper post
The Nukeproof model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
