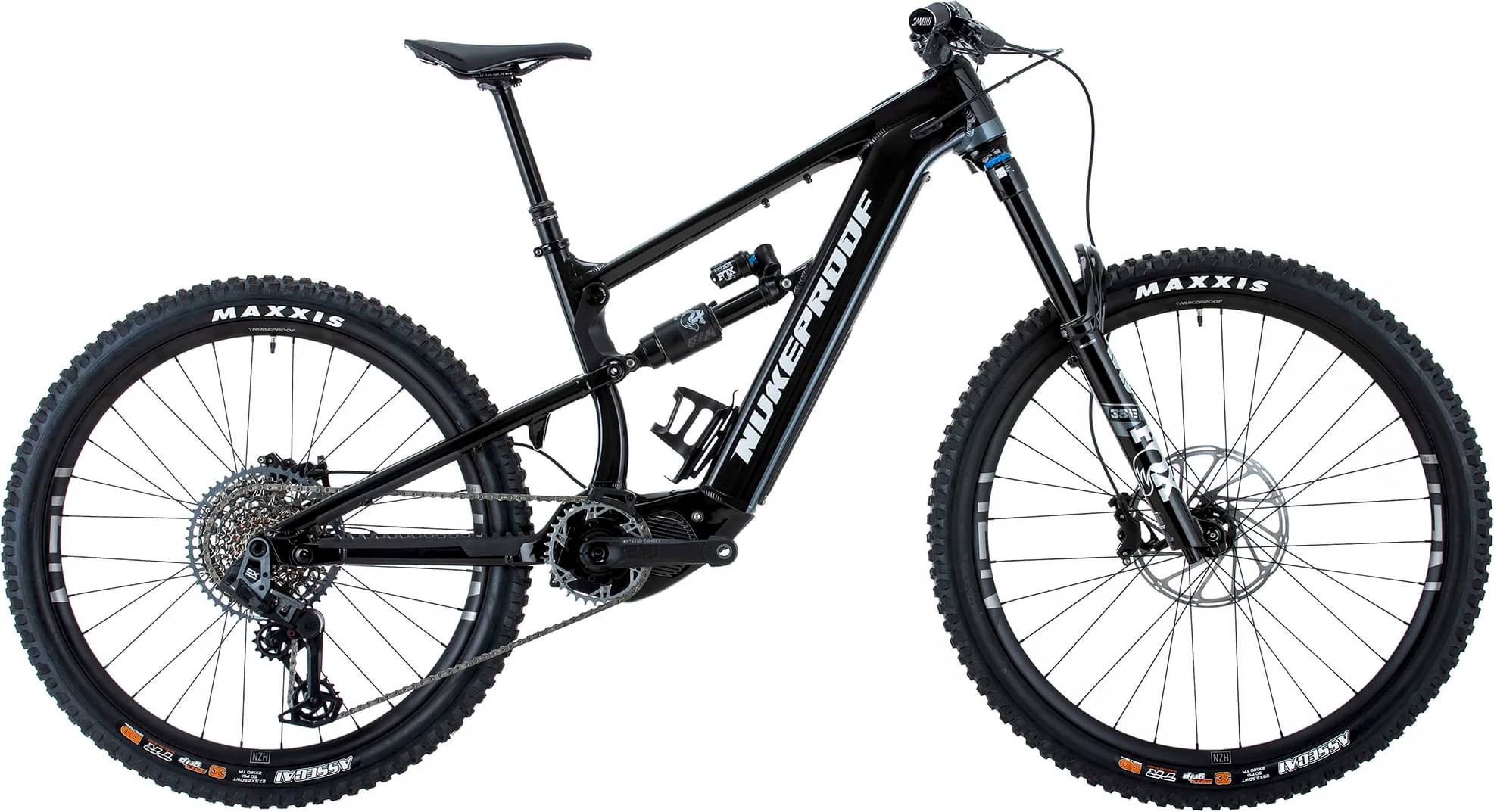

Nukeproof Megawatt 297 Elite 2023
2023 E-bike
Estimate price |
7,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EN806A, 630Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Megawatt 297 Alloy, 170mm Travel, custom triple butted hydro-formed tube set, internal Battery, Internal cable routing through downtube, Enduro Bearings, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection, Shimano STEPS compatible.
Suspension Fork
Fox 38 Float, 29”, Performance Elite Series, Grip 2 Damper, 170mm, 44mm Offset, BOOST, 1.5T Steerer, Black
Rear Shock
Fox Float X2, Performance Series, EVOL, 2 Position lever, Custom 0.3 Spacer x2, CL, RM, Rezi CM tune, 230x62.5mm, Bearing End
Drivetrain
Rear Derailleur
SRAM GX AXS T-Type, 12-Speed Eagle
Shift Levers
SRAM AXS POD Ultimate, 12-Speed Eagle, T-Type
Cassette
SRAM GX CS1275 T-Type, 12-Speed, 10-52T
Crank
e*thirteen EP8, 165mm, 34T SRAM XX T-Type Chainring, Boost
Bottom Bracket
STEPS, press-fit
Chain
SRAM GX T-Type, 12-Speed Eagle, Flattop, PowerLock
Chain Guide
Shimano EM800 drive unit mount
Wheels
Rims
Front Wheel: Nukeproof Horizon V2, 29"", 6 Bolt, 110x15mm // Rear Wheel: Nukeproof Horizon V2, 27.5"", 6 Bolt, XD Driver, 148x12mm
Tires
Front: Maxxis Assegai 29”x2.5 WT 3C MaxxGrip/DD/TR, Rear: Maxxis Assegai 27.5”x2.5 WT 3C MaxxGrip/DD/TR
Brakes
Brakes
SRAM DB8 4-POT
Cockpit
Stem
Nukeproof Horizon, 45mm, Black
Handlebar
Nukeproof Horizon V2, Width - S/M: 12mm Rise Width - 780mm, L/XL/XXL: 25mm Rise Width - 800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof Neutron E-Bike Block Set, sealed bearings, ZS56/28.6 – ZS66/40
Seat
Saddle
Nukeproof, Black
Seatpost
Brand X Ascend internal with Brand-X Remote lever, S:125mm drop; M:150mm drop; L:170mm drop; XL/XXL:200mm drop
Motor & Battery
Motor
Shimano STEPS EP801, 250W, 85Nm
Battery
Shimano EN806A, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 779.61 mm | 799.61 mm | 821.8 mm | 846.18 mm | 870.57 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm |
| Stack | 637.74 mm | 637.74 mm | 642.24 mm | 651.23 mm | 660.21 mm |
| Reach | 432 mm | 452 mm | 472 mm | 492 mm | 512 mm |
| Top Tube Length | 574.05 mm | 594.05 mm | 609.15 mm | 631.06 mm | 660.21 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1218 mm | 1238 mm | 1260 mm | 1285 mm | 1309 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 731 mm | 728 mm | 727 mm | 729 mm | 729 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Megawatt 297 Elite belongs to the Nukeproof E Megawatt model. There are 8 e-bikes that carry this model name. You can easily view all of the Nukeproof E Megawatt e-bikes models from 2023, here.
Model range prices
Nukeproof Megawatt 297 Comp 2023 is the most economical model, with a starting price of 6099$. Nukeproof Megawatt 297 RS 2023 on the other hand costs 9299$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 7899$. If we compare this with the average Enduro e-bike cost we notice that the price is 65.08% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Megawatt 297 Elite components
Fork
This e-bike has the Fox Performance Elite Float 38 fork installed. The fork’s travel is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is Fox Float X2, with a travel distance of 170mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Megawatt 297 Elite are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Megawatt 297 Elite has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Dropper post
Nukeproof Megawatt 297 Elite comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
