Bike details
Overview
Key information split into simple groups.

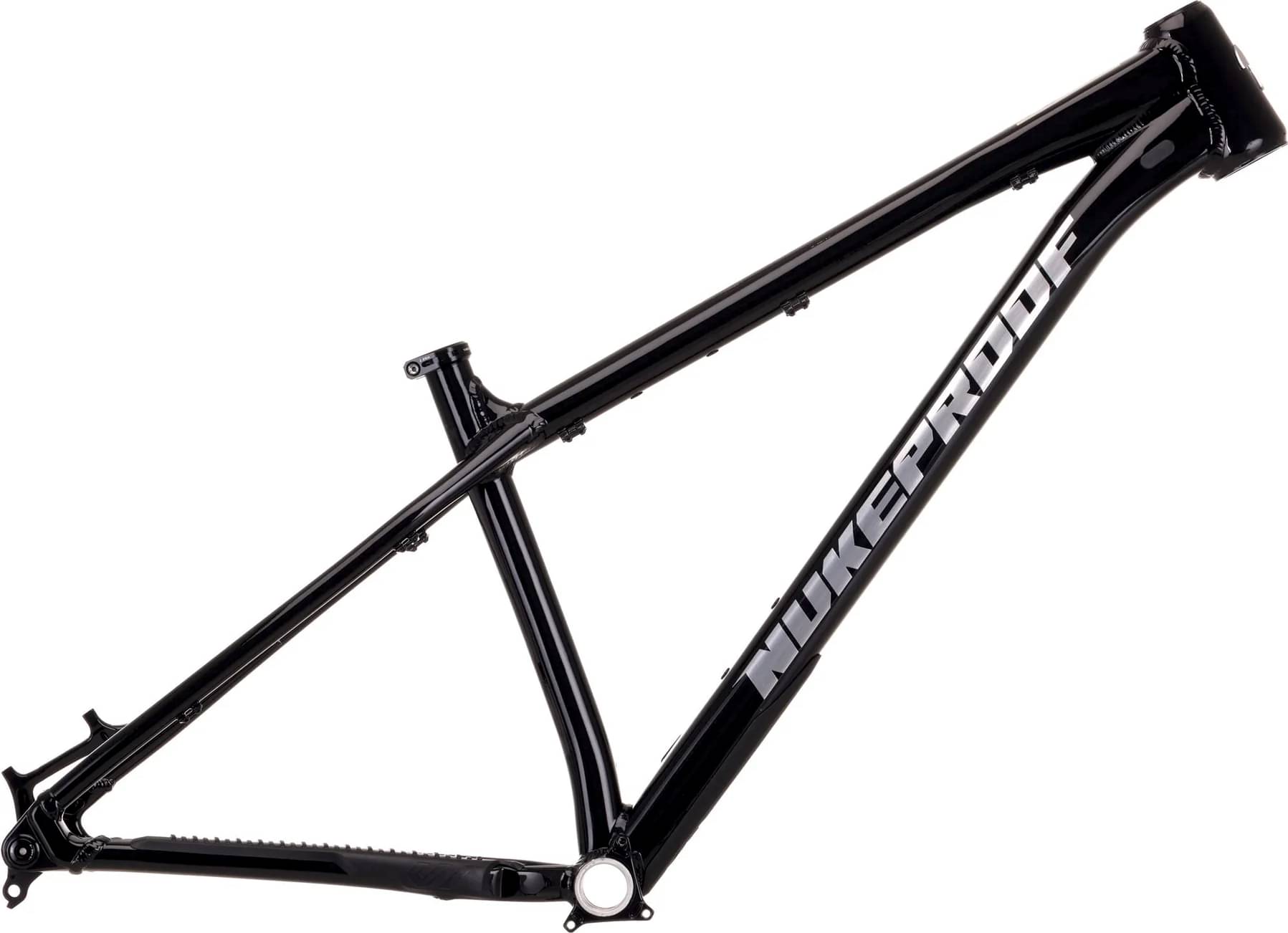

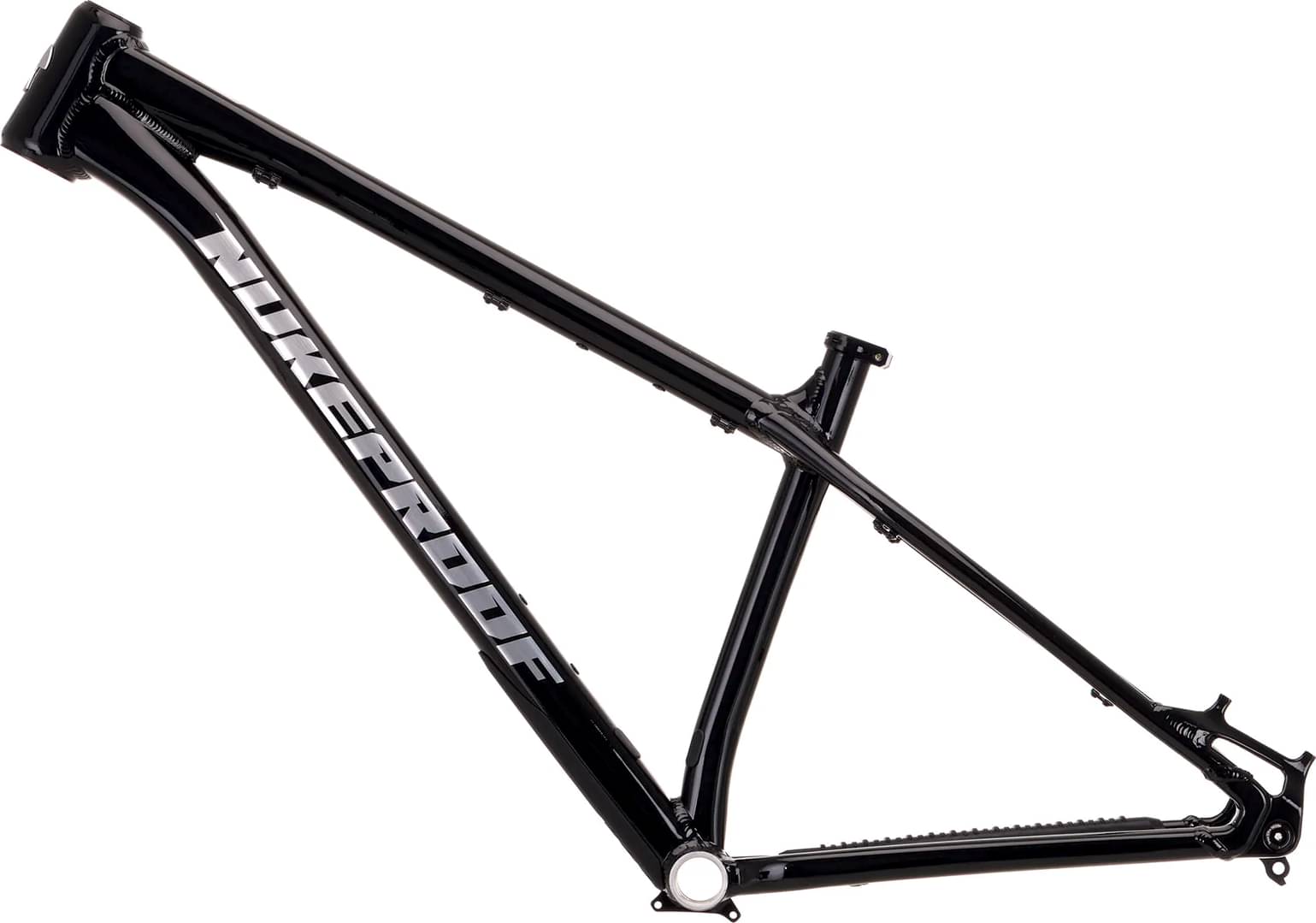

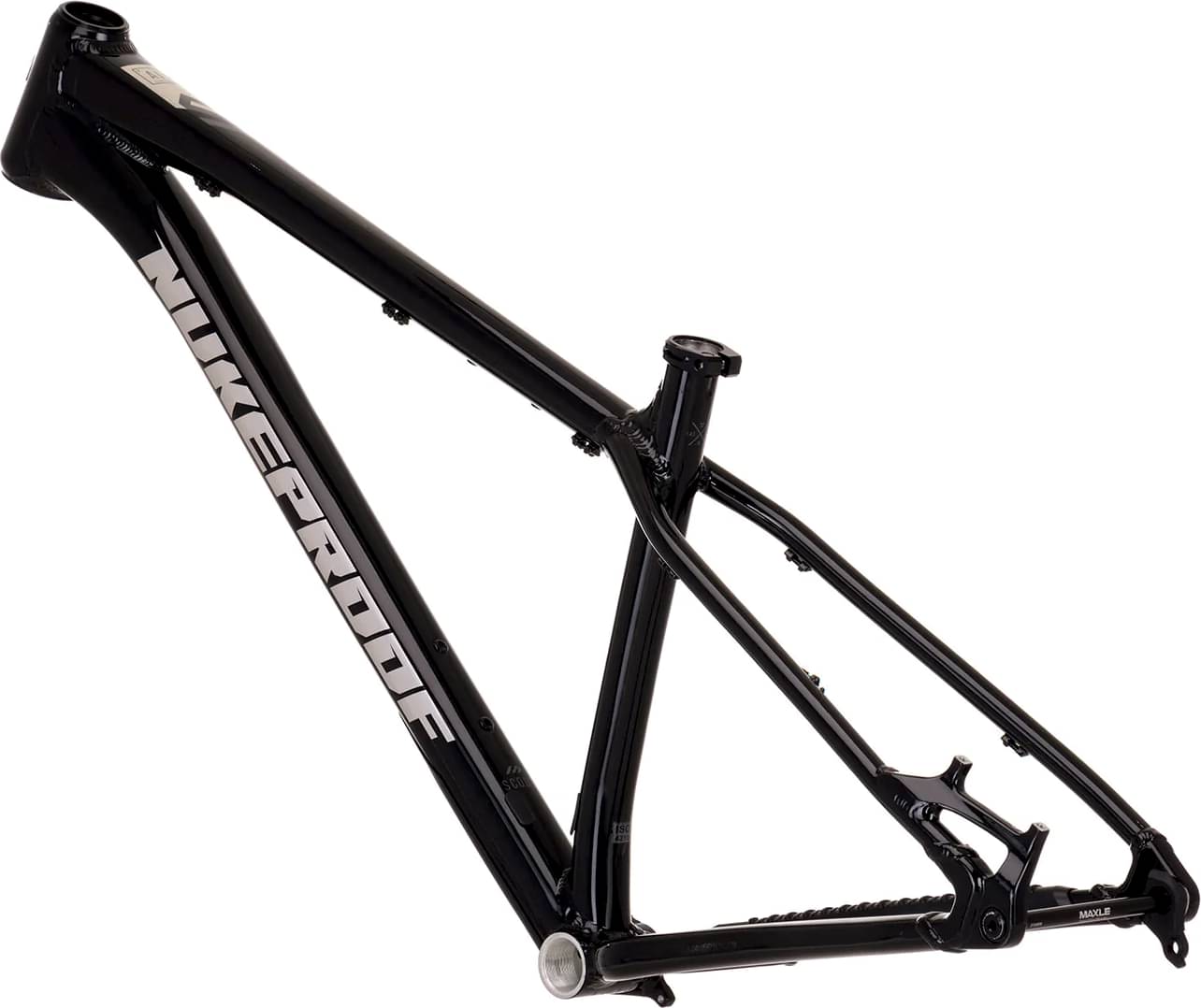

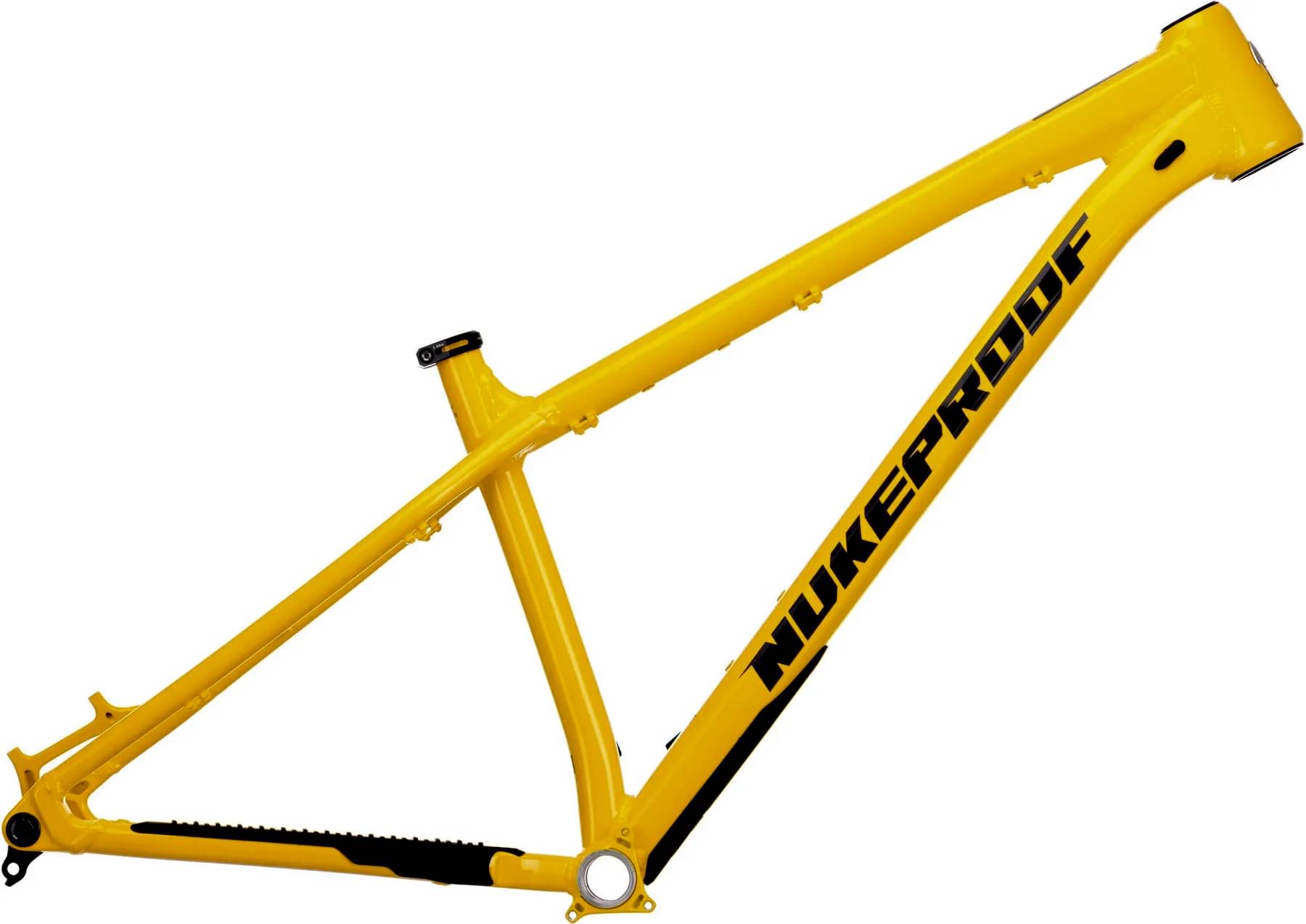

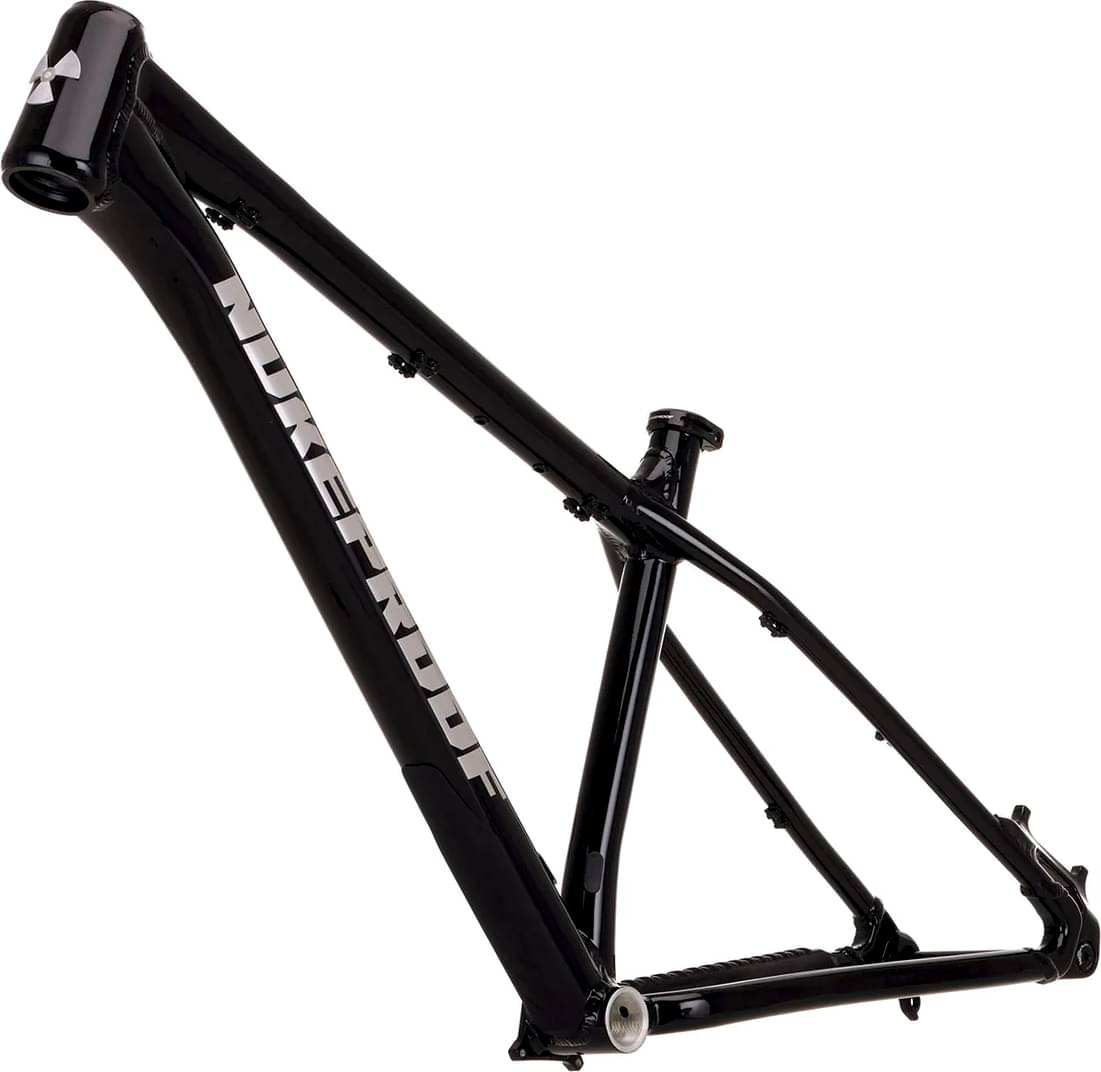

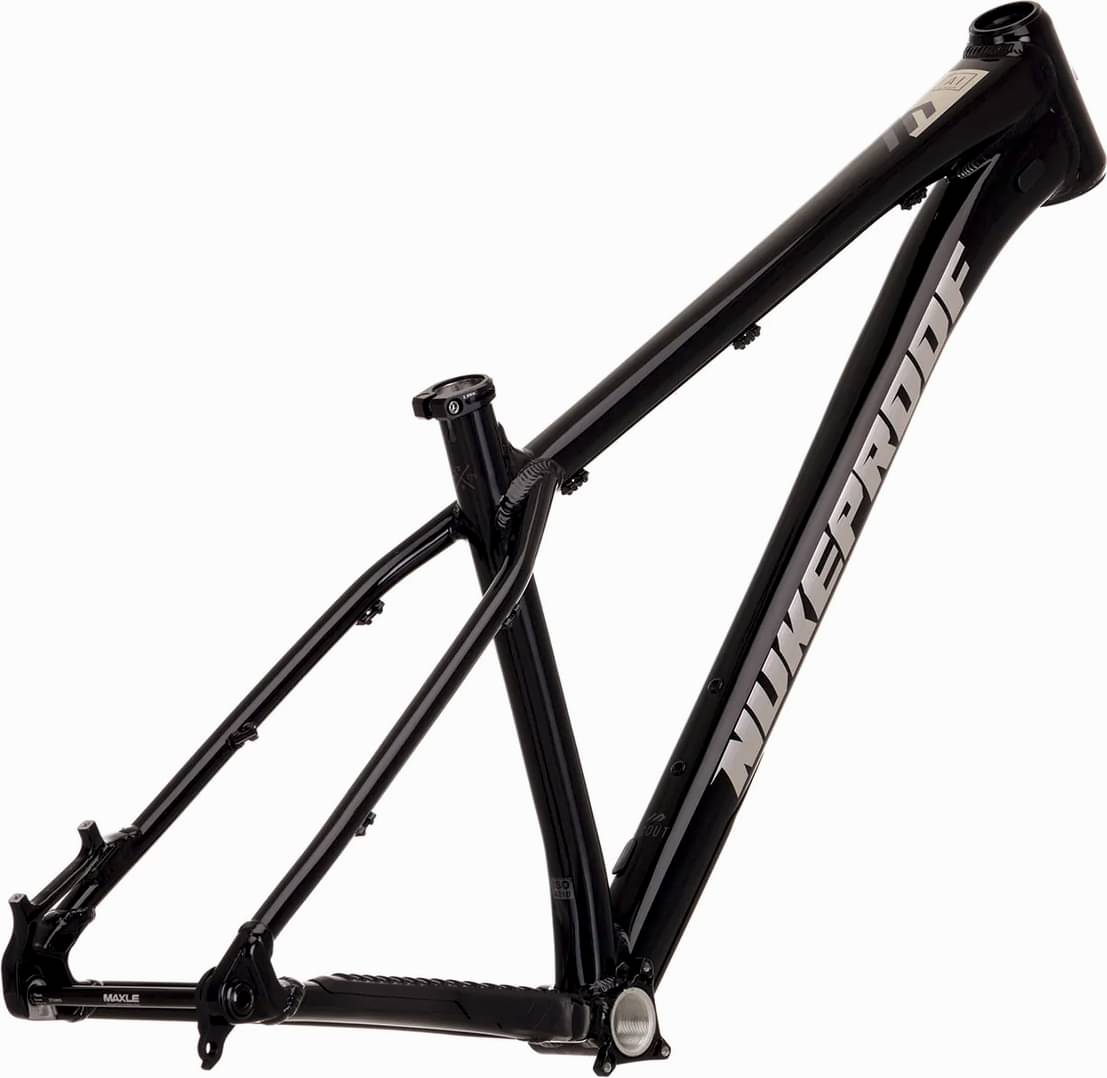

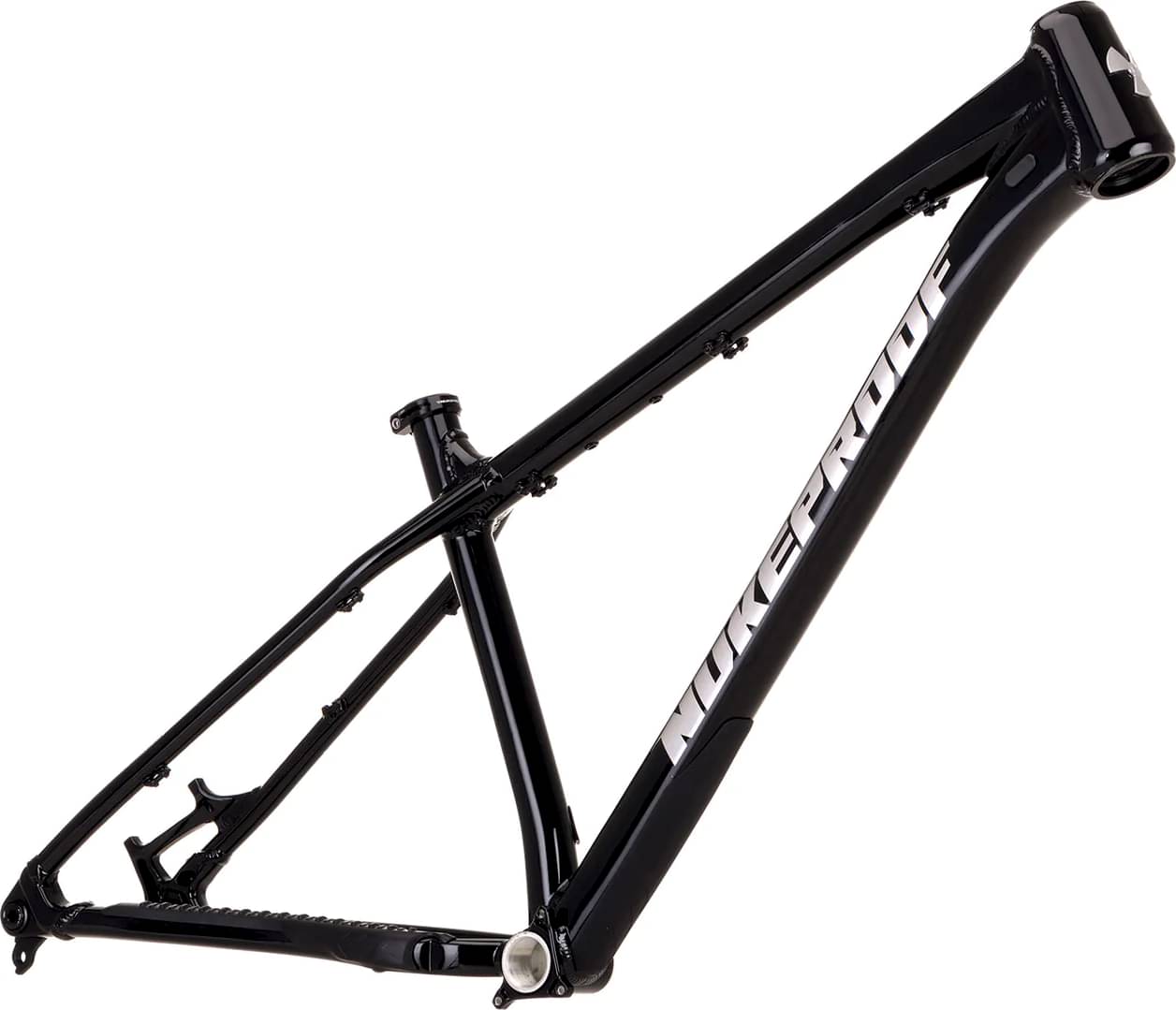

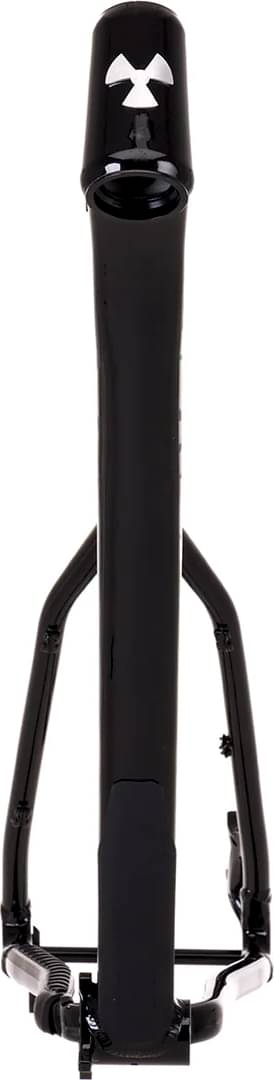

Frame summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Suspension Hardtail
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom triple butted hydro-formed Alloy
Cockpit
Headset
Nukeproof, 44-56 IITS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 741.1 mm | 762.7 mm | 784.6 mm | 806 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 130.72 mm | 130.72 mm | 130.72 mm | 130.72 mm |
| Stack | 613.2 mm | 622.4 mm | 631.4 mm | 640.3 mm |
| Reach | 425.3 mm | 443 mm | 460.3 mm | 477.5 mm |
| Top Tube Length | 602 mm | 622 mm | 642.2 mm | 661 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 460 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 419 mm | 422 mm | 424 mm | 427 mm |
| Wheelbase | 1155 mm | 1180 mm | 1204 mm | 1228 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 677 mm | 683 mm | 687 mm | 701 mm |
| Front Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Scout 275 Frame completes the Nukeproof Scout model. 35 frames variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Nukeproof Scout 290 Frame 2022 is the most affordable frame of this model and has a price of 499$. On the other hand, Nukeproof Scout 290 Frame Only 2022, is the most expensive and costs 607$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail frames average price
If you want to purchase a solid Trail frame, it is important to know that the average cost is 1736$. However, even though the average price of a Trail frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
When Nukeproof released this model in 2022, its price was 499$. In conclusion, this frame price is 247.9% lower than the price of the average Trail frame.
Scout 275 Frame components
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
