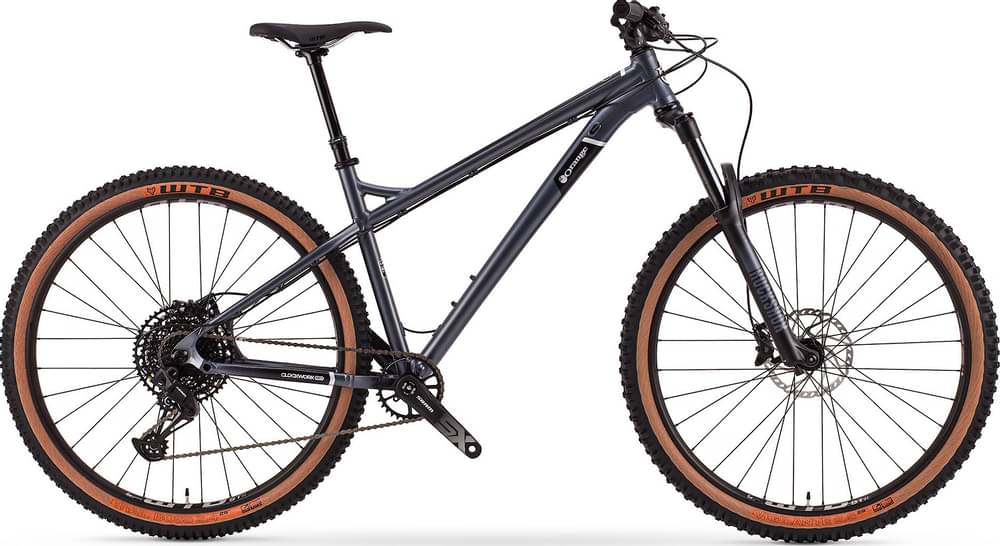

Orange Clockwork EVO 29 S 2021
2021 Mountain
Estimate price |
2,200$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox 35 Silver TK, 46mm offset
Rear Shock
None
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
SRAM SX Eagle DUB
Bottom Bracket
SRAM DUB, 73mm
Chain
SRAM SX Eagle, 12-speed
Chain Guide
None
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
WTB ST Light i30, 30mm internal width
Tires
Front: WTB Vigilante, 29" x 2.5", Rear: WTB Trail Boss, 29" x 2.4"
Brakes
Brakes
Shimano Deore 6100, 2-piston, 180mm rotors
Brake Levers
Shimano Deore 6100
Cockpit
Stem
Race Face Chester, 40mm length, 35mm bar clamp
Handlebar
Race Face Chester, 780mm width, 35mm clamp diameter
Grips
Strange Grappler, lock-on
Headset
FPD, ZS44/28.6 upper, EC44/40 lower
Seat
Saddle
WTB Silverado Sport
Seatpost
KS Rage-i dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.36 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm |
| Stack | 644 mm | 644 mm | 653 mm |
| Reach | 443 mm | 463 mm | 481 mm |
| Top Tube Length | 628 mm | 648 mm | 668 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1196 mm | 1215 mm | 1237 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm |
| Standover Height | 685 mm | 704 mm | 743 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Clockwork EVO 29 S belongs to the Orange Clockwork model. Orange released 14 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Orange Clockwork EVO 29 Comp 2021 is the most economical model, with a starting price of 1850$. Orange Clockwork EVO R 2021 on the other hand costs 3300$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 2200$. Comparing this to the average Trail bike price, we see that the price is 25.55% smaller.
Overview of components
Fork
Orange Clockwork EVO 29 S 2021 bike is equipped with the RockShox 35 Silver fork, and has 130mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Orange Clockwork EVO 29 S 2021, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Orange Clockwork EVO 29 S comes with a dropper post. Therefore, climbing or descending will be a breeze.
