Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike Ultimate, 37mm offset, Option: FOX FLOAT 36 Factory
Rear Shock
RockShox Super Deluxe Ultimate, 190mm x 45mm, Options: FOX FLOAT DPX2 Factory
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Crank
SRAM GX Eagle DUB
Bottom Bracket
SRAM DUB, 73mm
Chain
SRAM GX Eagle, 12-speed
Chain Guide
None, Option: OneUp upper slider
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
e*thirteen TRS, 30mm width, Option: Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO, 27.5" x 2.5", Rear: Maxxis Minion DHR II, EXO, 27.5" x 2.4"
Brakes
Brakes
Shimano SLX Trail, 4-piston, 203mm front rotor, 180mm rear rotor, Option: Shimano Deore XT Trail, 4-piston, 203mm front rotor, 180mm rear rotor
Brake Levers
Shimano SLX Trail, Option: Shimano Deore XT Trail
Cockpit
Stem
Burgtec Enduro MK3, CNC, 35mm
Handlebar
Burgtec RideWide Enduro, 800mm width
Grips
Strange Grappler, lock-on
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower
Seat
Saddle
SDG Radar, steel rails
Seatpost
FOX Transfer Performance Elite dropper, 175mm drop, Option: FOX Transfer Factory dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.3 mm | 1.24 mm | 1.24 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Stack | 592 mm | 601 mm | 601 mm | 619 mm |
| Reach | 445 mm | 462 mm | 483 mm | 498 mm |
| Top Tube Length | 586 mm | 605 mm | 620 mm | 636 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 381 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1194 mm | 1216 mm | 1236 mm | 1260 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 690 mm | 710 mm | 728 mm | 755 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

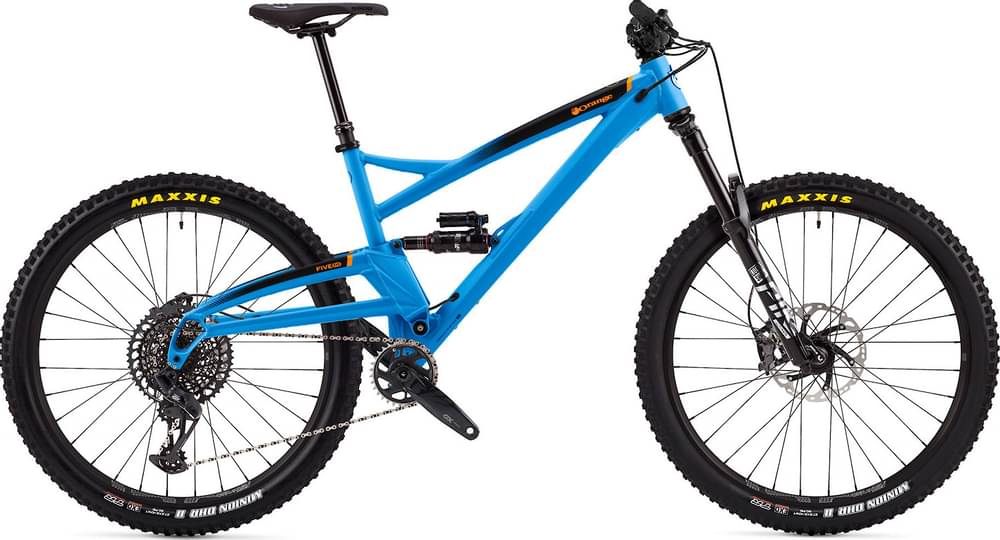

Five EVO RS is part of the Orange Five model. Orange launched 23 bikes of this model so far. Take a sneak peek at all Orange Five bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Orange Five EVO S 2021 has a starting price of 3600$. Orange Five EVO XTR 2021 on the other hand is the most expensive at 6800$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Orange Five EVO RS price was 5300$. In conclusion, this bike price is 91.89% more expensive than the price of the average Trail bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Pike Ultimate model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Five EVO RS has a rear shock with a travel of 130mm. The model RockShox Super Deluxe Ultimate is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Orange Five EVO RS 2021, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Five EVO RS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Orange Five EVO RS comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
