Bike details
Overview
Key information split into simple groups.

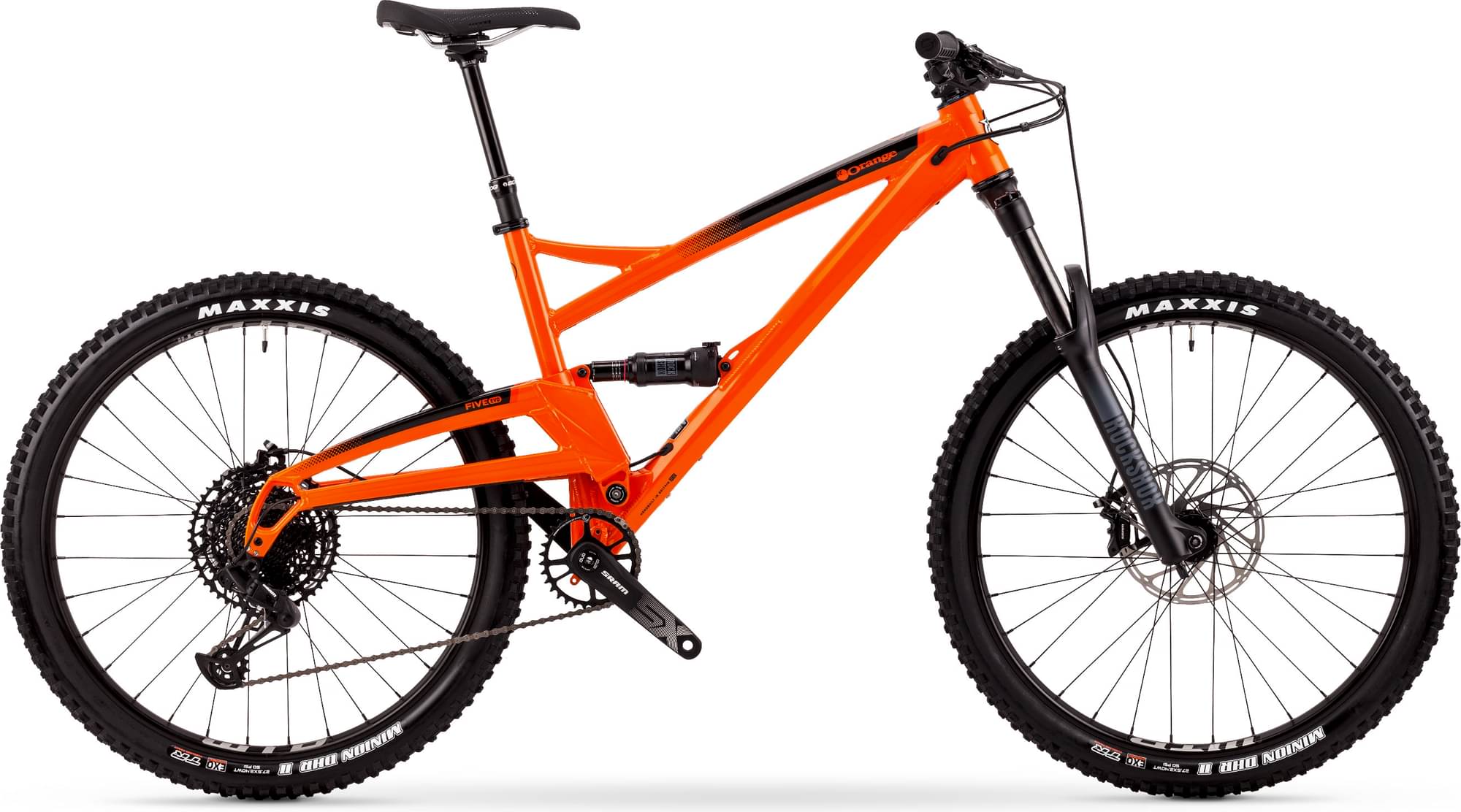

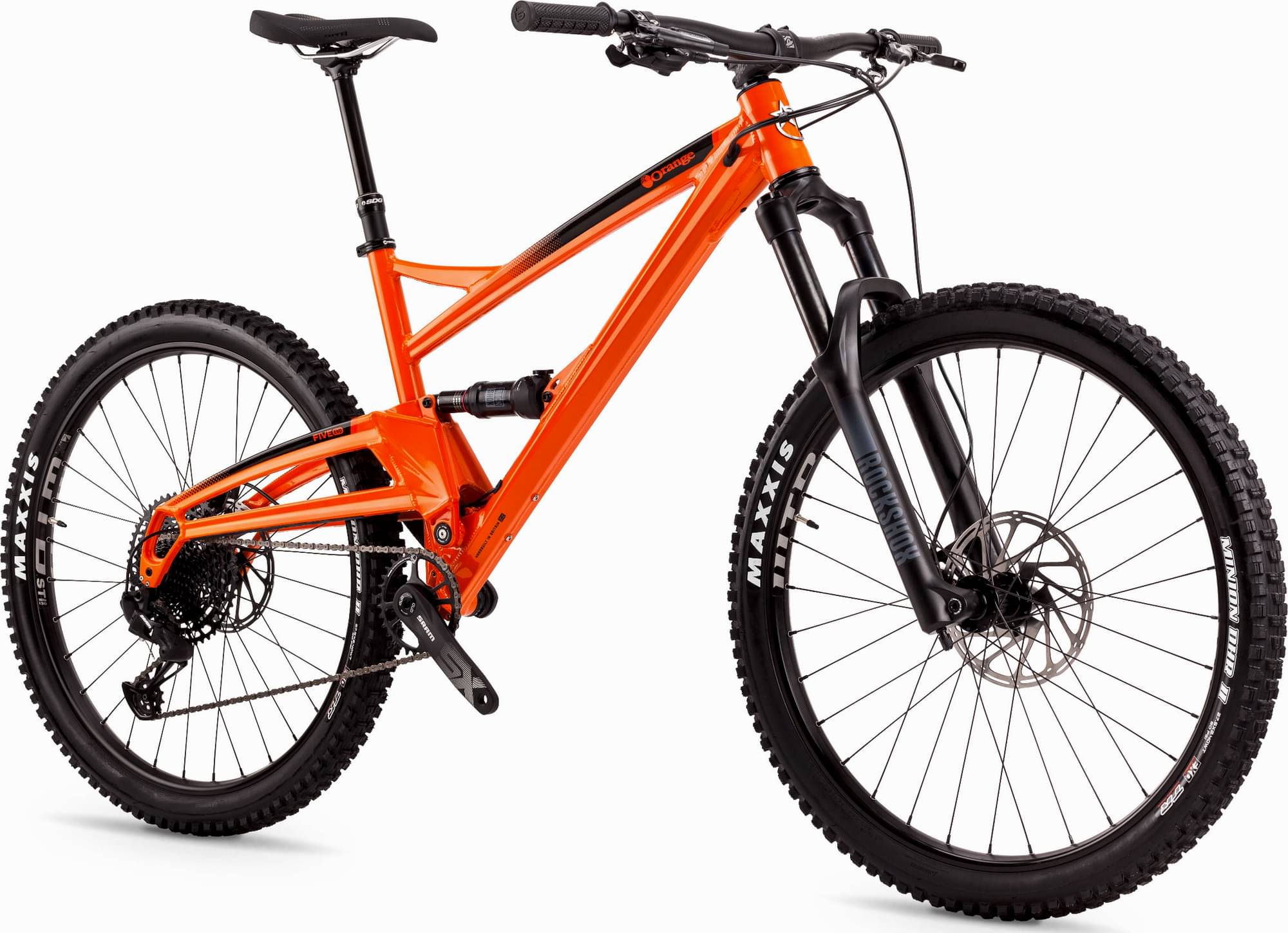

Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 130.
Suspension Fork
RockShox 35 Silver TK 140mm 27.5
Rear Shock
RockShox Deluxe Select R 190x45
Drivetrain
Rear Derailleur
SRAM SX Eagle 12spd
Shift Levers
SRAM SX Eagle
Cassette
SRAM SX 1210 11-50T Eagle
Crank
SRAM SX Eagle 32t
Bottom Bracket
SRAM DUB
Chain
SRAM SX Eagle
Wheels
Rims
WTB ST i30 on Strange Pro 27
Tires
Maxxis Minion DHR II 2.4 EXO TR 27.5
Brakes
Brakes
SRAM Guide RE 200/180
Cockpit
Stem
Race Face Chester M35 x 40mm
Handlebar
RaceFace Chester 780mm M35
Grips
Strange Grappler Lock-On
Headset
Cane Creek 49mm for Tapered Steerer
Seat
Saddle
WTB Volt Steel
Seatpost
KS Ragei 150/170mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.3 mm | 1.24 mm | 1.24 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 763 mm | 785 mm | 805 mm | 829 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 131 mm | 130 mm | 131 mm | 131 mm |
| Stack | 600 mm | 609 mm | 609 mm | 627 mm |
| Reach | 453 mm | 470 mm | 491 mm | 506 mm |
| Top Tube Length | 601 mm | 621 mm | 641 mm | 661 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1202 mm | 1224 mm | 1244 mm | 1268 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 698 mm | 718 mm | 736 mm | 763 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Five Evo S completes the Orange Five model. There are 27 bikes that carry this model name. Take a sneak peek at all Orange Five bikes models from 2022, by clicking here.
Model range prices
Orange Five Evo S 2022 is the most economical model, with a starting price of 4447$. Orange Five EVO SE 2022 on the other hand costs 7400$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Orange Five Evo S price was 4447$. Doing a quick comparison, we notice that Five Evo S price is 61.01% higher than the average cost of a Trail bike.
Five Evo S components
Fork
The RockShox 35 Silver is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Five Evo S has a rear shock with a travel of 130mm. The model RockShox Deluxe Select R 190×45 is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Five Evo S 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Five Evo S has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Orange Five Evo S bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Orange Five Evo S comes with a dropper post. Therefore, climbing or descending will be a breeze.
