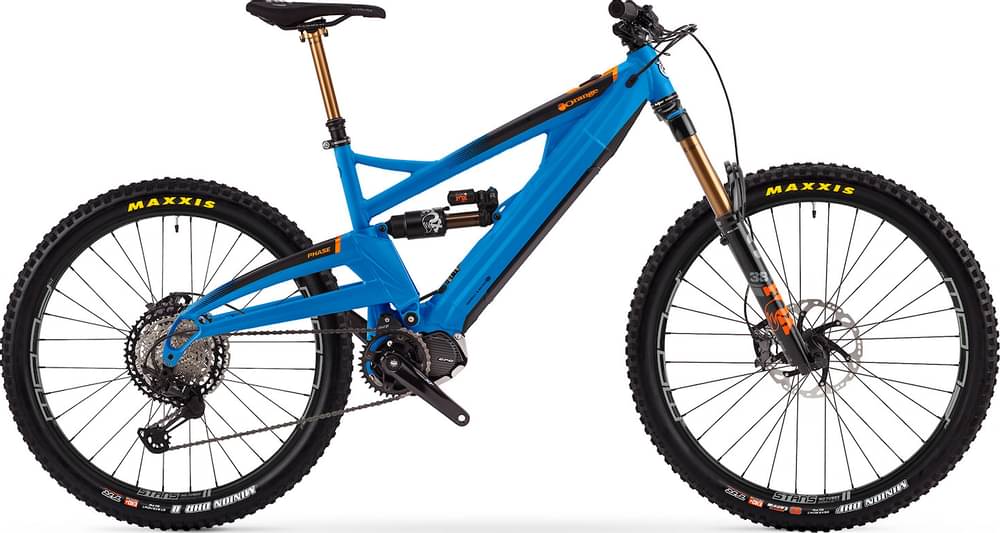

Orange Phase Factory 2021
2021 E-bike
Estimate price |
8,400$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" / 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS E8035, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38 Factory, 42mm offset
Rear Shock
FOX FLOAT X2 Factory, 230mm x 65mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT, 165mm length
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC, 12-speed
Chain Guide
MRP E-bike upper slider
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO+, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 27.5" x 2.4"
Brakes
Brakes
Shimano Deore XT Trail, 4-piston, 203mm rotors, Option: Shimano Saint, 4-piston, 203mm rotors
Brake Levers
Shimano Deore XT Trail, Option: Shimano Saint
Cockpit
Stem
Hope Tech, 35mm length, 35mm bar clamp
Handlebar
Renthal Fatbar, 800mm width, 35mm clamp diameter
Grips
Strange Grappler, lock-on
Headset
Hope Tech, ZS49/28.6 upper, EC49/40 lower
Seat
Saddle
SDG BelAir III
Seatpost
FOX Transfer Factory dropper, 175mm drop
Motor & Battery
Motor
Shimano STEPS EP8, 85Nm max torque, 250W
Battery
Shimano STEPS E8035, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Stack | 620 mm | 627 mm | 636 mm |
| Reach | 465 mm | 486 mm | 503 mm |
| Top Tube Length | 623 mm | 643 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1246 mm | 1266 mm | 1288 mm |
| Standover Height | 722 mm | 750 mm | 773 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
Phase Factory completes the Orange E Phase model. 8 e-bikes variations carry this model name so far. You can easily view all of the Orange E Phase e-bikes models from 2021, here.
Model range prices
Orange Phase Pro 2021 is the most affordable e-bike of this model and has a price of 7000$. On the other hand, Orange Phase XTR 2021, is the most expensive and costs 8800$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8400$. Comparing the average cost of an Enduro e-bike to this one, you will see that Phase Factory price is 75.55% higher.
Phase Factory components
Fork
Orange Phase Factory 2021 e-bike is equipped with the Fox Factory Float 38 fork, and has 170mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT X2 Factory, with a travel distance of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Phase Factory are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Phase Factory has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Orange Phase Factory e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Orange Phase Factory comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
