Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 700c.
Suspension Fork
Strange Full Carbon Flat Mount Disc
Drivetrain
Rear Derailleur
Shimano GRX RX812
Shift Levers
Shimano GRX RX600
Cassette
Shimano SLX 11-42T 11spd
Crank
Easton EA90 40t
Bottom Bracket
Easton
Chain
KMC 11spd
Wheels
Rims
DT Swiss G1800 700c
Tires
Michelin Power Gravel 700x40
Brakes
Brakes
Shimano GRX RX600 / RX400 Hydraulic Disc
Cockpit
Stem
Easton EA50
Handlebar
Easton EA50AX Alloy
Grips
Strange EAV Gel Bar Tape Black
Headset
FPD 44mm / 56mm zerostack
Seat
Saddle
WTB Volt SL
Seatpost
Easton EA50 350x30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.481 mm | 1.46 mm | 1.471 mm | 1.481 mm |
| Bottom Bracket Height | 419 mm | 419 mm | 419 mm | 419 mm |
| Front Center | 596 mm | 616 mm | 633 mm | 649 mm |
| Rake | -3 mm | -3 mm | -3 mm | -3 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 548 mm | 562 mm | 581 mm | 600 mm |
| Reach | 370 mm | 385 mm | 395 mm | 405 mm |
| Top Tube Length | 527 mm | 546 mm | 562 mm | 577 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1021 mm | 1041 mm | 1058 mm | 1075 mm |
| Bottom Bracket Drop | -70 mm | -70 mm | -70 mm | -70 mm |
| Standover Height | 762 mm | 776 mm | 796 mm | 812 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

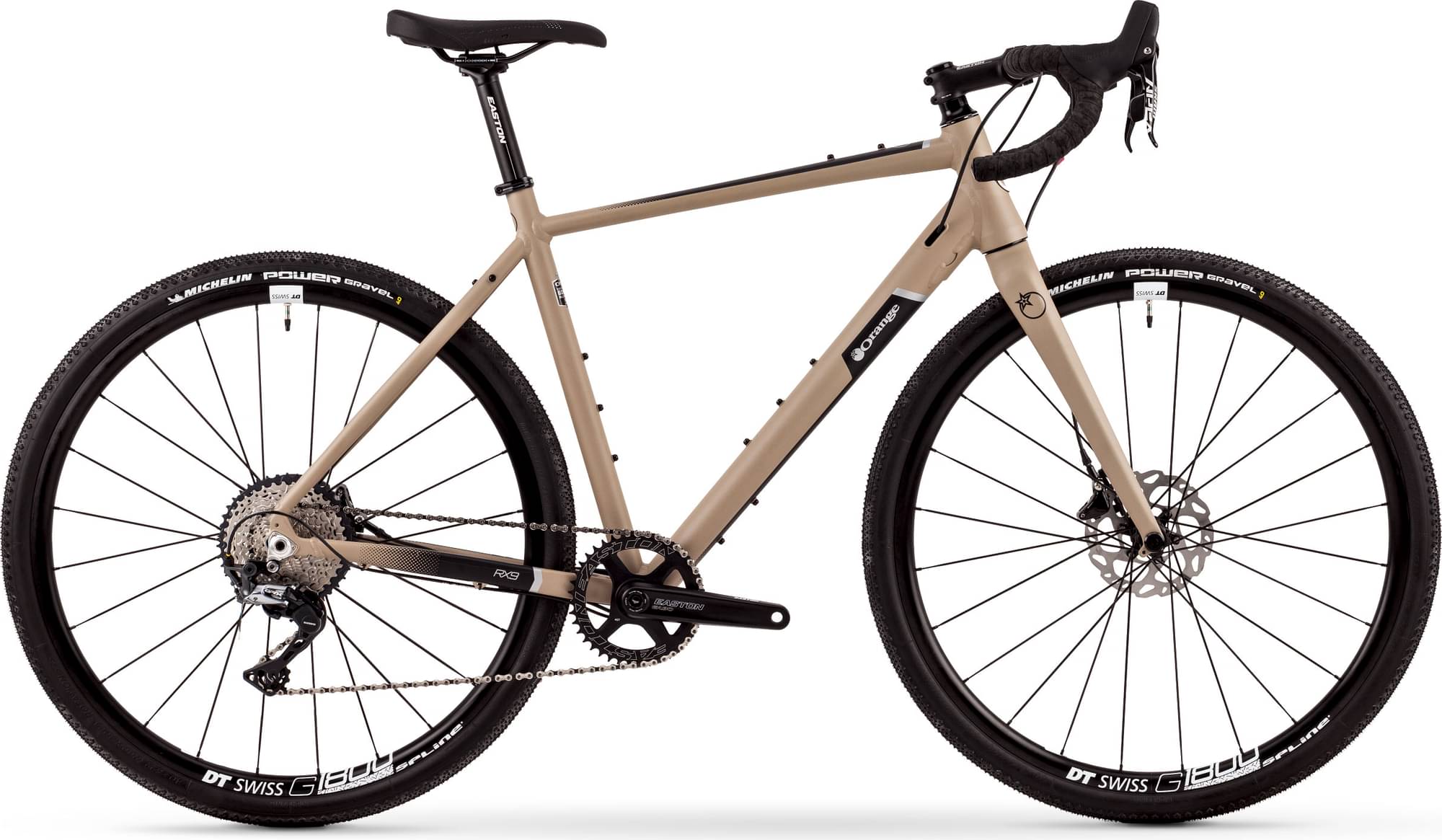

RX9 RS is an Orange Rx9 model. 5 bikes variations carry this model name so far. You can easily view all of the Orange Rx9 bikes models from 2023, here.
Model range prices
Orange RX9 S 2023 is the cheapest bike model and costs 2679$. Orange RX9 RS 2023 is the most expensive one and costs 3812$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Orange RX9 RS price was 3812$. If we compare this with the average Gravel bike cost we notice that the price is 54.83% more expensive.
RX9 RS components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The RX9 RS 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The RX9 RS has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Orange RX9 RS bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
