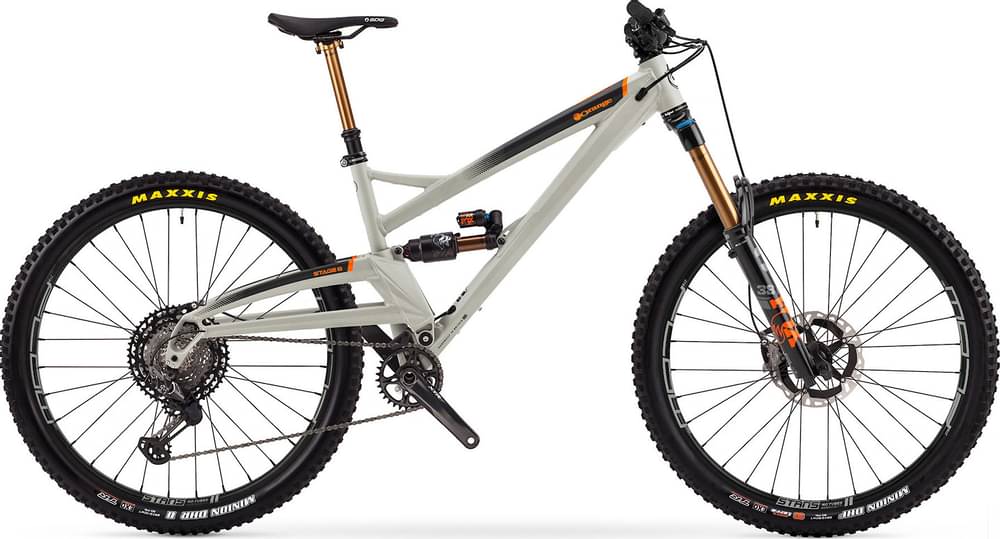

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset XTR -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38 Factory, 42mm offset
Rear Shock
FOX FLOAT X2 Factory, 210mm x 55mm
Drivetrain
Rear Derailleur
Shimano XTR M9100, 12-speed
Front Derailleur
None
Shift Levers
Shimano XTR M9100, 12-speed
Cassette
Shimano XTR M9100, 12-speed, 10-51 tooth
Crank
Shimano XTR
Bottom Bracket
Shimano, 73mm
Chain
KMC, 12-speed
Chain Guide
OneUp upper slider
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
Stan's NoTubes Flow MK3
Tires
Front: Maxxis Minion DHF, 3C, EXO+, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C, EXO+, 29" x 2.4"
Brakes
Brakes
Shimano XTR, 4-piston, 203mm front rotor, 180mm rear rotor
Brake Levers
Shimano XTR
Cockpit
Stem
Burgtec Enduro MK3, CNC, 35mm
Handlebar
Burgtec RideWide Carbon, 800mm width
Grips
Strange Grappler, lock-on
Headset
Hope Tech, ZS49/28.6 upper, EC49/40 lower
Seat
Saddle
SDG BelAir III
Seatpost
FOX Transfer Factory dropper, 175mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Stack | 631 mm | 640 mm | 650 |
| Reach | 465 mm | 482 mm | 501 mm |
| Top Tube Length | 623 mm | 643 mm | 663 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1270 mm | 1292 mm | 1314 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 731 mm | 742 mm | 795 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Stage 6 XTR completes the Orange Stage model. 43 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Orange Stage EVO Pro 2021 has a starting price of 4300$. Orange Stage 6 XTR 2021 on the other hand is the most expensive at 7200$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Orange released this model in 2021, its price was 7200$. Comparing the average cost of an Enduro bike to this one, you will see that Stage 6 XTR price is 100.06% more expensive.
Overview of components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT X2 Factory, with a travel distance of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Orange Stage 6 XTR 2021, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Orange Stage 6 XTR bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Orange Stage 6 XTR comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
