Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike Ultimate
-
Groupset SLX, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 34 Performance, 42mm offset, Options: FOX FLOAT 36 Factory, RockShox Pike Ultimate
Rear Shock
FOX FLOAT DPS Performance, 190mm x 45mm, Options: FOX FLOAT DPX2 Factory, RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed
Front Derailleur
None
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Race Face Aeffect
Bottom Bracket
Race Face, 73mm
Chain
KMC, 12-speed
Chain Guide
None, Option: OneUp upper slider
Pedals
None, Option: Burgtec Penthouse Flat MK5
Wheels
Front Hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver, Option: Hope Tech Pro 4
Rear Hub
Strange, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver, Option: Hope Tech Pro 4
Rims
WTB ST Light i30, 30mm internal width, Options: e*thirteen TRS, 30mm width, Stan's NoTubes Flow MK3
Tires
Maxxis Minion DHR II, EXO, TR, 29" x 2.4"
Brakes
Brakes
SRAM Guide RE, 4-piston, 200mm front rotor, 180mm rear rotor, Option: Shimano Deore XT Trail, 4-piston, 203mm front rotor, 180mm rear rotor, Option: Shimano SLX Trail, 4-piston, 203mm front rotor, 180mm rear rotor
Brake Levers
SRAM Guide RE, Option: Shimano Deore XT Trail, Option: Shimano SLX Trail
Cockpit
Stem
Burgtec Enduro, 42.5mm length
Handlebar
Burgtec RideWide Enduro, 800mm width
Grips
Strange Grappler, lock-on
Headset
Cane Creek, ZS49/28.6 upper, EC49/40 lower
Seat
Saddle
WTB Silverado Comp
Seatpost
SDG Tellis dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Stack | 618 mm | 618 mm | 628 mm | 636 mm |
| Reach | 438 mm | 458 mm | 476 mm | 494 mm |
| Top Tube Length | 576 mm | 608 mm | 616 mm | 634 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1196 mm | 1216 mm | 1238 mm | 1260 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 688 mm | 707 mm | 734 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

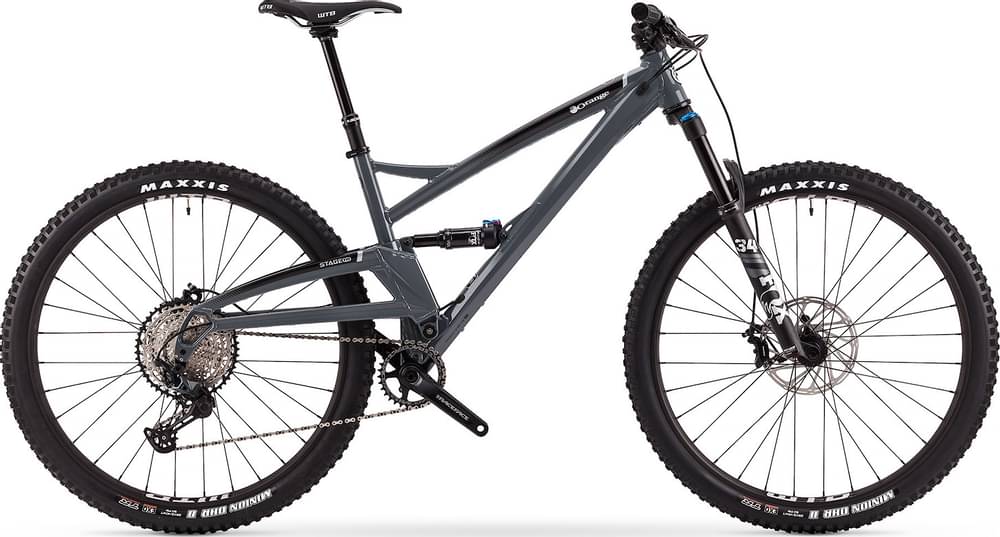

Stage EVO Pro is part of the Orange Stage model. 43 bikes variations carry this model name so far. You can easily view all of the Orange Stage bikes models from 2021, here.
Model range prices
Orange Stage EVO Pro 2021 is the most economical model, with a starting price of 4300$. Orange Stage 6 XTR 2021 on the other hand costs 7200$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 4300$. In conclusion, this bike price is 55.68% more expensive than the price of the average Trail bike.
Stage EVO Pro components
Fork
This bike has the RockShox Pike Ultimate fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT DPS Performance, with a travel distance of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Orange Stage EVO Pro 2021, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Stage EVO Pro has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Orange Stage EVO Pro includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
