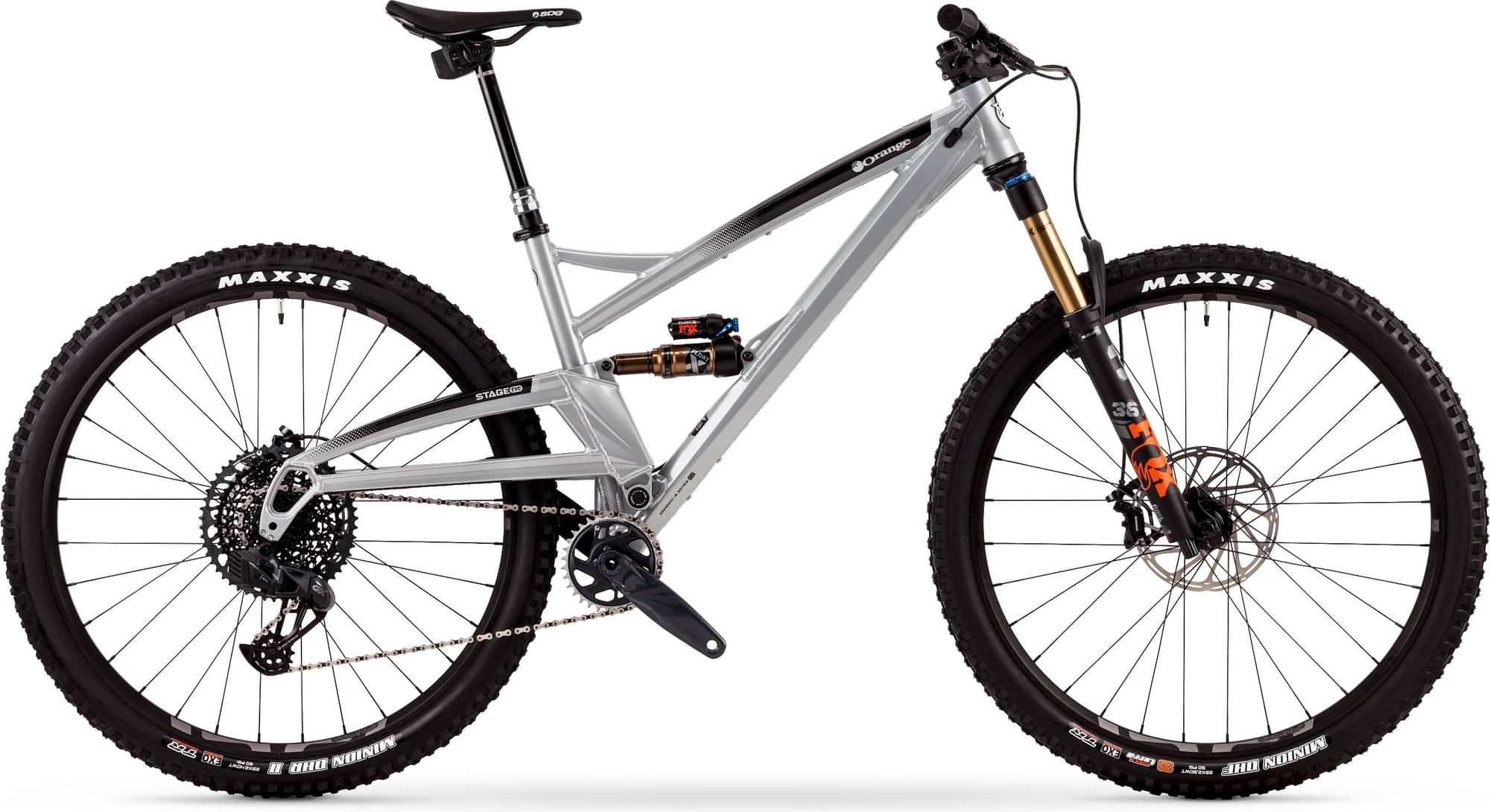

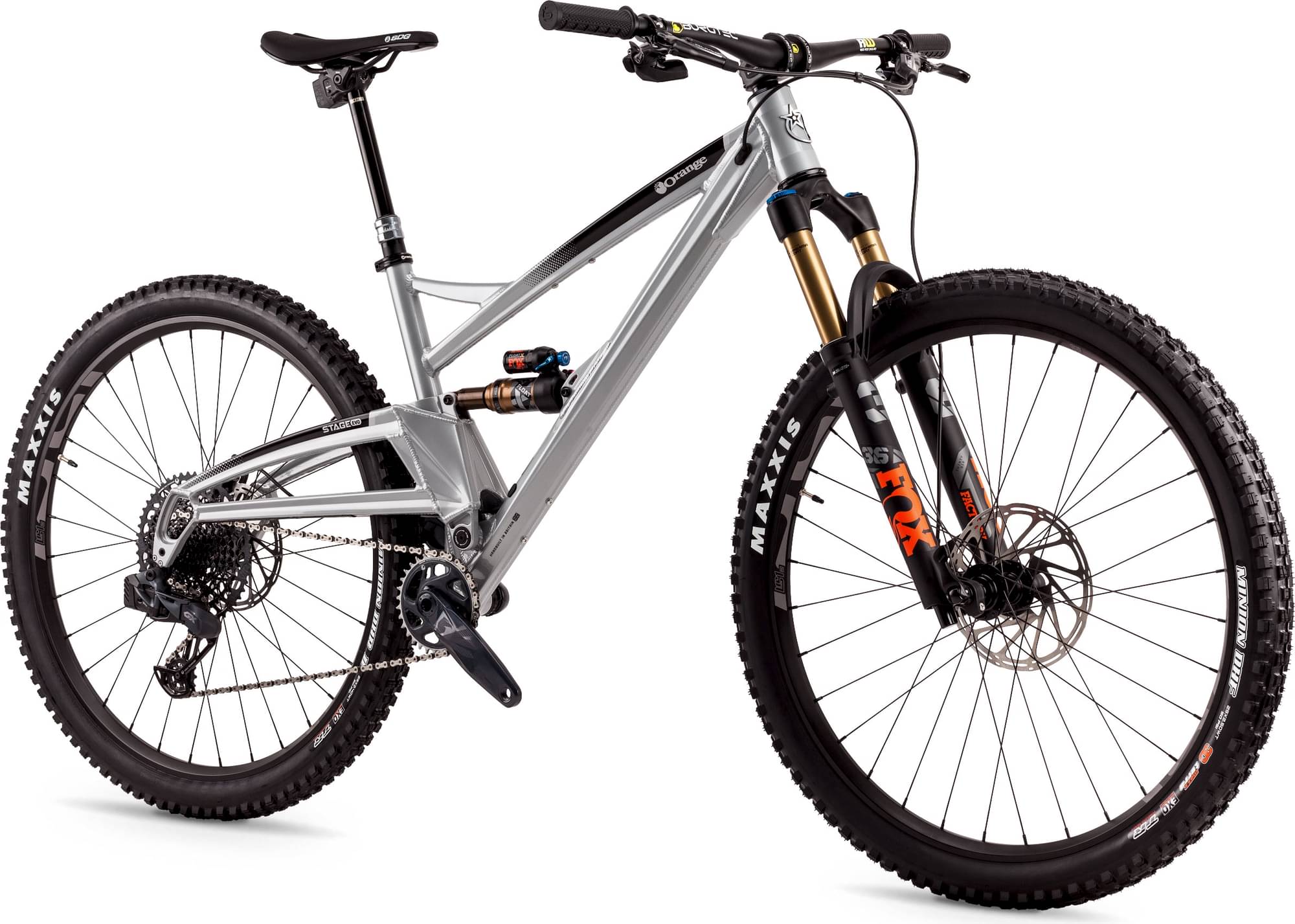

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 120.
Suspension Fork
Fox Factory 36 Float 130mm 29 (black)
Rear Shock
Fox Float X Factory 190x45
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle 12spd
Shift Levers
SRAM GX AXS Eagle
Cassette
SRAM XG 1275 10-52t Eagle
Crank
SRAM GX Eagle 32t
Bottom Bracket
SRAM DUB
Chain
SRAM NX Eagle
Wheels
Rims
E13 LG1 EN 30mm (Grey) + Hope Pro 4 (Black) 29
Tires
Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 29
Brakes
Brakes
SRAM Guide RE 200/180
Cockpit
Stem
Burgtec Enduro Black 42.5mm
Handlebar
Burgtec RideWide Enduro 800mm
Grips
Strange Grappler Lock-On
Headset
Cane Creek 49mm for Tapered Steerer
Seat
Saddle
SDG Strange Bel Air III
Seatpost
Rockshox Reverb AXS 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 760 mm | 780 mm | 802 mm | 824 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 618 mm | 618 mm | 628 mm | 636 mm |
| Reach | 438 mm | 458 mm | 476 mm | 494 mm |
| Top Tube Length | 593 mm | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 381 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1196 mm | 1216 mm | 1238 mm | 1260 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 688 mm | 707 mm | 734 mm | 760 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Stage Evo AXS completes the Orange Stage model. 51 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Orange Stage Evo Pro 2023 is the cheapest bike model and costs 5506$. Orange Stage 6 Evo AXS 2023 is the most expensive one and costs 8789$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8471$. Comparing this to the average Trail bike price, we see that the price is 206.7% higher.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Stage Evo AXS has a rear shock with a travel of 120mm. The model Fox Float X Factory 190×45 is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Stage Evo AXS 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Stage Evo AXS has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Stage Evo AXS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
