Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset XT, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 170.
Suspension Fork
Fox Factory 38 Float 170mm 29
Rear Shock
Fox Float X2 Factory 205x65
Drivetrain
Rear Derailleur
Shimano XT 12spd
Shift Levers
Shimano XT 12spd
Cassette
Shimano XT 10-51T 12spd
Crank
SRAM GX Eagle 32t
Bottom Bracket
SRAM DUB
Chain
KMC 12spd
Wheels
Rims
Stans Flow Mk4 + Hope Pro 4 (Black) 29 + 27
Tires
Maxxis Minion DHF 2.5 3c EXO+ 29 / DHR II 2.4 3c EXO+ 27.5
Brakes
Brakes
Shimano XT Trail 203/180
Cockpit
Stem
Burgtec Enduro Black 42.5mm
Handlebar
Renthal FatBar M35 800mm
Grips
Strange Grappler Lock-On
Headset
FPD 44mm / 56mm zerostack
Seat
Saddle
SDG Strange Bel Air III
Seatpost
Fox Factory Transfer 175mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 803 mm | 823 mm | 845 mm | 867 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 151 mm | 138 mm | 140 mm | 140 mm |
| Stack | 642 mm | 642 mm | 652 mm | 660 mm |
| Reach | 464 mm | 472 mm | 490 mm | 508 mm |
| Top Tube Length | 611 mm | 631 mm | 651 mm | 671 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1256 mm | 1276 mm | 1298 mm | 1320 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 712 mm | 730 mm | 756 mm | 776 mm |
| Rear Travel | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

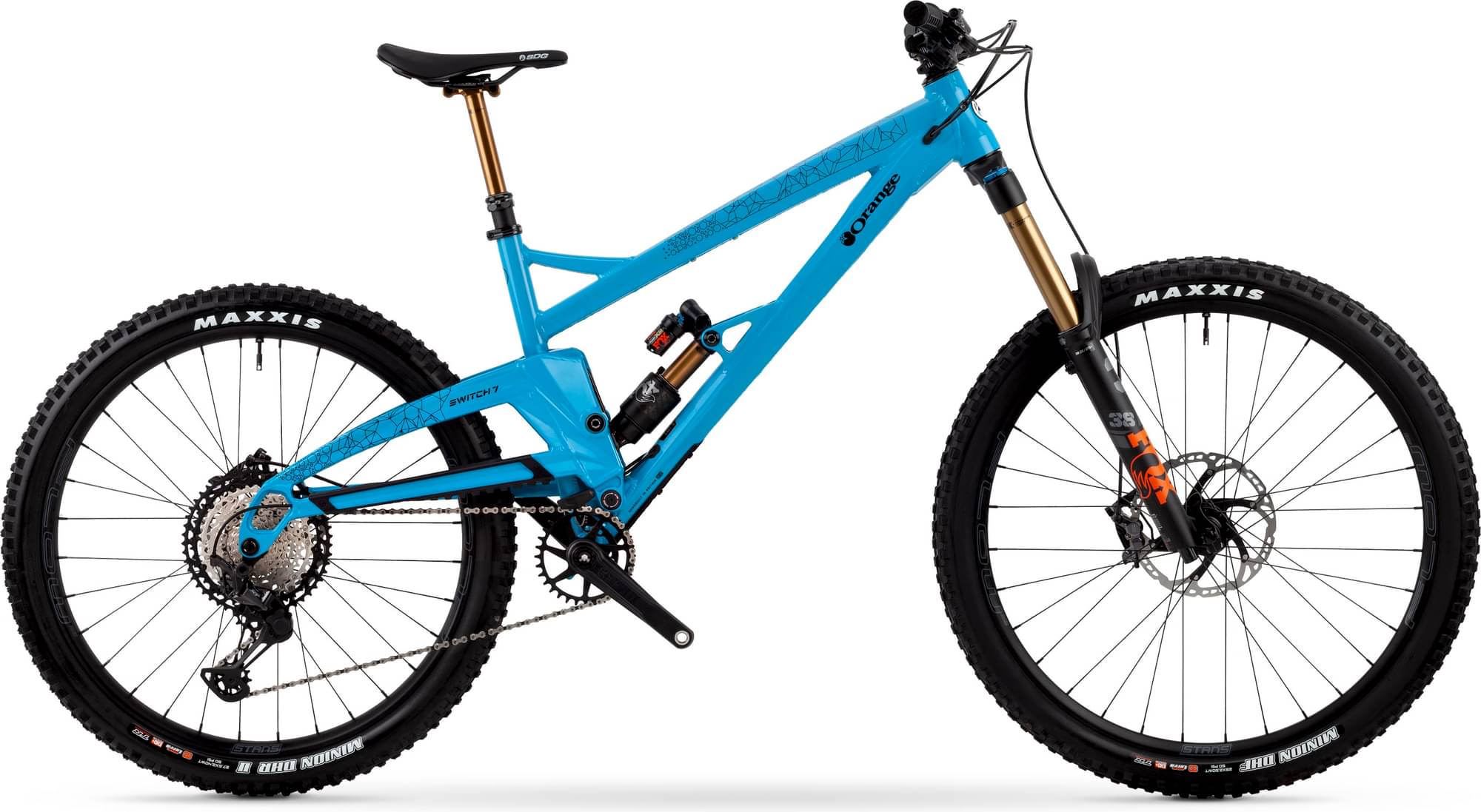

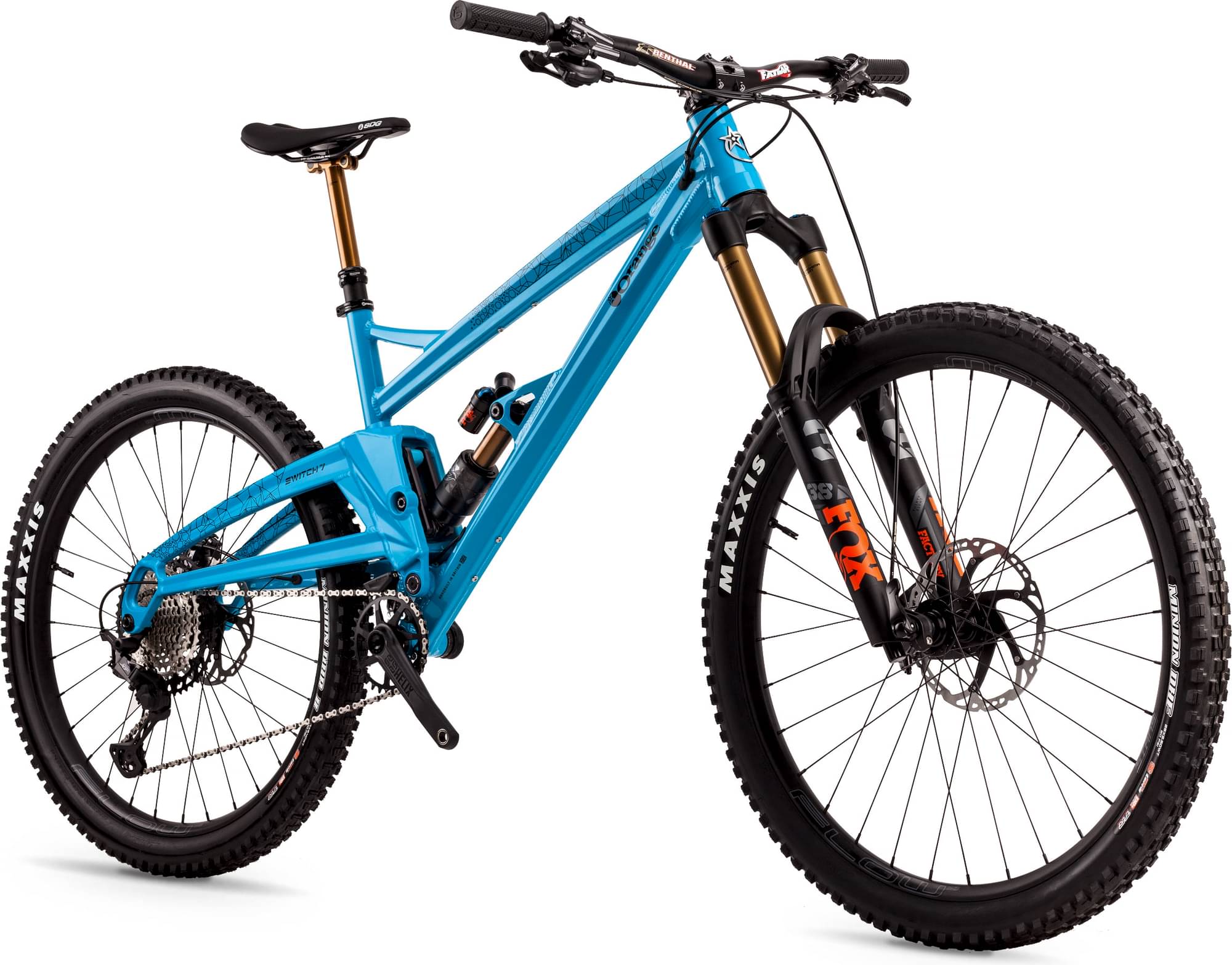

Switch 7 Factory is an Orange Switch model. Orange released 16 bikes variations of this model so far. Take a sneak peek at all Orange Switch bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Orange Switch 7 Pro 2023 has a starting price of 6883$. Orange Switch 7 Factory 2023 on the other hand is the most expensive at 8789$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 8789$. Comparing this to the average Enduro bike price, we see that the price is 144.21% higher.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float X2 Factory 205×65, with a travel distance of 170mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Switch 7 Factory model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Switch 7 Factory has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Switch 7 Factory comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Orange Switch 7 Factory includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
