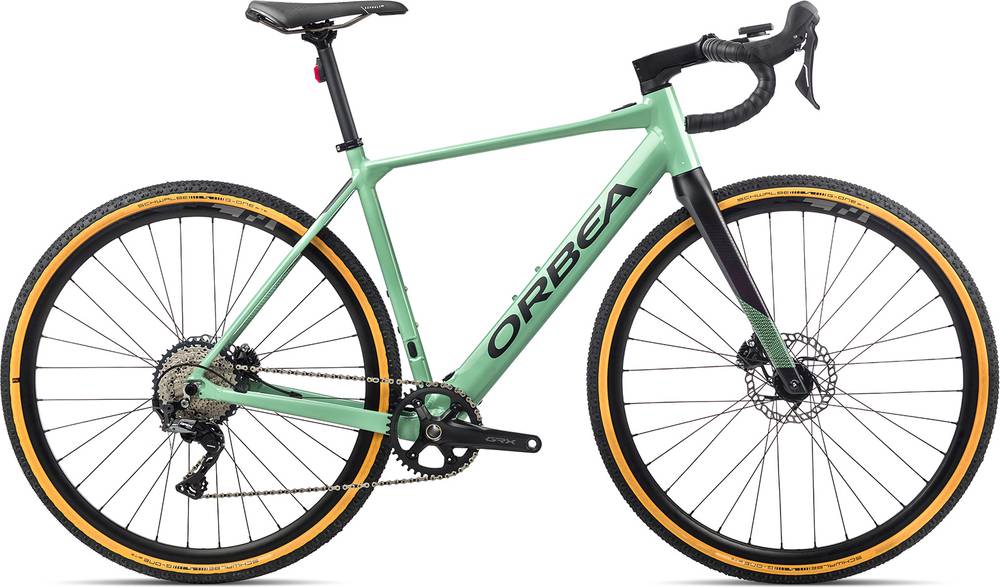

Orbea GAIN D30 1X 20mph 2021
2021 E-bike
Estimate price |
3,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A 248Wh ANT+ -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tire, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket.
Suspension Fork
Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm
Drivetrain
Rear Derailleur
Shimano RX812 GS
Shift Levers
Shimano ST-RX600
Cassette
Shimano CS-M7000 11-40t 11-Speed
Crank
Shimano GRX RX600 40t
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X11
Wheels
Rims
Ready GR
Tires
Schwalbe G-ONE Bite, 40-622, 700x38C, Performance Line RaceGuard, TLE, ADDIX Classic Skin
Brakes
Brakes
Shimano RX400 Hydraulic disc
Cockpit
Stem
OC1 31.8mm interface -6º
Handlebar
OC1 All Road, reach 80mm, drop 125mm, flare 12º
Headset
Acros Alloy 1-1/2" Internal Cable Routing
Seat
Saddle
Selle Royal Asphalt GR
Seatpost
OC 27.2 Offset 0, for integrated light
Motor & Battery
Motor
Ebikemotion X35 Plus 20mph
Battery
Ebikemotion 36V/6.9A 248Wh ANT+
Remote
OC monochrome ANT+ LEV
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.47 mm | 1.49 mm | 1.51 mm | 1.53 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 579 mm | 593 mm | 608 mm | 627 mm | 641 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 61 mm | 58 mm | 58 mm | 54 mm |
| Stack | 517 mm | 542 mm | 567 mm | 592 mm | 617 mm |
| Reach | 358 mm | 369 mm | 380 mm | 391 mm | 402 mm |
| Top Tube Length | 499 mm | 522 mm | 539 mm | 563 mm | 581 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 485 mm | 515 mm | 545 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 97 mm | 122 mm | 146 mm | 172 mm | 196 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 980 mm | 994 mm | 1009 mm | 1028 mm | 1042 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm |
| Standover Height | 744 mm | 768 mm | 795 mm | 821 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
GAIN D30 1X 20mph belongs to the Orbea E Gain model. Orbea released 78 e-bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Orbea GAIN D50 2021 is the most economical model, with a starting price of 2869$. Orbea GAIN M10i 20mph 2021 on the other hand costs 9999$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance e-bikes average price
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3699$. Comparing the average cost of an Endurance e-bike to this one, you will see that GAIN D30 1X 20mph price is 2.73% lower.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on GAIN D30 1X 20mph are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Orbea GAIN D30 1X 20mph e-bike has 5 sizes, in the range of 150 cm – 200 cm (4.92 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
