Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Hydro, Aluminum 6000 series, Orbea Tube Shaping, Flat Mount Disc Brakes, 135x9 QR, Carrier and Mudguards compatible, max 700x40C, Inner Cable routing, Ebikemotion X35 specific, integrated battery, in
Suspension Fork
Speed 400mm Carbon Flat mount
Drivetrain
Rear Derailleur
Shimano 105 R7000 GS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano ST-7020
Cassette
Shimano 105 R7000 11-32t 11-Speed
Crank
Shimano 105 R7000 34x50t
Chain
KMC e11 Turbo Silver
Pedals
N/A
Wheels
Rims
Ready GR
Tires
Hutchinson Fusion 5 All Season TLR 700x28
Brakes
Brakes
Shimano R7070 Hydraulic Disc
Cockpit
Stem
Orbea OC-III
Handlebar
FSA Gossamer Compact
Headset
1-1/8" Semi-Integrated
Seat
Saddle
Prologo Kappa Space STN size 147mm
Seatpost
FSA SL-K SB20 27.2x350mm Di2 compatible
Motor & Battery
Motor
Ebikemotion X35
Battery
Ebikemotion 36V/6.9A
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.47 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 283 mm | 283 mm | 285 mm |
| Front Center | 596 mm | 602 mm | 616 mm | 630 mm | 645 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 63 mm | 57 mm | 58 mm | 59 mm | 55 mm |
| Stack | 527 mm | 547 mm | 567 mm | 592 mm | 617 mm |
| Reach | 370 mm | 379 mm | 387 mm | 394 mm | 402 mm |
| Top Tube Length | 514 mm | 538 mm | 552 mm | 566 mm | 587 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 555 mm | 585 mm | 610 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72.3 ° |
| Head Tube Length | 109 mm | 127 mm | 150 mm | 176 mm | 203 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1008 mm | 1014 mm | 1029 mm | 1043 mm | 1059 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 68 mm | 68 mm | 66 mm |
| Standover Height | 746 mm | 774 mm | 807 mm | 821 mm | 868 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | cm |
Model Overview

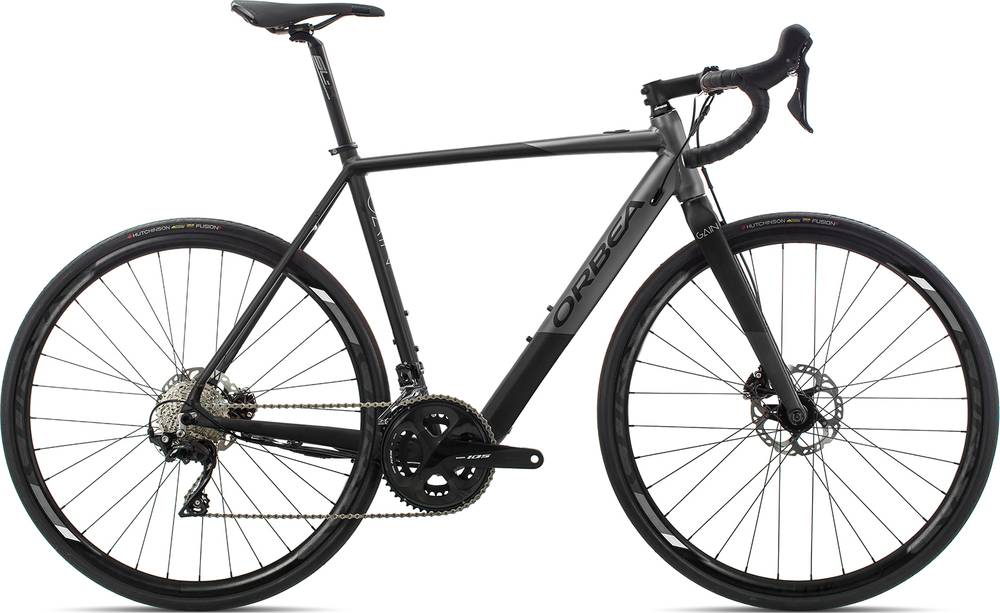

GAIN D30 USA is an Orbea E Gain model. There are 78 e-bikes that carry this model name. You can easily view all of the Orbea E Gain e-bikes models from 2019, here.
Model range prices
The most economical model, the Orbea GAIN F30 USA 2019 has a starting price of 2499$. Orbea GAIN M20i USA 2019 on the other hand is the most expensive at 5799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance e-bikes average price
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, this doesn’t mean that if you spend less money on an Endurance e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2019 and its price was 3299$. Doing a quick comparison, we notice that GAIN D30 USA price is 15.19% smaller than the average cost of an Endurance e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
GAIN D30 USA components
Fork material
GAIN D30 USA has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the GAIN D30 USA model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GAIN D30 USA comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
